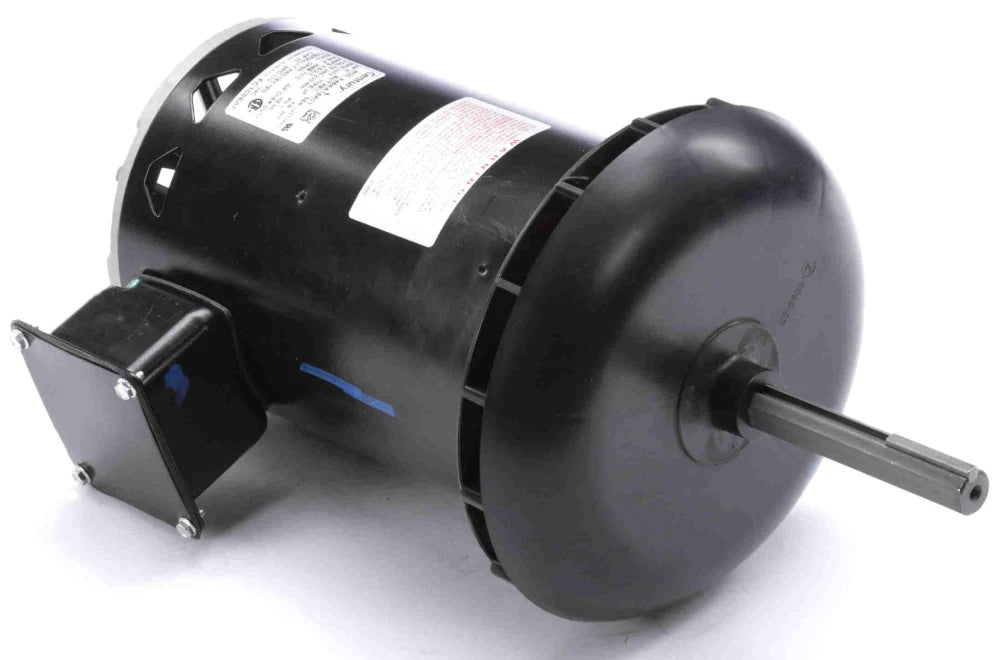

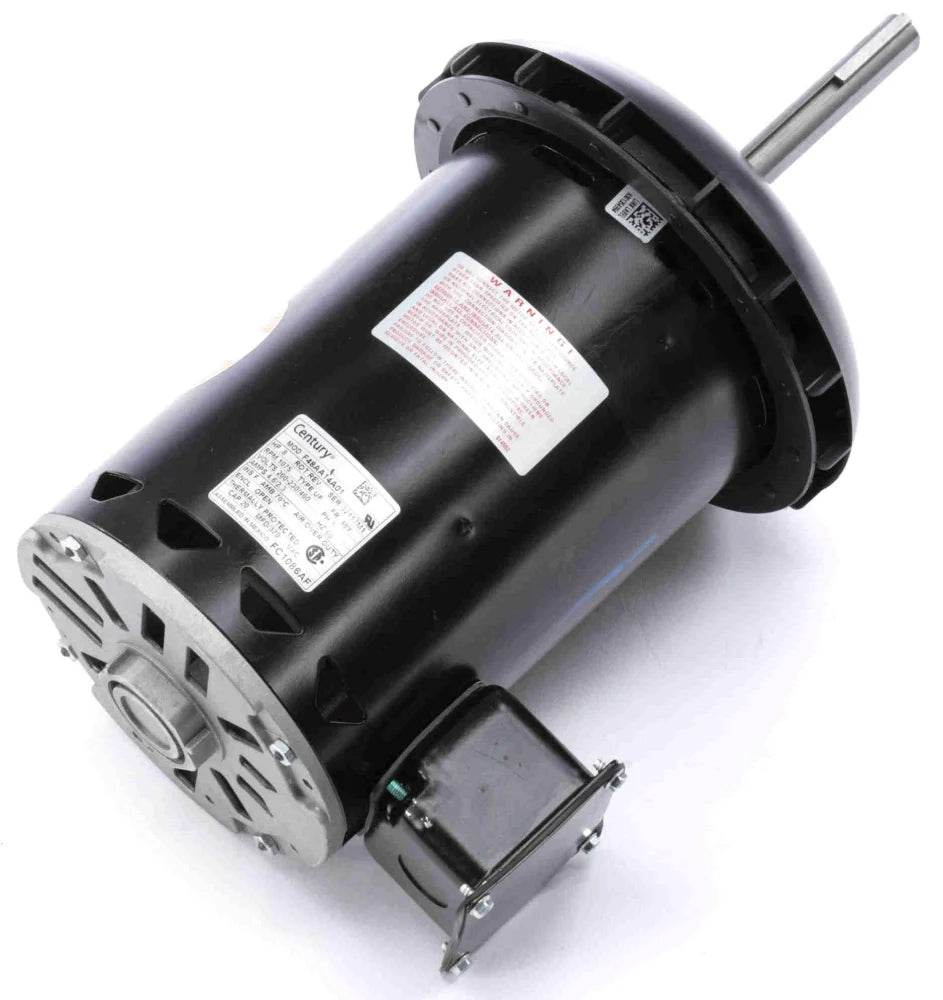

Regal Rexnord - Century Motors FC1086AF 0.8 HP, 200 to 230/460 VAC 60 Hz 1-Phase Condenser Fan Motor

Product Description

The Regal Rexnord - Century Motors FC1086AF is a condenser fan motor with a power rating of 0.8 HP. It operates at 200 to 230/460 volts in a single-phase system. This motor has a speed rating of 1075 RPM and is designed for durability and efficiency in HVAC applications.

• Voltage: 200 to 230/460 VAC
• Amperage: 4.6/2.3 A
• Reversible with a 6-pole configuration

Product Highlights

This motor features a rolled steel frame and a round belly band mount, making it suitable for various installation setups. Its low-profile design fits easily into tight spaces.

Product Information

Standard Information

• Manufacturer: Regal Rexnord - Century Motors
• UPC: 0786674020369

Technical Specifications

• Power Rating: 0.8 HP
• Enclosure Type: Open Air-Over
• NEMA Frame Size: 48Y
• Insulation Class: F
• Speed Rating: 1075 RPM
• Weight: 26 lb
• Mounting Type: Round Belly Band
• Ambient Temperature Rating: 70°C
