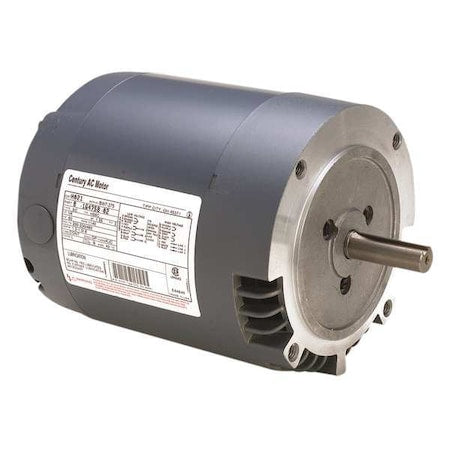

Century F395 Motor Split Ph 1/12 HP 850 115V 56CZ ODP

Product Description

The Century F395 Motor is a single-phase, split-phase blower motor with an output of 1/12 horsepower. It operates at a nominal speed of 850 RPM and uses 115V AC. This model fits a 56CZ frame and features an open drip-proof design.

• 1/12 horsepower motor
• 850 RPM speed
• 115V AC voltage

Product Highlights

The Century F395 Motor is designed for optimal performance in commercial and industrial ventilation systems. Its continuous duty cycle and auto thermal protection make it reliable for long-term use.

Product Information

Standard Information

• HP: 1/12
• Hz: 60 Hz

Technical Specifications

• Duty: Continuous
• Item: C-Frame Motor
• Frame: 56CZ
• Phase: Single
• Weight: 24 lb
• Voltage: 115V AC
• Mounting: Face
• Body Dia.: 6 1/2 in
• RPM Range: 0-1,000
• Standards: CSA Certified, UL Recognized
• Duty Cycle: Continuous
• Ins. Class: B
• Shaft Dia.: 5/8 in
• Application: C Face Vent
• Motor Design: Split-Phase
• Shaft Length: 2 1/2 in
• Nameplate RPM: 850
• No. of Speeds: 1
• Stud Quantity: 4
• Usable @ 200V: No
• Usable @ 208V: No
• Full Load Amps: 2.1
• Motor Bearings: Ball
• Mounting Holes: (4) 3/8 in-16
• Overall Length: 11 1/16 in
• Number of Shafts: 1
• Length Less Shaft: 6 5/8 in
• Motor Application: HVAC/R
• Capacitor Required: No
• Max. Ambient Temp.: 40 Degrees C
• Motor Shaft Design: Keyed
• Motor Mounting Type: Face
• Motor Frame Material: Steel
• Motor Service Factor: 1.4
• Motor Shaft Rotation: CW/CCW
• Motor Sub Application: Aeration Fan
• Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
• Motor Enclosure Design: Open Dripproof
• Motor Mounting Position: All Angle
• Motor Thermal Protection: Auto
• Country of Origin: Mexico
