Century Motors F266 Oven Motor 1/3 HP 1800 RPM

Product Description

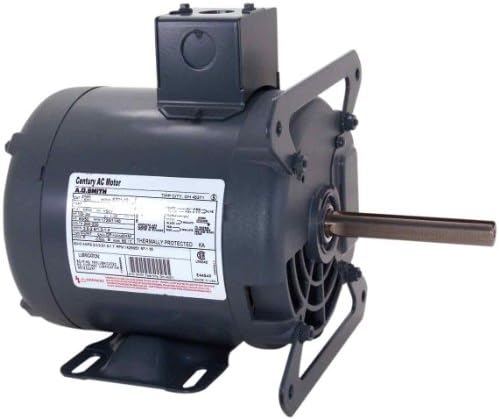

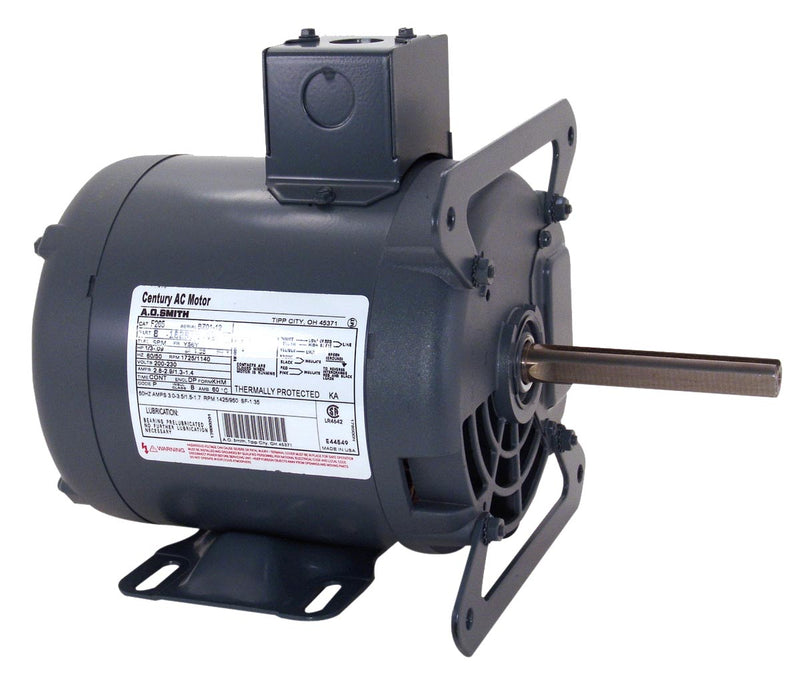

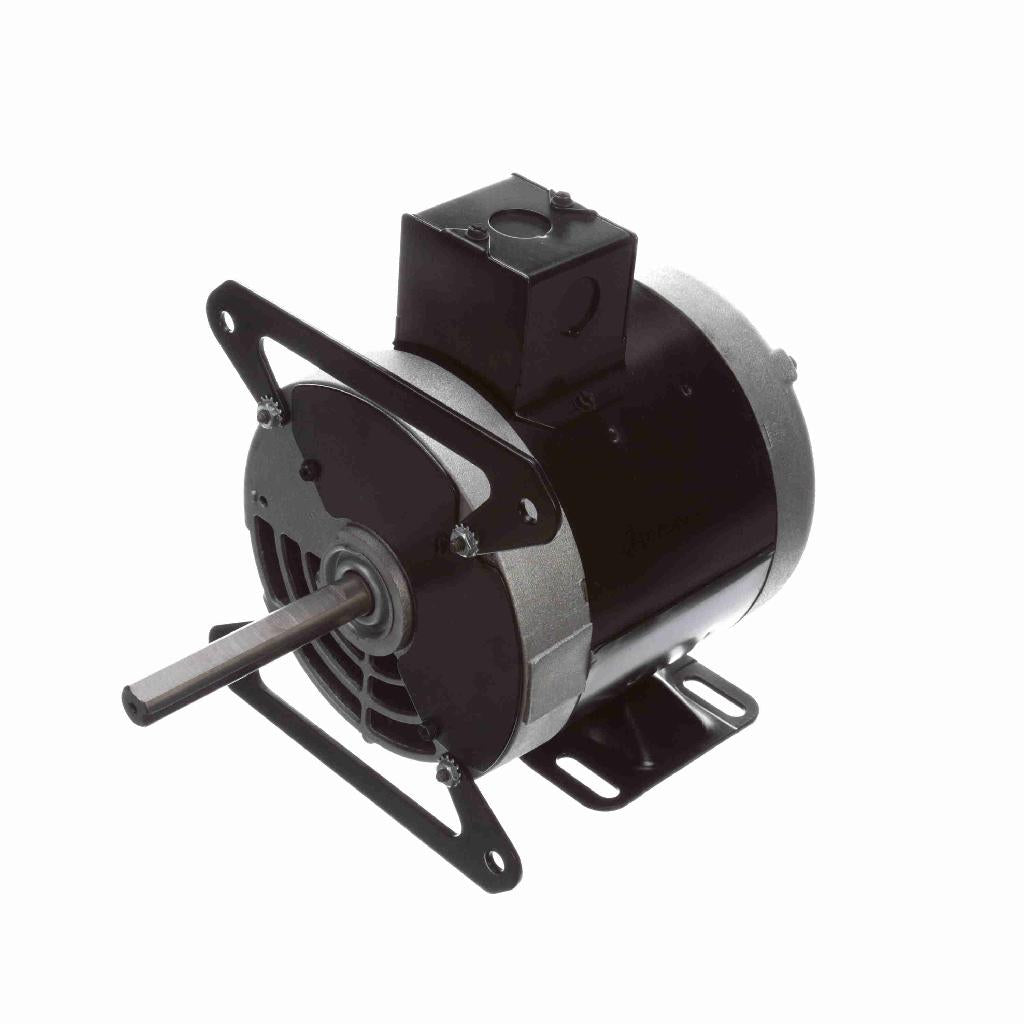

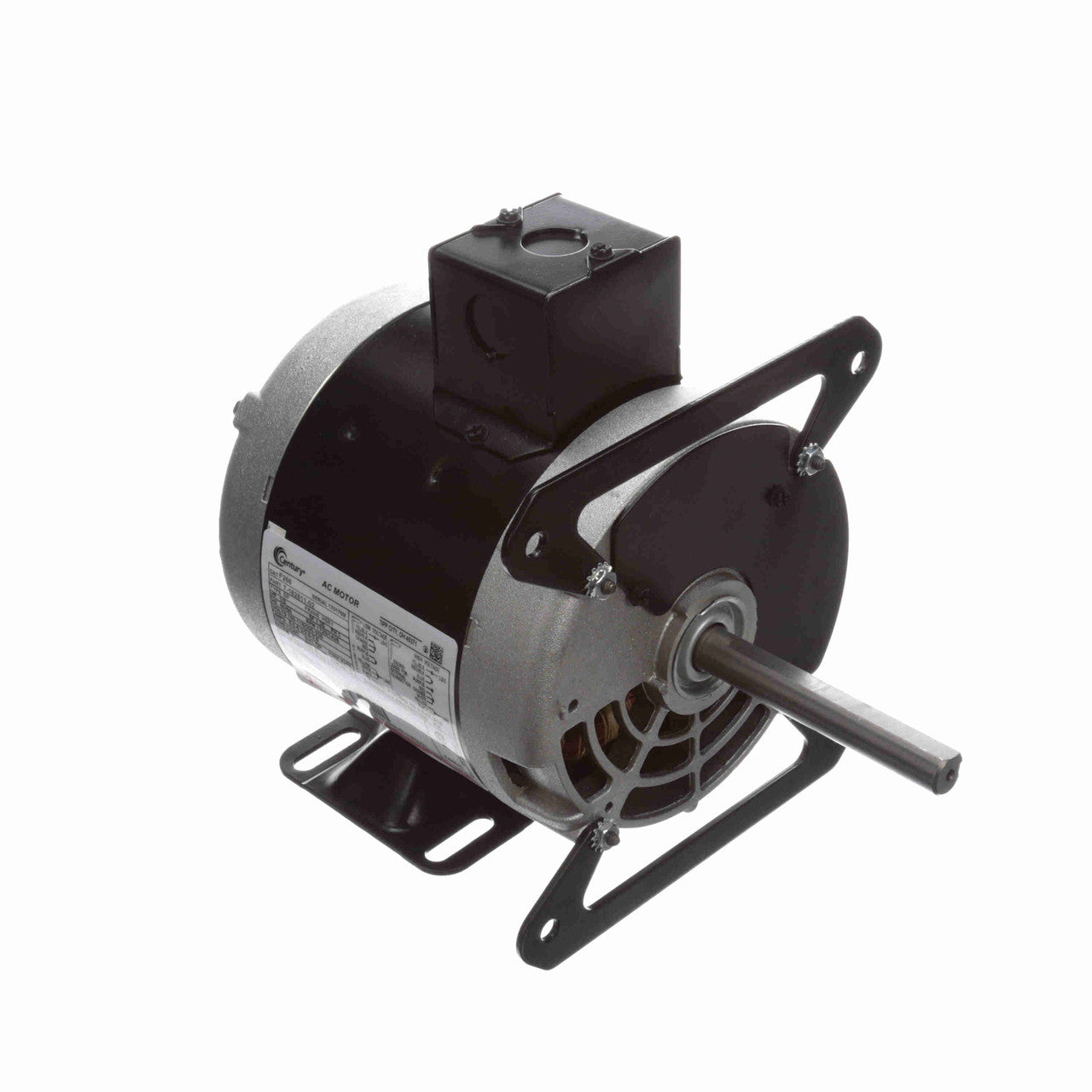

The CENTURY MOTORS F266 is an oven motor. This 1/3 HP motor operates at 1800 RPM and is designed for single-phase power. It features a split-phase electrical type and is suitable for applications requiring reversible rotation. The motor is thermally protected and has a rigid base for mounting.

• 6-1/2-Inch Frame Diameter
• Double sealed ball bearings
• Automatic reset overload protector

Product Highlights

This motor is ideal for convection ovens and pizza ovens. It features a reversible rotation and is thermally protected.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: F266
• Country of Origin: Mexico

Technical Specifications

• MPN: F266
• Brand: Century
• Speed: 1800 RPM
• Voltage: 100-115/200-230 V
• Horsepower: 0.33 Horsepower
• Manufacturer: Century
• UPC: 786674019868
• Global Trade Identification Number: 00786674019868
• Item Package Quantity: 1
• Phase: 1
• Output HP: 1/3 Hp
• Output KW: 0.25 kW
• Service Factor: 1.35
• Frame: H56Y
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 60 °C
• Frequency: 60 Hz
• Current: 5.0-5.2/2.5-2.6 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Split Phase, Induction Run, Single Or Dual Voltage
• Starting Method: Across The Line
• Poles: 4
• Rotation: Reversible Clockwise
• Mounting: Rigid Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 11.62 in
• Frame Length: 4.13 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 4 in
• Nameplate RPM: 1800
• Bearings: Ball
• Base: Rigid
• Shaft Number: 1
• "C" Dim: 11.6
• Protection: Auto
• Cooling: Ambient
• AC Phase: Single Phase
• Reversible/Non-Reversible: Reversible
• AC Frequency Rating: 60 Hz
• Base RPM: 1800
• AC Motor Type: Induction/Asynchronous
• Model: F266
• Enclosure Type: ODP (Open Drip-Proof)
