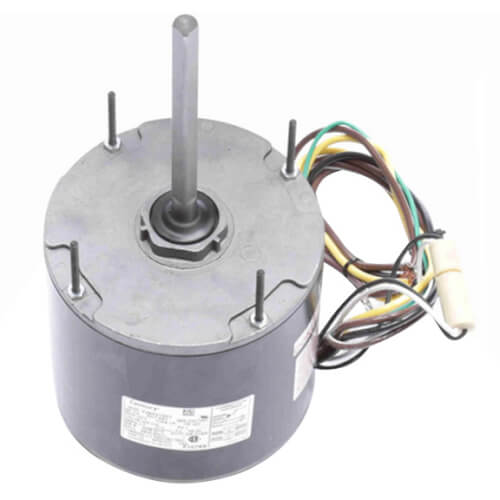

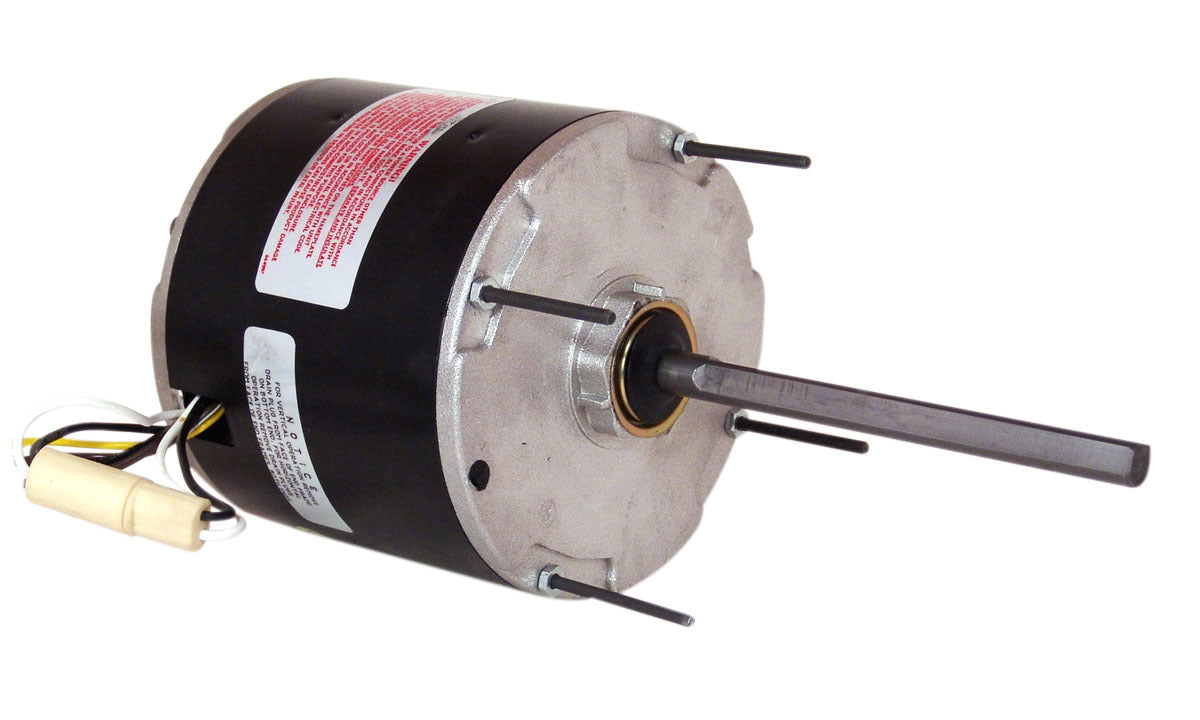

Regal Rexnord F1076S Industrial Motor 208-230V 3/4HP 1075RPM

Product Description

The Regal Rexnord Century Motors F1076S is a reliable industrial motor designed for various applications. It operates on 208-230V and delivers 3/4HP with a speed of 1075RPM. This motor is suitable for demanding environments due to its durable construction.

• Operates on 208-230V single-phase
• 3/4 horsepower output
• 1075 RPM speed

Product Highlights

The F1076S features rugged construction, easy installation with compact design, and efficient operation. It is ideal for industrial environments and provides reliable power.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• Item Number: F1076S

Technical Specifications

• Voltage: 208-230V
• Phase: Single
• Horsepower: 3/4HP
• Speed: 1075RPM
• Frame: 48Y
• Enclosure: Semi-Enclosed
• Amperage: 3.5
• Mounting Type: Extended Studs
• Bearings: Ball
• Shaft Diameter: 0.500
• Shaft Extension: 6.400
• Insulation Class: B
• Rotation: Reversible
• Material: Rolled Steel
• Ambient Temperature: 60°C
