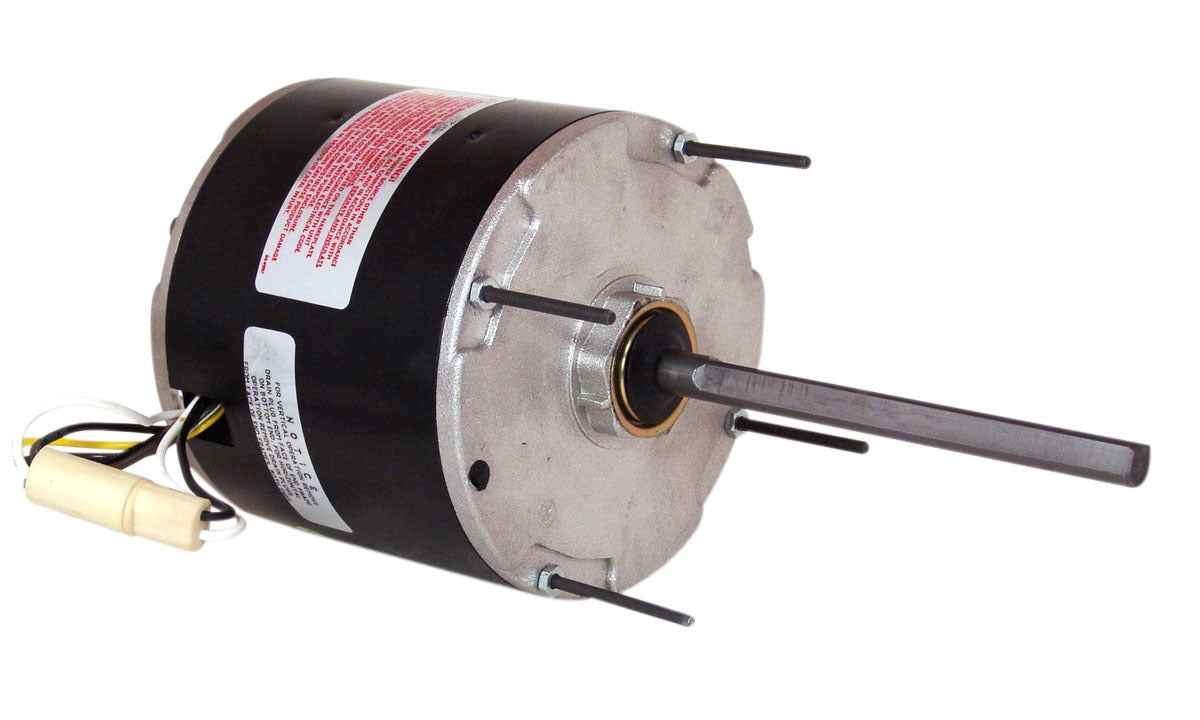

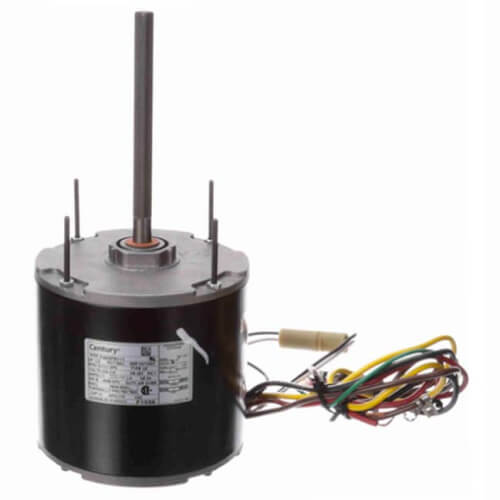

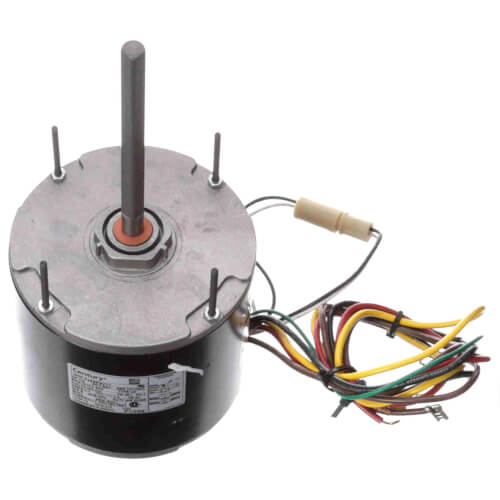

Century F1056 Condenser Fan Motor 208-230V 1075 RPM 1/2 HP

Product Description

The Century F1056 Condenser Fan Motor is designed for HVAC systems, operating at 208-230 volts and 1075 RPM. This 1/2 HP motor fits a 48Y frame and has a semi-enclosed enclosure. Ideal for enhanced performance and reliability in HVAC applications.

• Energy efficient
• All angle mount
• Permanent split capacitor

Product Highlights

The Century F1056 Condenser Fan Motor offers energy efficiency and durability, making it suitable for various HVAC systems. It supports reversible rotation, ball bearings, and extended studs for easy mounting.

Product Information

Standard Information

• Brand: Century
• MPN: F1056
• Category: Condenser Fan Motor
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: PSC
• Horse Power: 1/2
• RPM: 1075
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: Semi-Enclosed
• Phase: Single
• Voltage: 208-230
• Rotation: Reversible
• Overload Protector: Automatic
• Material: Rolled Steel
• Bearings Type: Ball
• Bearings SE Type: Ball
• Bearings OSE Type: Ball
• Mounting Type: Extended Studs
• Orientation: Horizontal
• Amperage: 2.5
• Shaft Type: Double Flat
• Shaft Extension: 6.4 inches
• Shaft Diameter: 0.5 inches
• Insulation Class: B
• Frequency: 60 Hz
• Hertz: 60
• Poles: 6
• Speeds: 2
• Duty: Air Over
