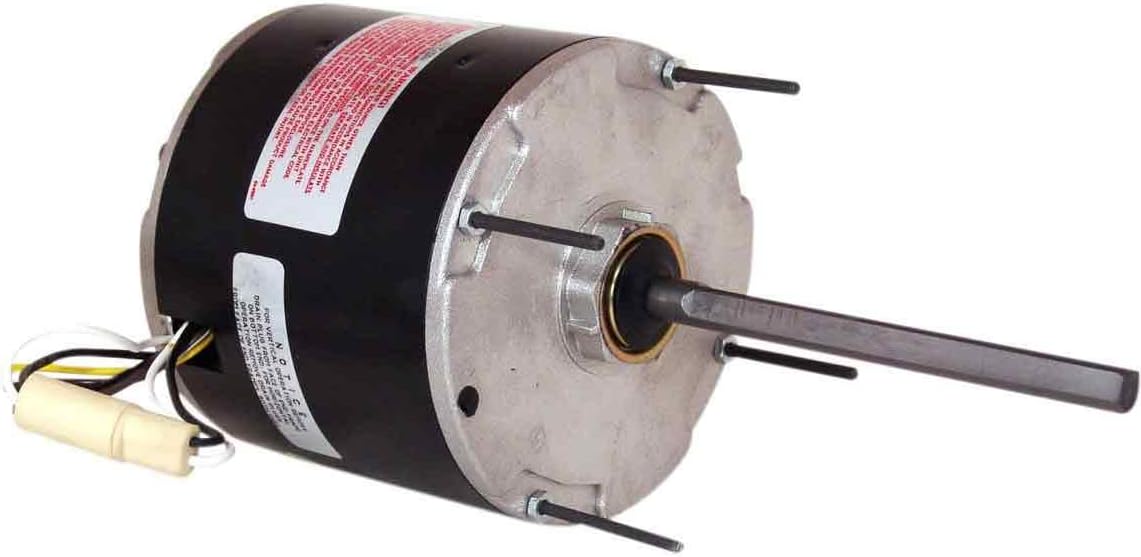

Century F1036 Condenser, 5.6-Inch Frame Diameter, 1/3-HP, 1075-RPM, 208-230-Volt, 1.7-Amp, Sleeve Bearing Motor

Product Description

The Century F1036 is a single-phase sleeve bearing motor with a frame diameter of 5.6 inches and rated at 1/3 horsepower. Operating at 1075 RPM and compatible with voltages of 208 to 230, this motor is designed for cooling applications and general-purpose tasks.

• Energy-efficient permanent split capacitor design
• Features reversible rotation for versatile setup
• Built with auto overload protection for safety

Product Highlights

This motor offers a compact design, making it ideal for tight spaces and various installations, including air conditioning systems and fans.

Product Information

Standard Information

• Voltage: 208-230 Volts
• Horsepower: 1/3 HP
• Speed: 1075 RPM
• Amperage: 1.7 Amps
• Insulation Class: B
• Enclosure: Semi-Enclosed
• Bearings: Sleeve Bearing

Technical Specifications

• Frame Size: 48Y
• Mounting Type: Extended Studs
• Ambient Temperature: 60 Degrees Celsius
• Shaft Type: Double Flat
• Shaft Diameter: 0.500 Inches
• Operating Duty: Air Over
• Number of Poles: 6
