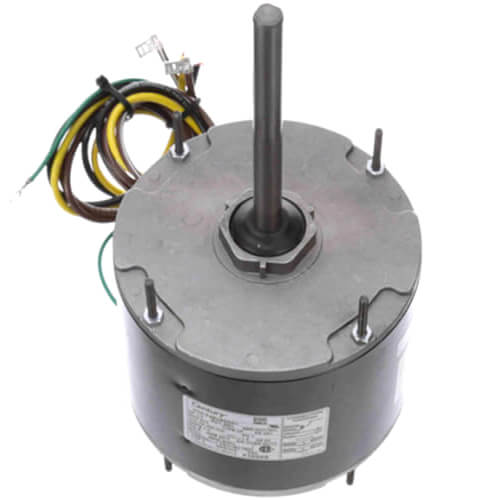

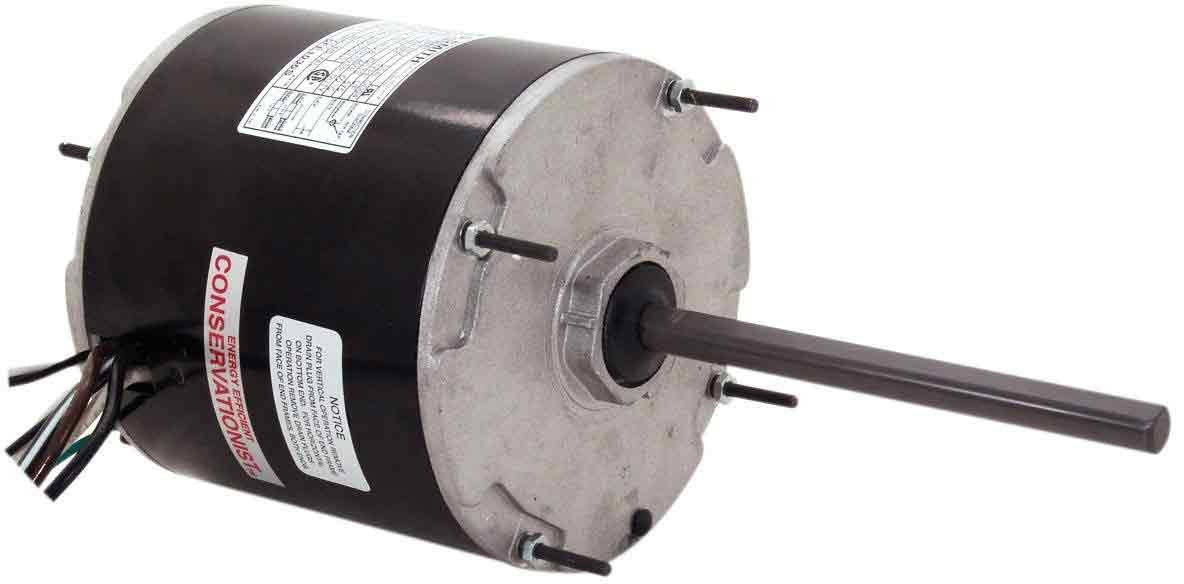

Century F1028S Condenser 1/4-HP 5.6-Inch Frame Diameter

Product Description

The Century F1028S is a single-phase, permanent split capacitor motor designed for use in various applications. Its sleek design features a frame diameter of 5.6 inches and operates at a power of one-fourth horsepower. The motor is rated at eight hundred twenty-five RPM and works with voltages of two hundred eight to two hundred thirty. This motor's reversible rotation capability allows for versatile installation options.

• Frame diameter of 5.6 inches
• Power rating of 1/4 HP
• Efficient operation at 825 RPM

Product Highlights

The Century F1028S motor provides reliable performance and quality for HVAC systems. It features an automatic overload protection for safety and includes extended through bolts for easy installation. This motor is ideal for airflow applications, making it a great choice for contractors and HVAC technicians.

Product Information

Standard Information

• Manufacturer: Century
• Product Group: Home Improvement

Technical Specifications

• Voltage: 208V / 230V
• Amperage: 1.5
• Frame Size: 48Y
• Insulation Class: B
• Max Ambient Temp: 140°F
• RPM: 825
• Weight: 14 lbs
• Type: Ball Bearing
