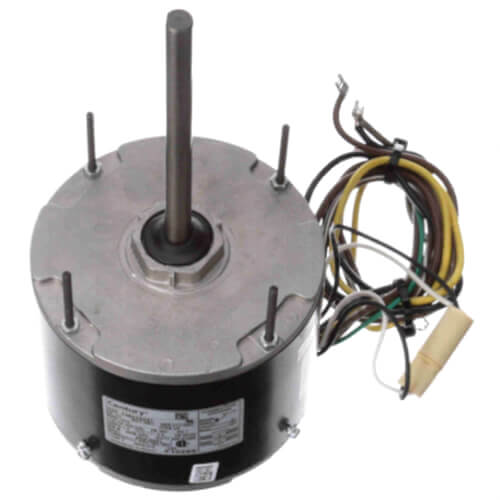

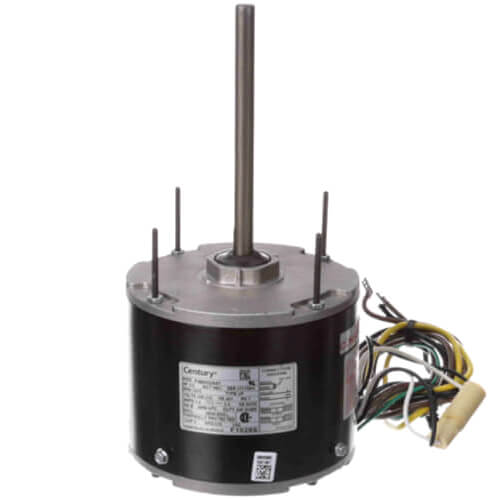

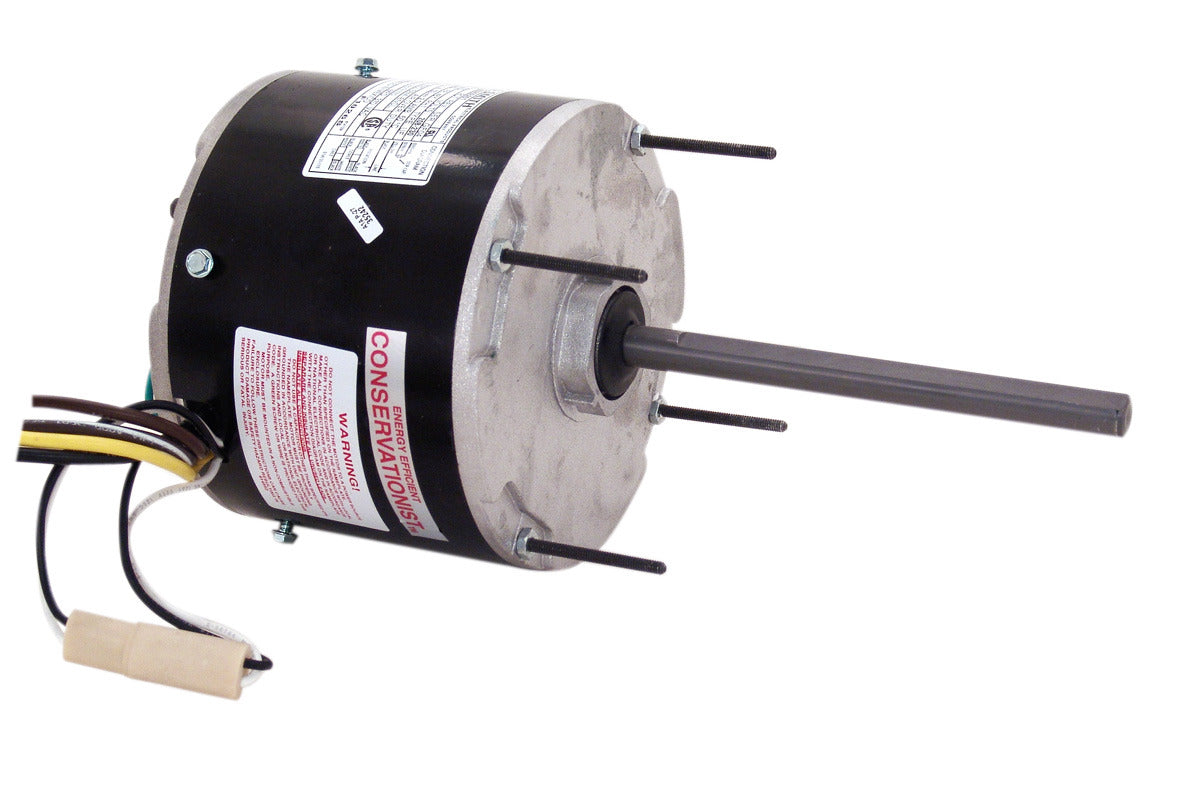

Century F1026S Condenser Fan Motor 1/4 HP 5-5/8 Inch Outdoor Ball Bearing Motor

Product Description

The Century F1026S is a condenser fan motor designed for HVAC applications. This motor operates at a power of one-fourth horsepower and features a voltage rating of two hundred eight to two hundred thirty volts. The motor runs at a speed of one thousand seventy-five RPM and is suitable for various air handling systems.

• Single-phase operation with automatic overload protection.
• Reversible rotation allows for flexible installation.
• Constructed with rolled steel, enhancing durability.

Product Highlights

This motor is built for robust performance and efficiency in outdoor applications.

Product Information

Standard Information

• Electrical Type: PSC
• Phase: Single
• Overload Protector: Auto
• Insulation Class: B

Technical Specifications

• Horsepower: 1/4 HP
• Speed: 1075 RPM
• Frame Size: 48Y
• Diameter: 5.6 inches
• Enclosure: Semi-enclosed
• Voltage: 208-230 volts
• Amperage: 1.4
• Shaft Diameter: 0.500 inches
