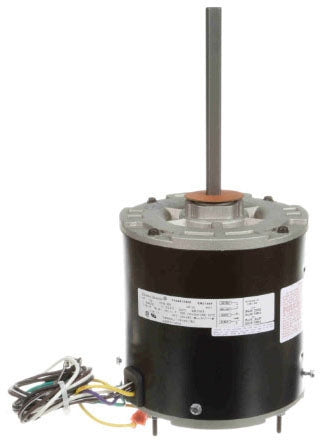

Regal Rexnord - Century Motors EM3746F Condenser Fan Motor 1/2 HP 208-230 Volt Single-Phase 825 RPM

Product Description

The Regal Rexnord - Century Motors EM3746F Condenser Fan Motor is a robust and durable motor designed for various industrial and HVAC applications. This motor offers reliable performance and extended operational life.

• 1/2 HP, 208-230 Volt
• Single-phase motor
• 825 RPM speed

Product Highlights

This motor is suitable for integration with a wide range of equipment and systems, ensuring smooth and efficient operation.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• MPN: EM3746F
• UPC: 78667406892
• UNSPSC: 26101105
• Weight: 18 Pound

Technical Specifications

• Power Rating: 1/2 HP
• Voltage Rating: 208-230 Volt AC Single-Phase
• Frequency Rating: 60 Hertz
• FLA: 2.2 to 2.5 Amp
• Speed Rating: 825 RPM
• NEMA Frame Size: 48Y
• Insulation Class: F
• Frame Material: Rolled Steel
• Mounting: Extended Stud
• Approval: UL, CSA
• Type: Permanent Split Capacitor, Induction Run
• Shaft Type: Flat
• Orientation: Any
• Bearing Type: Ball (Drive End/Opposite Drive End)
• Number of Poles: 8
• Size: 5.6 Inch Diameter x 12.21 Inch Length
• Frame Length: 5.12 Inch
• Shaft Size: 0.5 Inch Diameter x 6 Inch Length (Extension)
• Ambient Temperature Rating: 70 Degrees Celsius
• Includes: 36 Inch Lead
