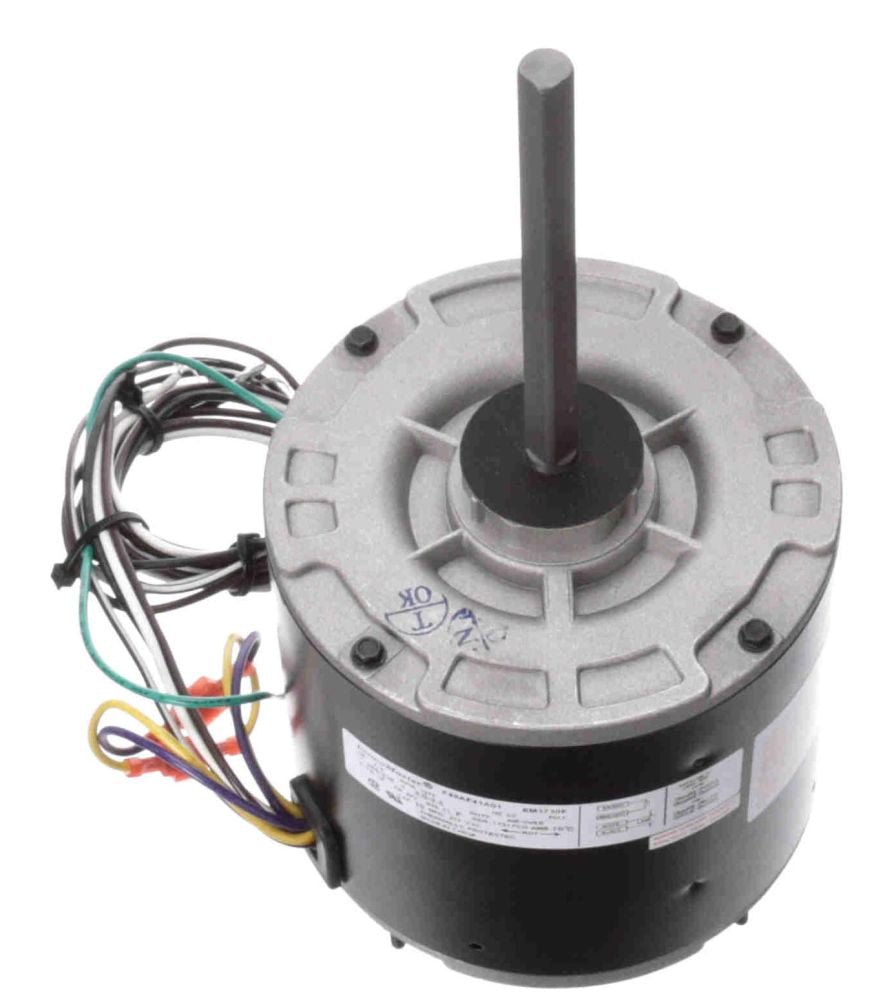

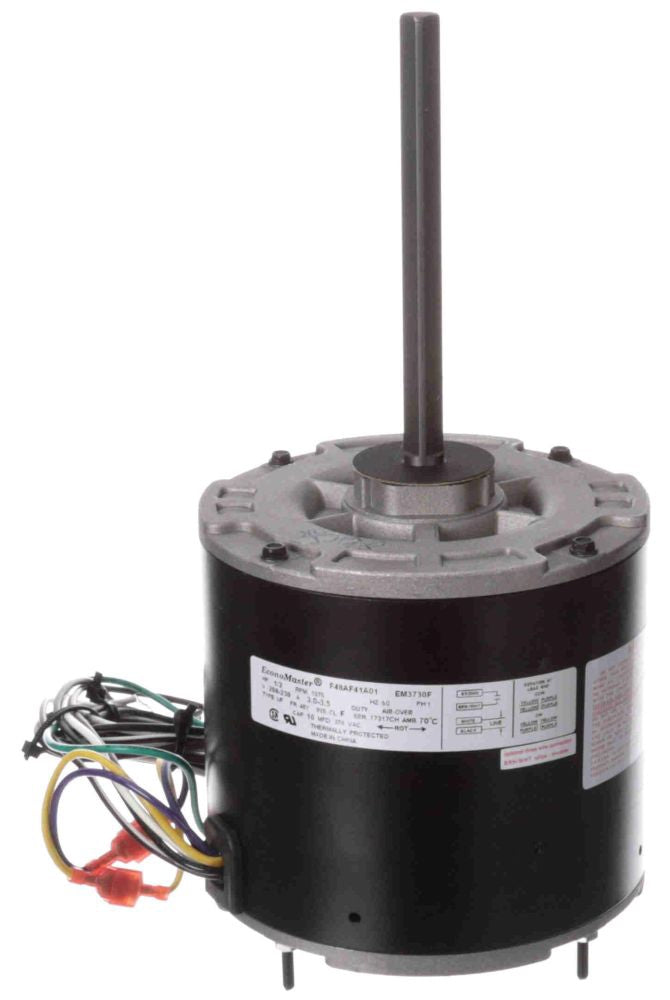

Century EM3730F Condenser Fan Motor 1/2 HP 208 to 230 VAC 60 Hz 3 to 3.5 A 6-Pole

Product Description

The Century EM3730F is a condenser fan motor designed for HVAC applications. It features a power rating of one half horsepower and operates at a voltage range of two hundred eight to two hundred thirty volts alternating current, one phase.

• Power Rating: 1/2 HP
• Speed: 1075 RPM
• Reversible motor design

Product Highlights

This motor is suitable for various applications where high efficiency is required. It is built with a rolled steel frame and designed with a totally enclosed air-over enclosure type, making it ideal for challenging environments.

Product Information

Standard Information

• Manufacturer: Century Motors
• Approval: UL, CSA

Technical Specifications

• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 3 to 3.5 Amp
• Speed Rating: 1075 RPM
• Reversible: Yes
• NEMA Frame Size: 48Y
• Insulation Class: F
• Frame Material: Rolled Steel
• Mounting Type: Extended Stud
• Weight: 16 Pound
• Shaft Type: Flat
• Number of Poles: 6
• Service Factor: 1
• Ambient Temperature Rating: 70 Deg C
