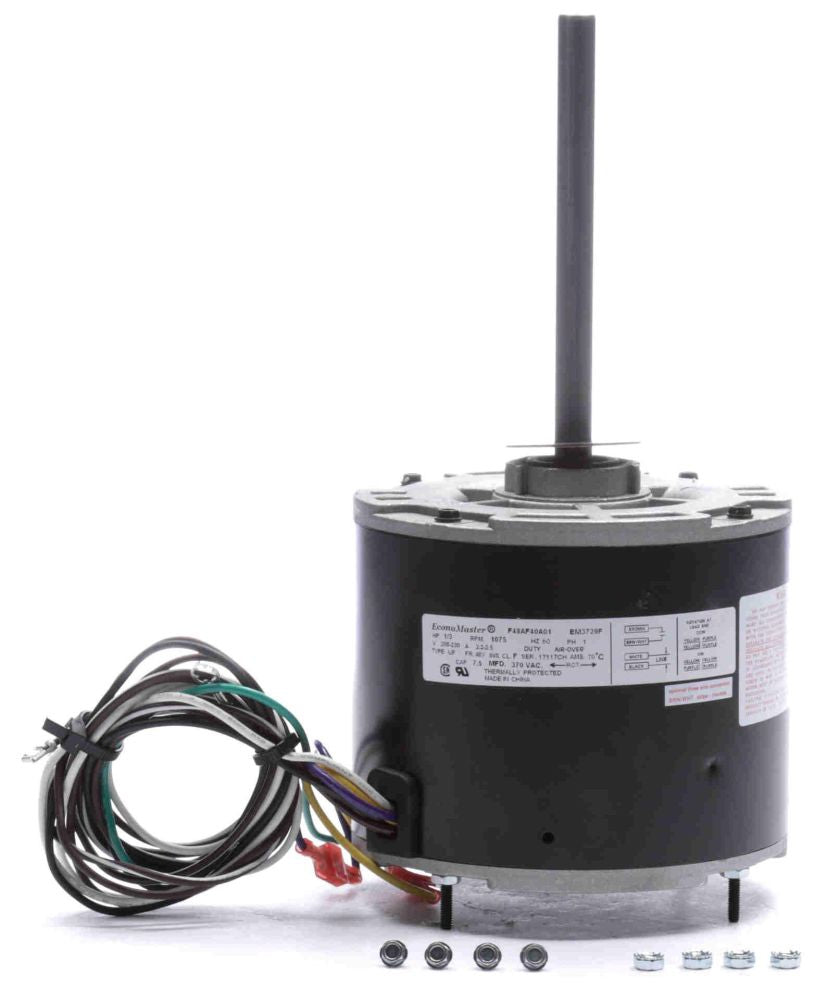

Century EM3729F Condenser Fan Motor 1/3 HP 208 to 230 VAC 60 Hz

Product Description

The Century EM3729F is a condenser fan motor with a power rating of one-third horsepower. It operates on a voltage range of two hundred eight to two hundred thirty volts alternating current and is designed for single-phase use. This motor is built to run at a speed of one thousand seventy-five revolutions per minute and features an extended stud mount.

• Rated for ambient temperatures up to seventy degrees Celsius.
• Includes a flat shaft and is reversible.
• Constructed with a rolled steel frame and equipped with ball bearings.

Product Highlights

This condenser fan motor is suitable for various applications, ensuring reliable cooling performance.

Product Information

Standard Information

• Brand: Century
• MPN: EM3729F

Technical Specifications

• Power Rating: 1/3 HP
• Voltage Rating: 208 to 230 Volt AC, 1-Phase
• FLA: 2.2 to 2.5 Amps
• Speed Rating: 1075 RPM
• NEMA Frame Size: 48Y
• Insulation Class: F
• Mounting Type: Extended Stud
• Weight: 14 Pound
