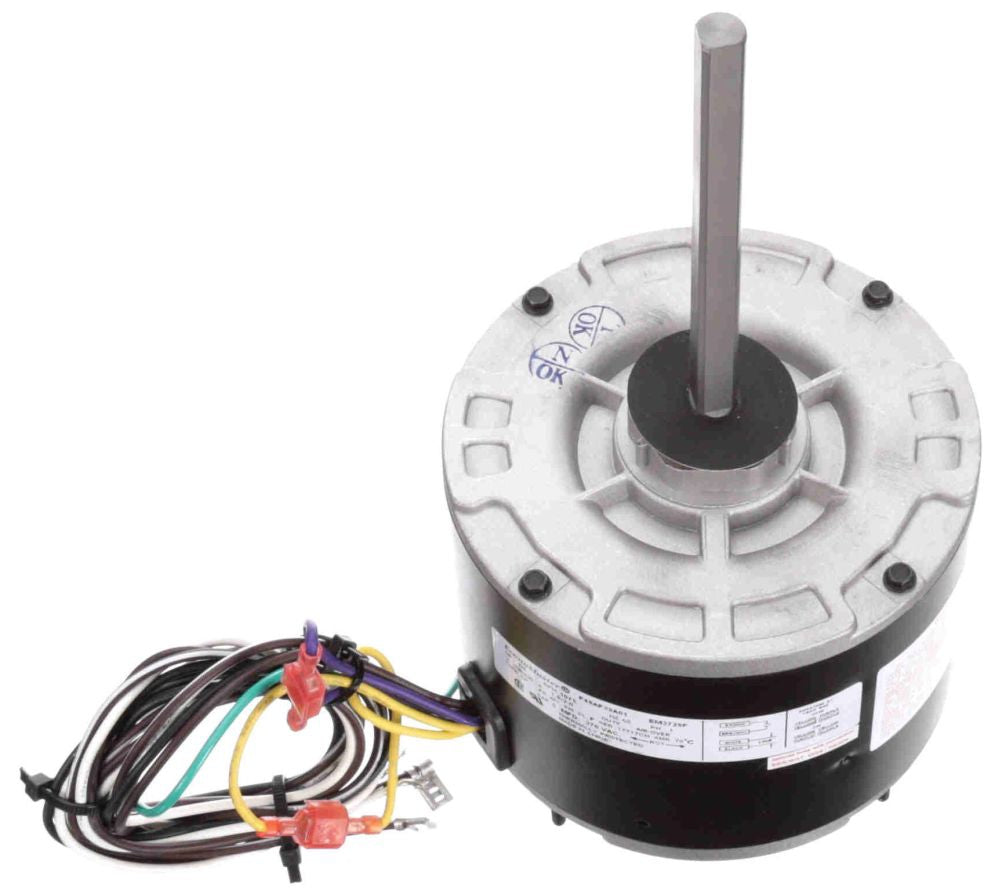

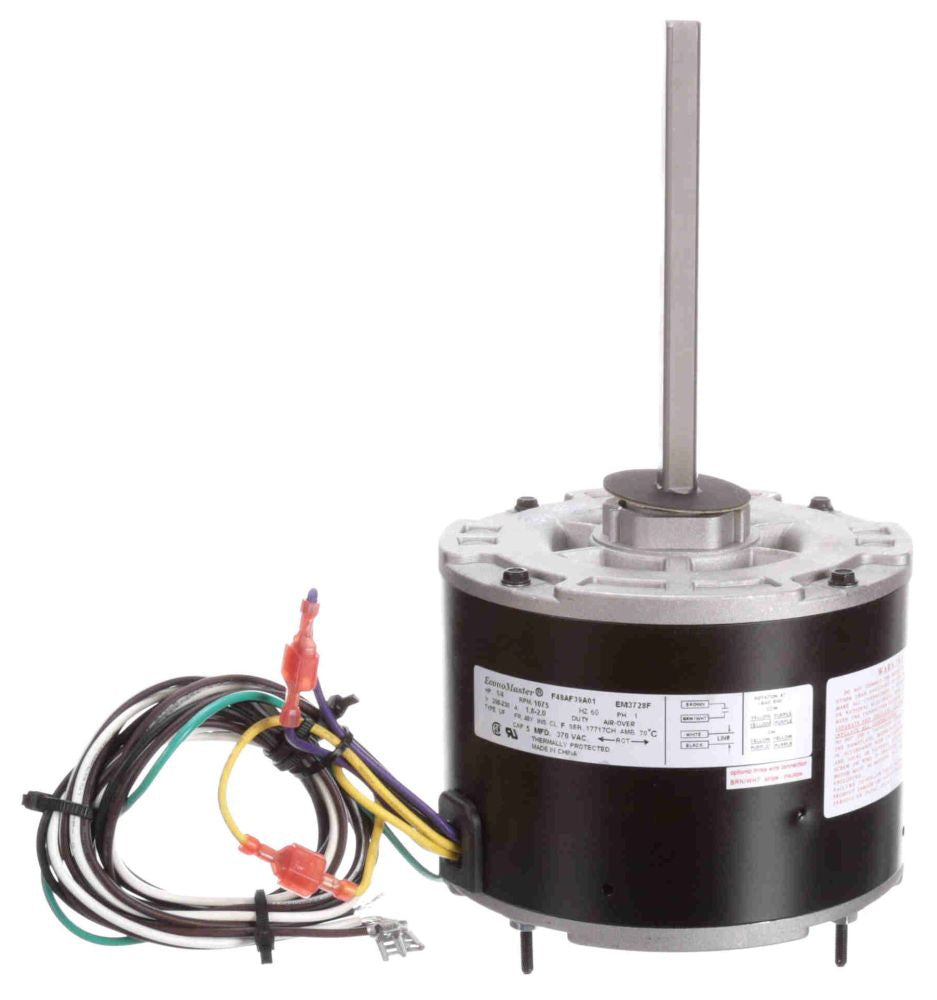

Century EM3728F Condenser Fan Motor 1/4 HP 208 to 230 VAC 60 Hz NEMA 48Y

Product Description

The Century EM3728F is a condenser fan motor designed for efficient operation with a power rating of one-fourth horsepower. It operates on a voltage range of two hundred eight to two hundred thirty volts AC in a single-phase circuit, suitable for a variety of HVAC applications. This motor features a steel frame, six poles, and runs at a speed of one thousand seventy-five RPM.

• Power Rating: 1/4 HP
• Speed: 1075 RPM
• Reversible Rotation: Yes

Product Highlights

This motor is ideal for condenser fan applications due to its reliable performance and thermal protection features.

Product Information

Standard Information

• Brand: Century Motors
• MPN: EM3728F

Technical Specifications

• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 1.8 to 2 Amp
• NEMA Frame Size: 48Y
• Frame Material: Steel
• Weight: 11 Pound
• Insulation Class: F
• Shaft Type: Flat
• Ambient Temperature Rating: 70 Deg C
• Includes: 36 Inch Lead
