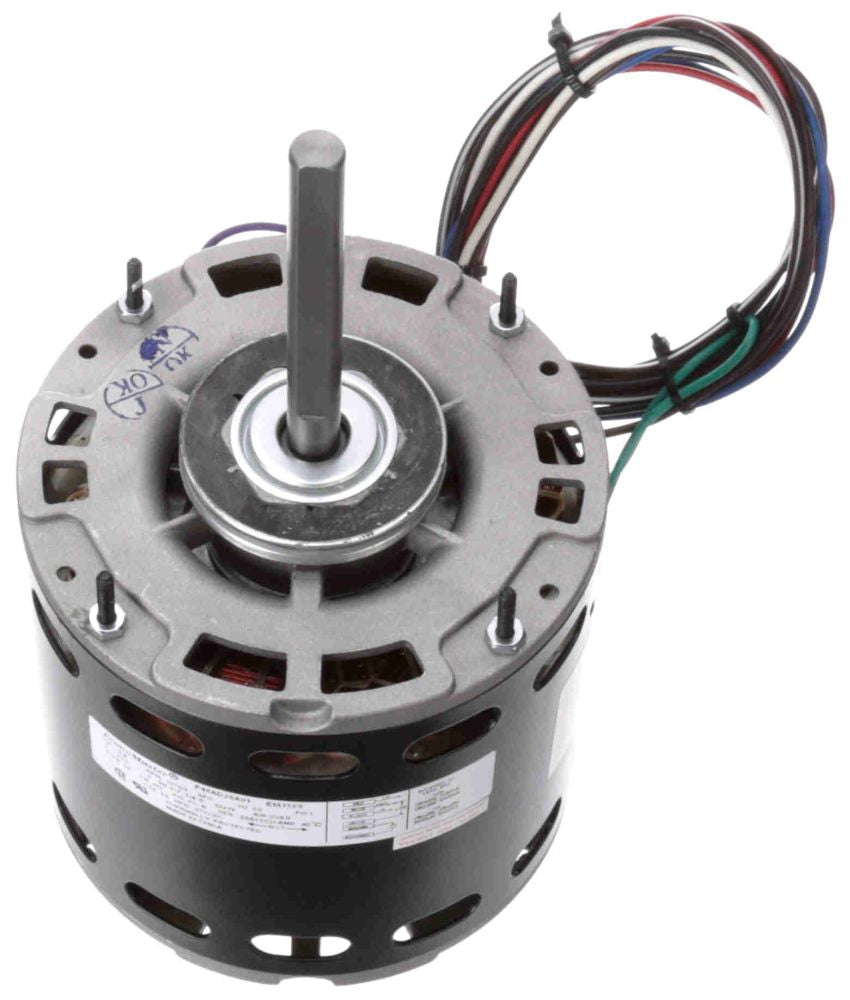

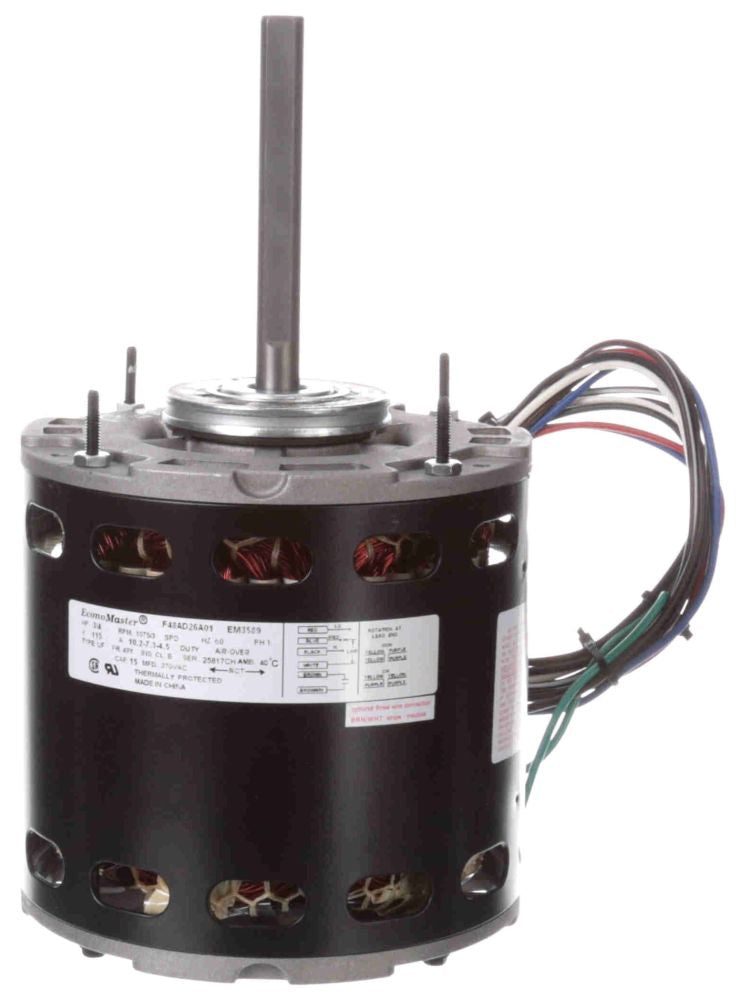

Century Motors EM3589 Economaster Direct Drive Blower Motor 3/4 HP 115V 1075 RPM

Product Description

The Century Motors EM3589 is a robust direct drive fan and blower motor ideal for HVAC applications. This motor is designed to operate efficiently with a power rating of 3/4 HP and a speed of 1075 RPM.

• 115 Volt AC, single-phase with a frequency of 60 Hz.
• Equipped with three speeds and reversible functionality.
• Constructed with a rolled steel frame and Class B insulation for durability.

Product Highlights

This motor is thermally protected and features an open air-over enclosure, making it suitable for continuous air-over operations. The extended stud mounting and flat shaft design facilitate easy installation and maintenance.

Product Information

Standard Information

• Application: Direct Drive Fan and Blower
• Approval: UL, CSA certified
• Orientation: Horizontal

Technical Specifications

• Frame Size: NEMA 48Y
• Insulation Class: B
• Bearing Type: Drive End/Opposite Drive End Ball
• Number of Poles: 6
• Ambient Temperature Rating: 40 Degrees Celsius
• Includes: 25 Inch Lead
