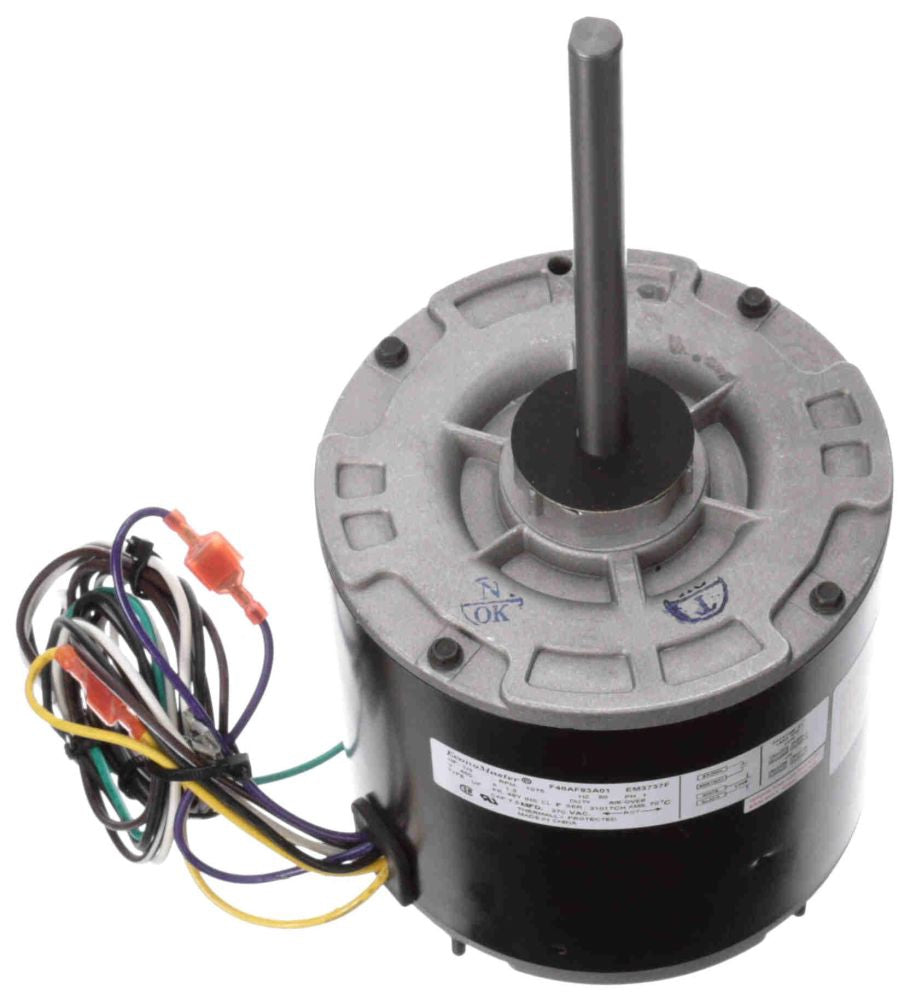

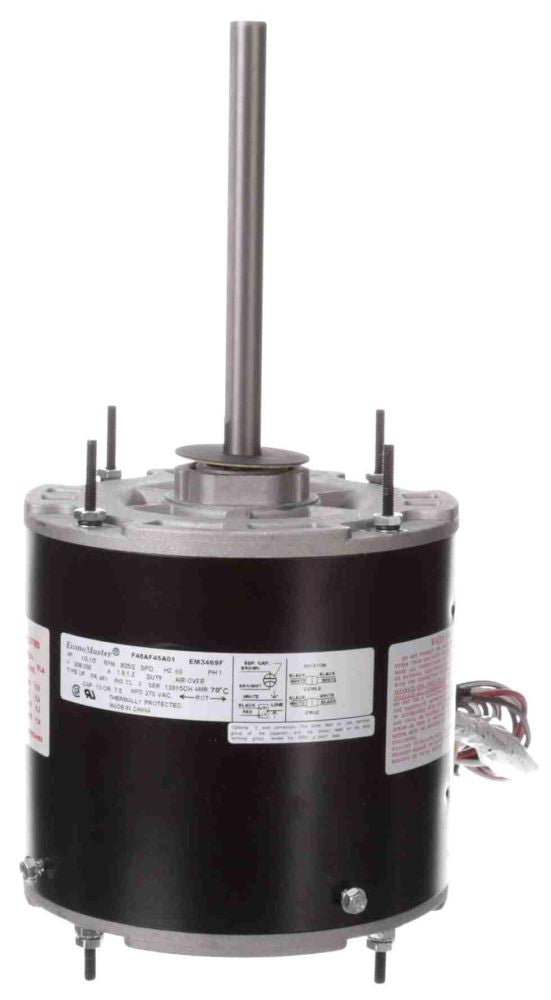

Century EM3469F Condenser Fan Motor 1/3 HP 208-230 VAC 825 RPM 2-Speed

Product Description

The Century EM3469F Condenser Fan Motor is a reliable motor designed for HVAC systems. This motor is rated at 1/3 HP with a voltage of 208-230 VAC and operates at 825 RPM. It has a 2-speed setting and is equipped with a permanent split capacitor and induction run. It is built with a rolled steel NEMA 48Y frame and features a reversible flat shaft.

• 1/3 HP motor suitable for HVAC systems
• 208-230 VAC voltage rating
• 825 RPM with 2-speed settings

Product Highlights

This motor can be used in condenser fan applications and includes an extended stud mount for easy installation. It is thermally protected and features ball bearings on both the drive and opposite drive ends.

Product Information

Standard Information

• Manufacturer: Century Motors
• UPC: 78667406900
• UNSPSC: 26101105

Technical Specifications

• Power Rating: 1/3 HP
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 1.9 Amp, 1.2 Amp
• Speed Rating: 825 RPM
• Reversible: Yes
• Service Factor: 1
• NEMA Frame Size: 48Y
• Insulation Class: F
• Frame Material: Rolled Steel
• Mounting: Extended Stud
• Weight: 16 Pound
• Application: Condenser Fan
• Approval: UL, CSA
• Type: Permanent Split Capacitor, Induction Run
• Shaft Type: Flat
• Orientation: Any
• Bearing Type: Ball (Drive End/Opposite Drive End)
• Number of Poles: 8
• Size: 5.6 Inch Diameter x 11.84 Inch Length
• Frame Length: 4.63 Inch
• Shaft Size: 0.5 Inch Diameter x 6 Inch Length (Extension)
• Ambient Temperature Rating: 70 Deg C
• Includes: 48 Inch Lead
