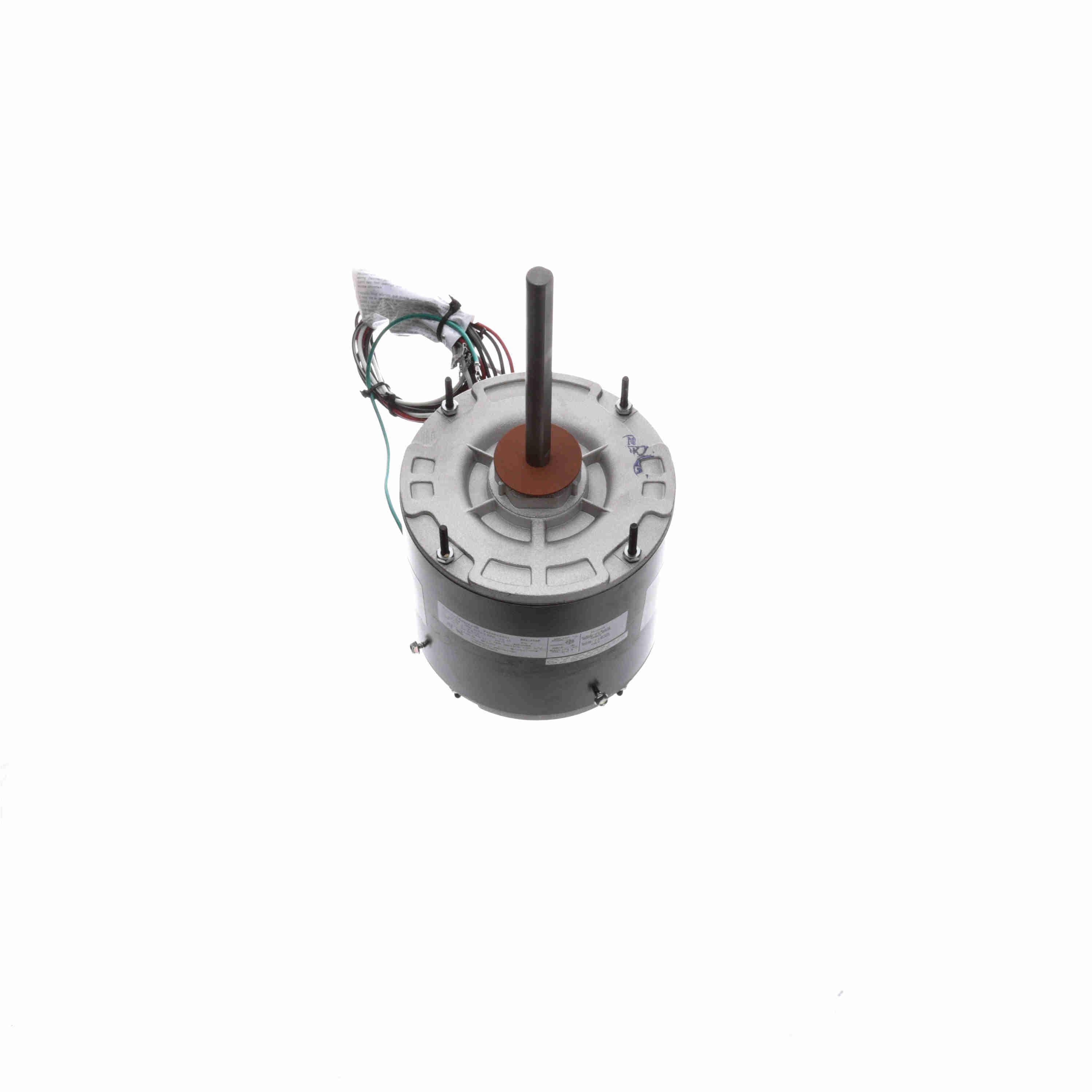

Century EM3468F HVAC/R Motor Totally Enclosed Air Over 1/2 1/4 hp 208 to 230 V

Product Description

The Century EM3468F motor is designed for HVAC/R applications. This totally enclosed air over motor has a 6-pole design with an output of 1/2 and 1/4 horsepower, working efficiently with a voltage range of 208 to 230 V.

• Reversible rotation
• Ball bearing construction
• Permanent Split Capacitor

Product Highlights

The Century EM3468F motor features extended stud mounting and a 48Y frame, making it suitable for a range of condenser fan applications. Its reversible rotation and ball bearing construction ensure reliable performance.

Product Information

Standard Information

• Brand: Century
• Manufacturer: Regal Beloit
• UPC: 786674068996
• Country of Origin: IN

Technical Specifications

• Type: 6-Pole
• Frame: 48Y
• Phase: 1 ph
• Speed: 1075 rpm
• Material: Rolled Steel
• Rotation: Reversible
• Dimensions: 5.6 in Dia x 11.8 in L
• Horsepower: 1/2, 1/4 hp
• Shaft Size: 1/2 in Dia x 6 in L
• Bearing Type: Ball
• Mounting Type: Extended Stud
• Enclosure Type: Totally Enclosed Air Over
• Service Factor: 1
• Voltage Rating: 208 to 230 V
• Amperage Rating: 3.6/1.7 A
• Application Type: Condenser Fan Motor
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Number of Speeds: 2
• Special Features: Permanent Split Capacitor Motor
• Temperature Rating: 70 deg C
