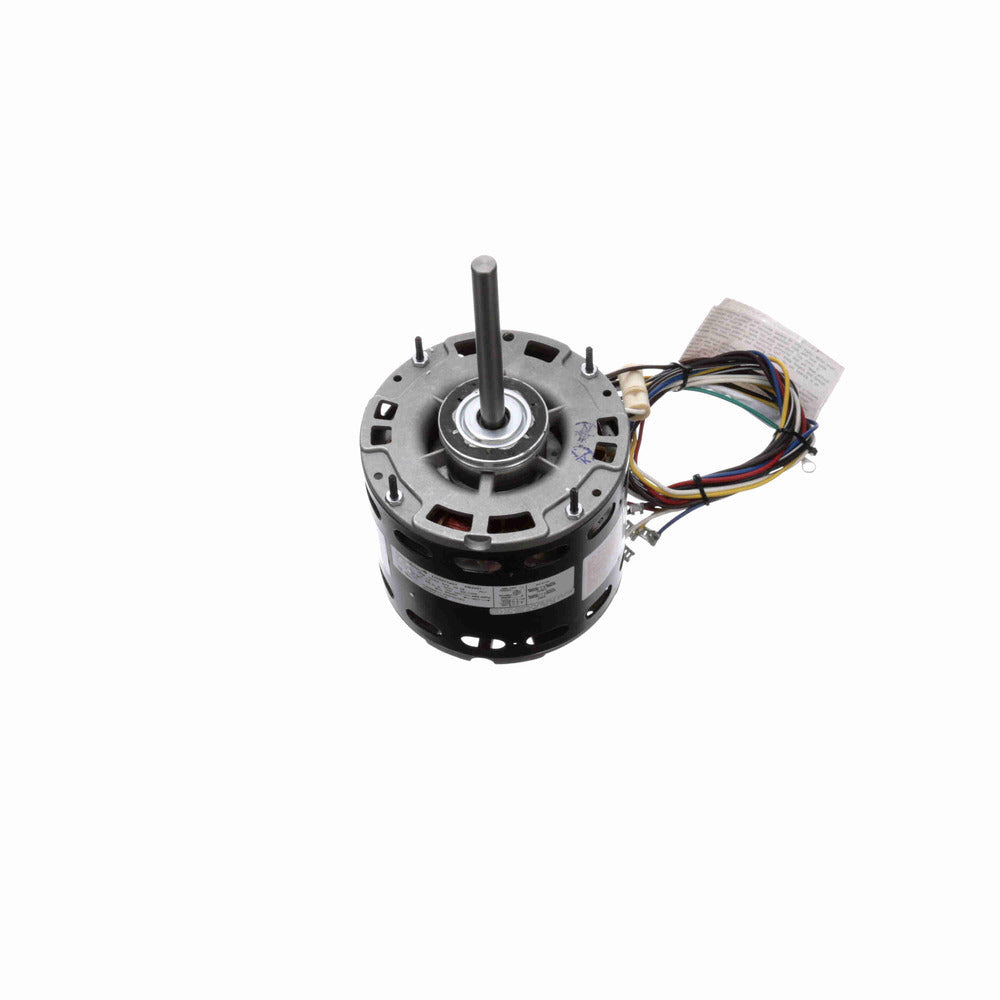

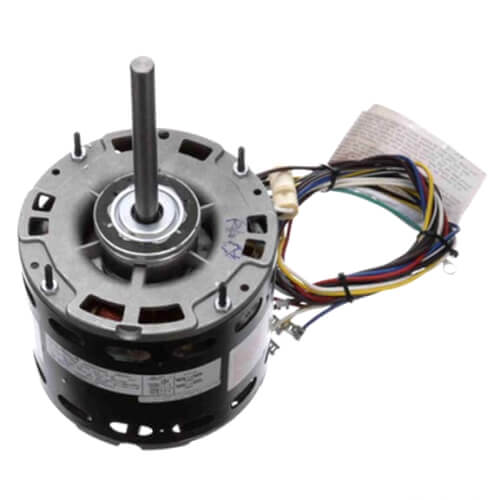

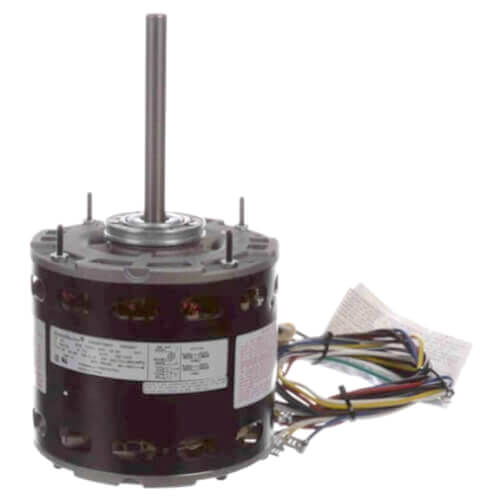

Century EM3467 Fan and Blower Motor 208-230v 3/4 HP 1075 RPM 48 Frame

Product Description

The Century EM3467 Fan and Blower Motor is a robust component designed for HVAC systems. This motor operates at 208-230 volts and delivers 3/4 horsepower at 1075 RPM, making it suitable for various fan and blower applications.

• 208-230 volts operation
• 3/4 horsepower
• 1075 RPM speed

Product Highlights

Efficient and reliable fan and blower motor by Century, perfect for HVAC systems.

Product Information

Standard Information

• Frame: 48Y
• Enclosure: ODP
• Phase: Single
• Voltage: 208-230
• Rotation: REV

Technical Specifications

• MPN: EM3467
• Brand: Century
• Type: PSC
• HP: 3/4
• KW: 0.56
• RPM: 1075
• Diameter: 5.6
• Material: Rolled Steel
• Bearings: Ball
• Mounting: Extended Studs
• Orientation: Horizontal
• Amperage: 3.9 MAX
• Shaft Type: Flat
• Shaft Extension: 4.500
• Shaft Diameter: 0.500
• Country of Origin: India
• Certification: UL Recognized, CSA
• Weight: 17 pounds
• Length: 17 inches
• Width: 13 inches
• Height: 9 inches
