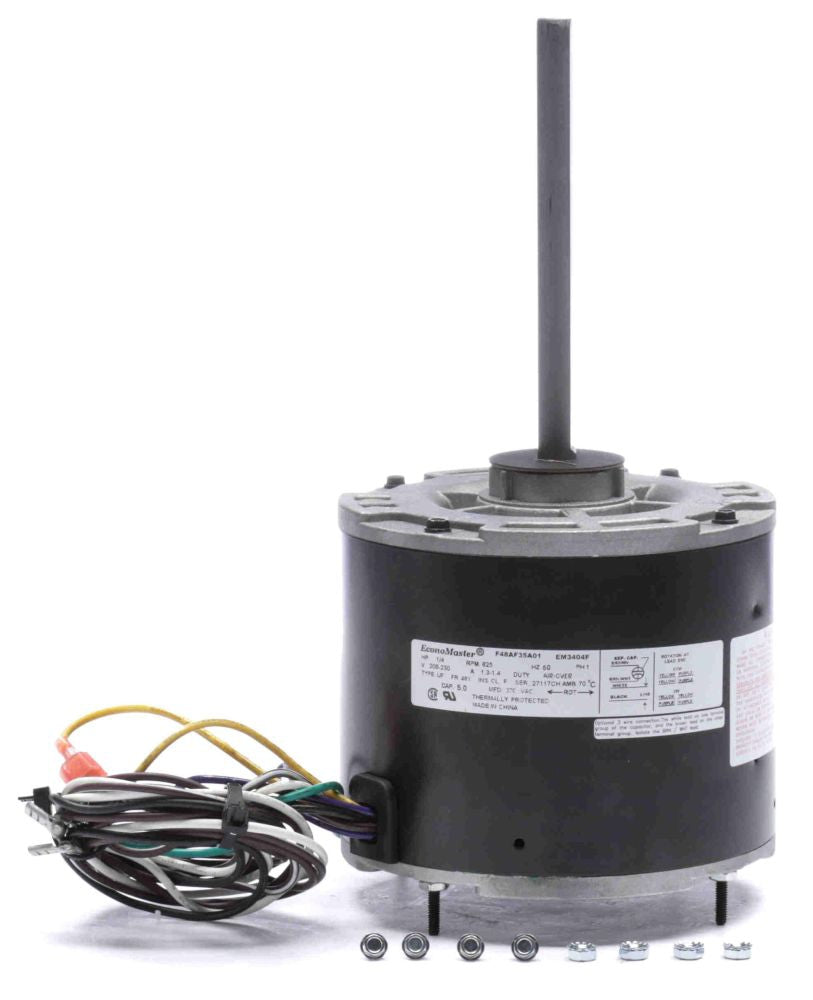

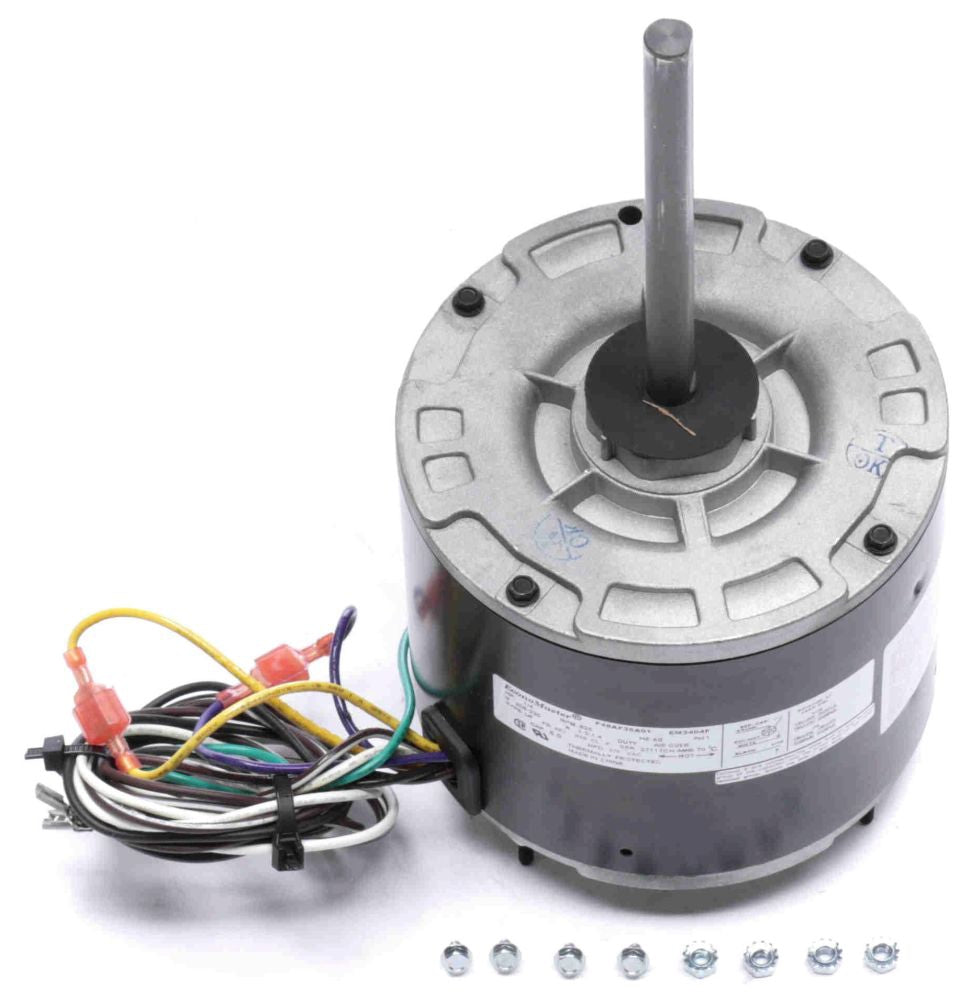

Century EM3404F 1/4 HP Condenser Fan Motor 208-230 VAC 60Hz 1--phase 825 RPM 8-Pole

Product Description

The Century EM3404F is a 1/4 HP condenser fan motor designed for HVAC applications. Rated for 208 to 230 VAC and 60Hz, this single-phase motor operates at 825 RPM and uses an 8-pole design.

• Flat Shaft
• Reversible rotation
• Ball Bearings on Drive End and Opposite Drive End

Product Highlights

Designed for HVAC systems, the motor features a totally enclosed, air-over (TEAO) construction and comes with class F insulation for durability. It is made from rolled steel and can be mounted using extended studs, ensuring versatile installation.

Product Information

Standard Information

• Brand: Century Motors
• UPC: 78667406890

Technical Specifications

• Power Rating: 1/4 HP
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor Amperage: 1.3 to 1.4 Amp
• Speed Rating: 825 RPM
• Reversible: Yes
• Service Factor: 1
• NEMA Frame Size: 48Y
• Insulation Class: F
• Frame Material: Rolled Steel
• Mounting: Extended Stud
• Weight: 14 pounds
• Application: Condenser Fan
• Approval: UL, CSA
• Type: Permanent Split Capacitor, Induction Run
• Shaft Type: Flat
• Orientation: Any
• Bearing Type: Ball (Drive End/Opposite Drive End)
• Number of Poles: 8
• Size: 5.6 inch diameter x 11.17 inch length
• Frame Length: 4 inches
• Shaft Size: 0.5 inch diameter x 6 inch length (extension)
• Ambient Temperature Rating: 70 degrees Celsius
• Includes: 36 inch lead
