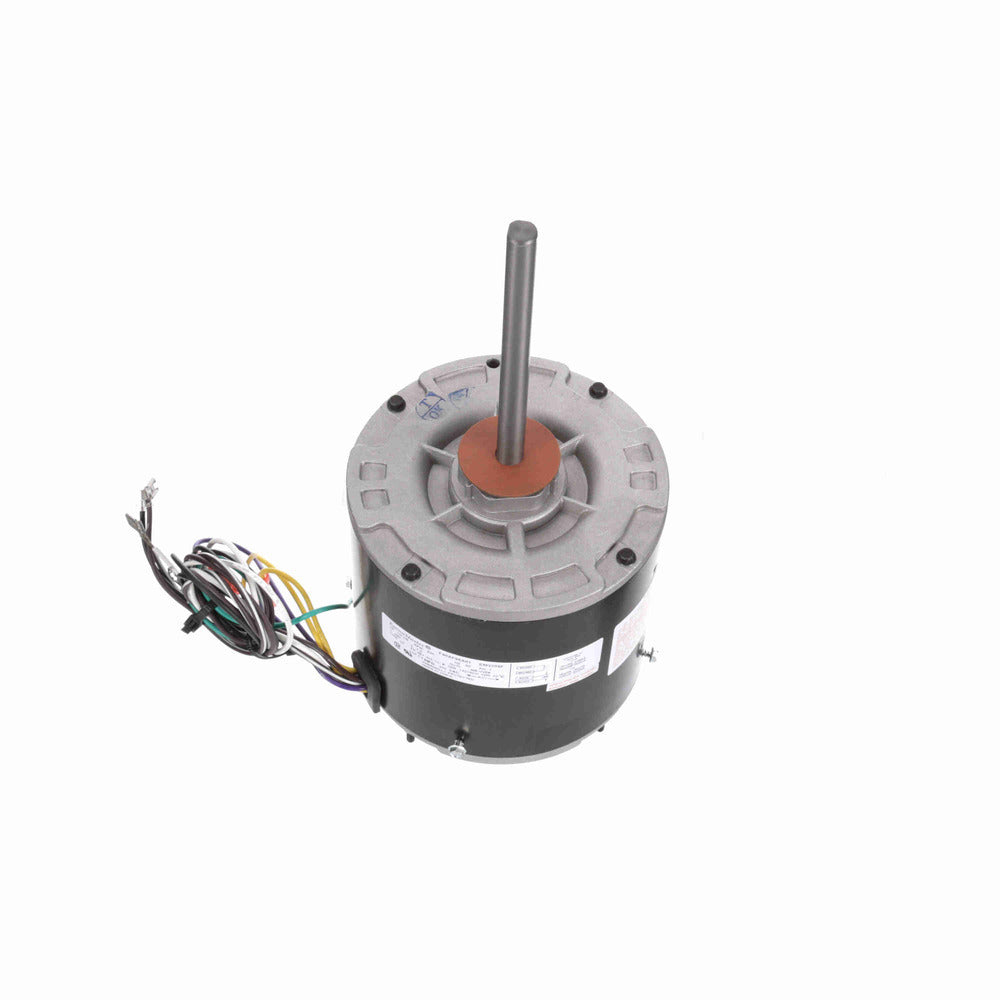

Century EM3209F Condenser Fan Motor 1/3 HP 460V Single Phase

Product Description

The Century EM3209F Condenser Fan Motor is engineered to deliver optimal performance in HVAC systems. Designed for durability, this motor operates at 825 RPM, has a horsepower of 1/3, and a voltage of 460V.

• PSC Electrical Type
• 1/3 HP with a 0.25 KW output
• TEAO enclosed

Product Highlights

This motor is suitable for HVAC applications, particularly in condenser fans. Its ball bearings ensure smooth operation, while the rolled steel construction provides added strength. The motor features an automatic overload protector for enhanced safety.

Product Information

Standard Information

• Brand: Century
• MPN: EM3209F

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/3
• KW: 0.25
• RPM: 825
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 460
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting: Extended Studs
• Amperage: 1.0
• Shaft Type: Flat
• Shaft Extension: 6.000 inches
• Shaft Diameter: 0.500 inches
• Country of Origin: India
• Certifications: CSA, UL Recognized
