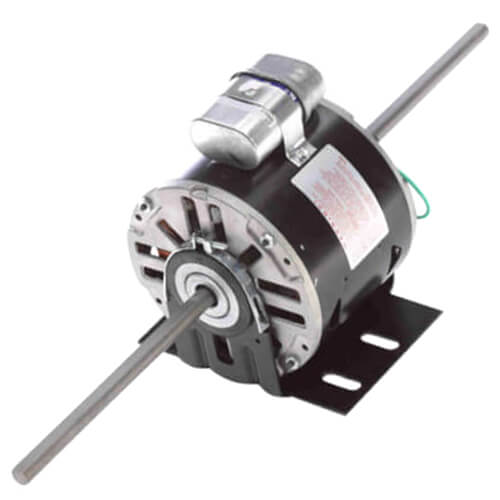

Century DSB1034H 5-5/8 Double Shaft Fan Blower Motor 230V 1625 RPM 1/3 HP

Product Description

The Century DSB1034H 5-5/8 Double Shaft Fan Blower Motor is designed for HVAC systems. This motor operates at 230 volts, 1625 RPM, and has a power rating of 1/3 horsepower.

• Auto Protector
• Energy Efficient
• Semi-enclosed Construction

Product Highlights

This motor features an auto protector, sleeve bearing, and CCWLE rotation. It is built for continuous duty with air over and energy efficiency. It uses a permanent split capacitor and has a semi-enclosed construction.

Product Information

Standard Information

• Brand: Century
• MPN: DSB1034H

Technical Specifications

• Voltage: 230 volts
• Amperage: 2 amps
• Horse Power: 1/3 HP
• RPM: 1625
• Diameter: 5-5/8 inches
• Type: Permanent Split Capacitor
• Frame: 48Y
• Hertz: 60
• Mount: Resilient Base
• Phase: 1
• Speeds: 3
• Bearings: Sleeve
• Rotation: CCWLE
• Enclosure Type: Semi-Enclosed
• Insulation Class: B
• Motor Orientation: Horizontal
• Overload Protection: Automatic
• Max Ambient Temp: 104 degrees Fahrenheit
