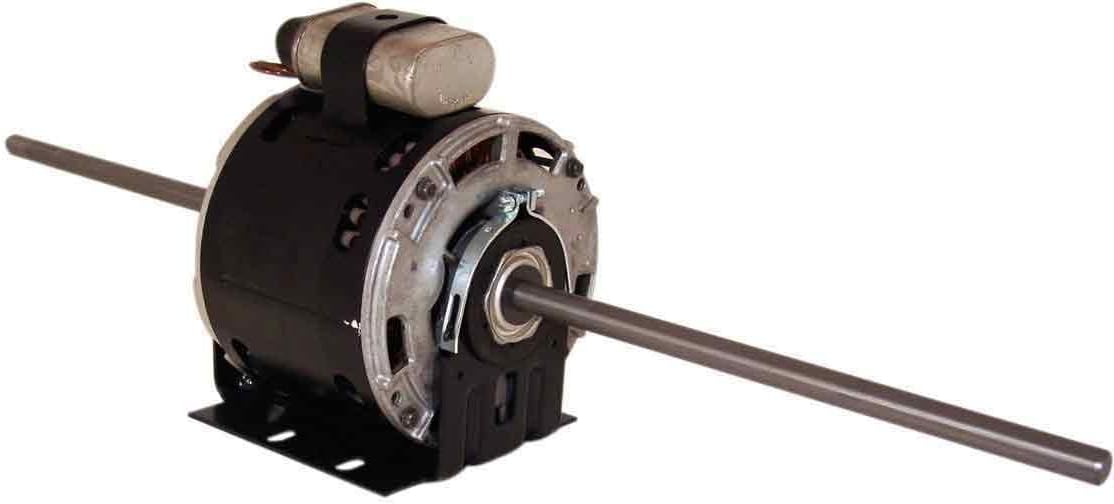

Century DSB1024H Fan Coil with 5.6-Inch Frame Diameter, 1/4-HP, 1625-RPM, 230-Volt, 1.3-Amp

Product Description

The Century DSB1024H is a fan coil designed for efficient operation in various HVAC applications. This motor features a 5.6-inch frame diameter and operates at one fourth horsepower with a speed of 1625 revolutions per minute. It runs on 230 volts and draws 1.3 amps of current. The sleeve bearing design ensures reliable performance and longevity in demanding environments.

• Frame diameter of 5.6 inches
• Operates at a speed of 1625 RPM
• Single-phase and 1/4 HP motor

Product Highlights

This fan coil motor is suitable for use in fan coil console units and packaged heat pumps, making it versatile for both residential and commercial HVAC systems.

Product Information

Standard Information

• Brand: Century
• MPN: DSB1024H

Technical Specifications

• Voltage: 230 Volts
• Horsepower: 0.25 HP
• Speed: 1625 RPM
• Amperage: 1.3 Amps
• Frame Size: 48Y
• Motor Type: Permanent Split Capacitor (PSC)
• Bearings Type: Sleeve
• Mounting Type: Resilient Base
• Orientation: Horizontal
