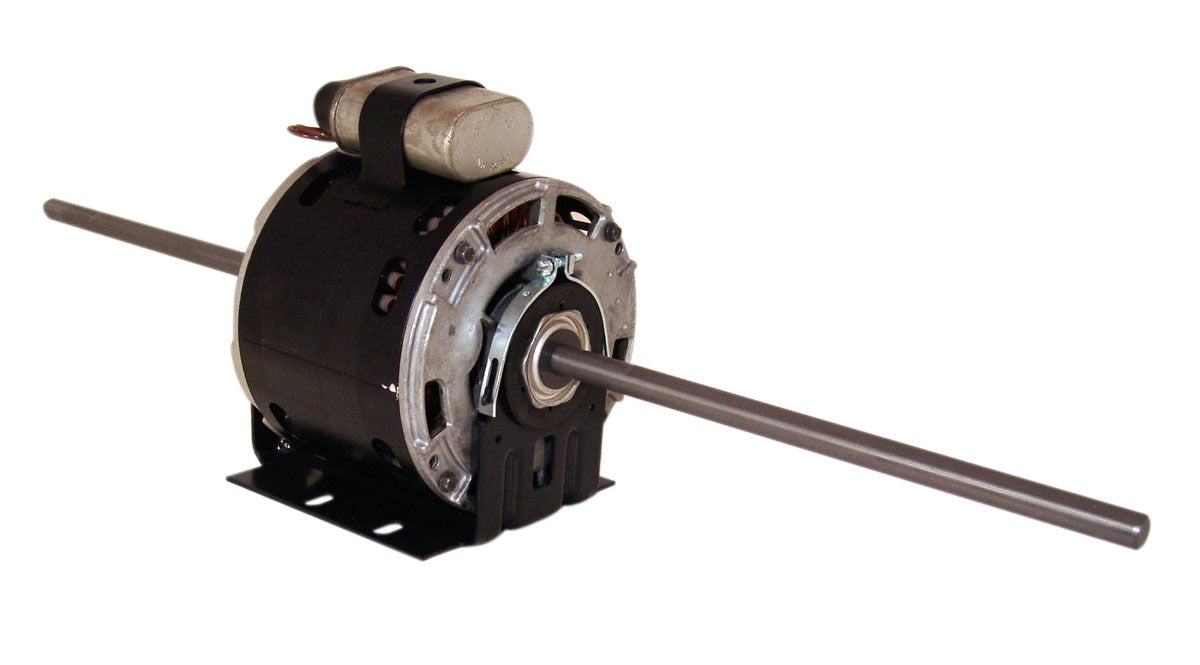

Century DSB1016HR Fan Coil / Air Conditioner Motor 230V 1/6 HP 1625 RPM

Product Description

The Century DSB1016HR Fan Coil / Air Conditioner Motor is engineered for HVAC applications, featuring MPN DSB1016HR. This motor delivers efficient performance with 230V, 1/6 HP, and 1625 RPM, suitable for various environments.

• Electrical Type: PSC
• Frame: 48Y
• Auto Overload Protection

Product Highlights

This Century motor is semi-enclosed, horizontally oriented, and made with rolled steel. It includes sleeve bearings and a resilient base mounting, making it versatile for HVAC needs.

Product Information

Standard Information

• Brand: Century
• MPN: DSB1016HR

Technical Specifications

• Voltage: 230
• Horsepower: 1/6
• RPM: 1625
• Frame: 48Y
• Diameter: 5.6 inches
• Phase: Single
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Mounting: Resilient Base
• Orientation: Horizontal
• Amperage: 1.3
• Shaft Type: Flat
• Shaft Extension: 7.500 x 0.500 x 7.500 inches
• Ambient Temperature: 40 degrees C
• Insulation Class: B
• Number of Poles: 4
• Service Factor: 1
• Start Method: Across The Line
• Shaft Diameter: 0.500 inches
