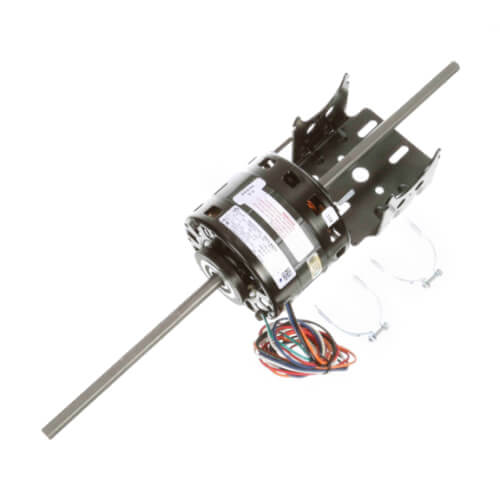

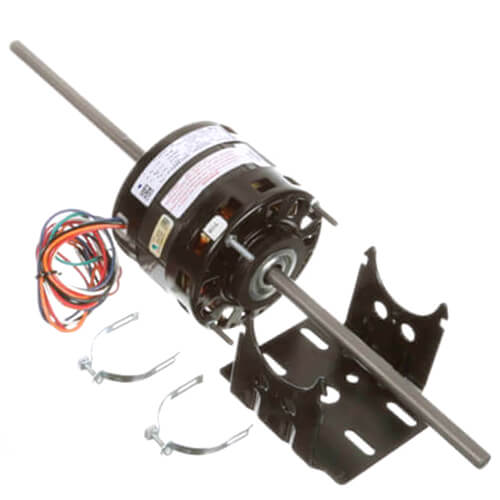

Regal Rexnord - Century Motors DCL4423 115V 1/6HP 1550RPM 4-Speed Motor

Product Description

The Regal Rexnord - Century Motors DCL4423 motor is designed for high-demand industrial applications. This motor, identified by MPN DCL4423, offers reliable performance with a compact design.

• 1/6HP power
• 115V voltage
• 1550RPM speed

Product Highlights

This motor features single-phase operation and is ideal for use in pumps, fans, and compressors. Its robust, reliable construction ensures it operates efficiently while minimizing energy consumption.

Product Information

Standard Information

• Brand: Century Motors
• MPN: DCL4423

Technical Specifications

• Voltage: 115V
• Horsepower: 1/6HP
• Speed: 1550RPM
• Phase: Single
• Overload Protection: Automatic
• Mounting Type: Resilient Ring
• Bearing Type: Sleeve
• Ambient Temperature: 40°C
• Efficiency: Continuous duty
• Insulation Class: B
• Enclosure: OAO
• Rotation: CCWLE
• Speeds: 4
• Frequency: 60Hz
• Amperage: 4
• Shaft Type: Flat
• Shaft Extension: 8.500 x 0.500 x 8.500 inches
