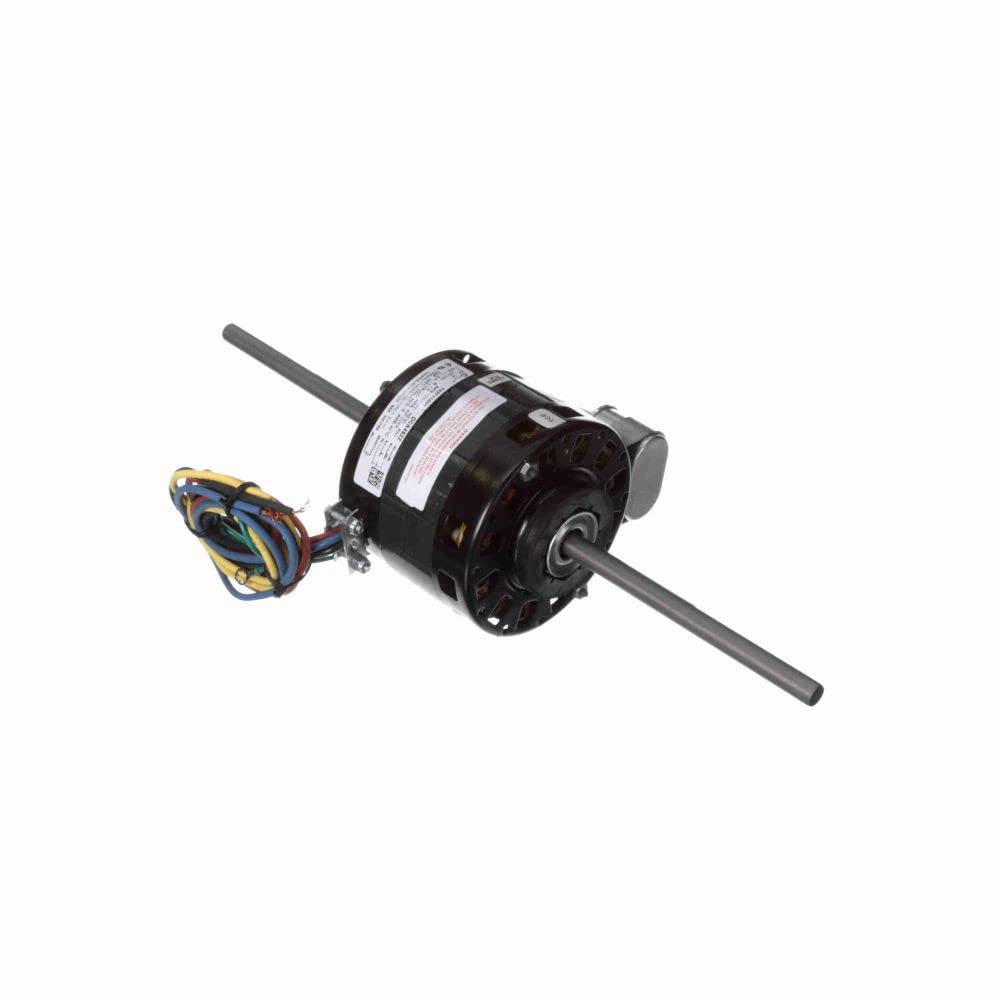

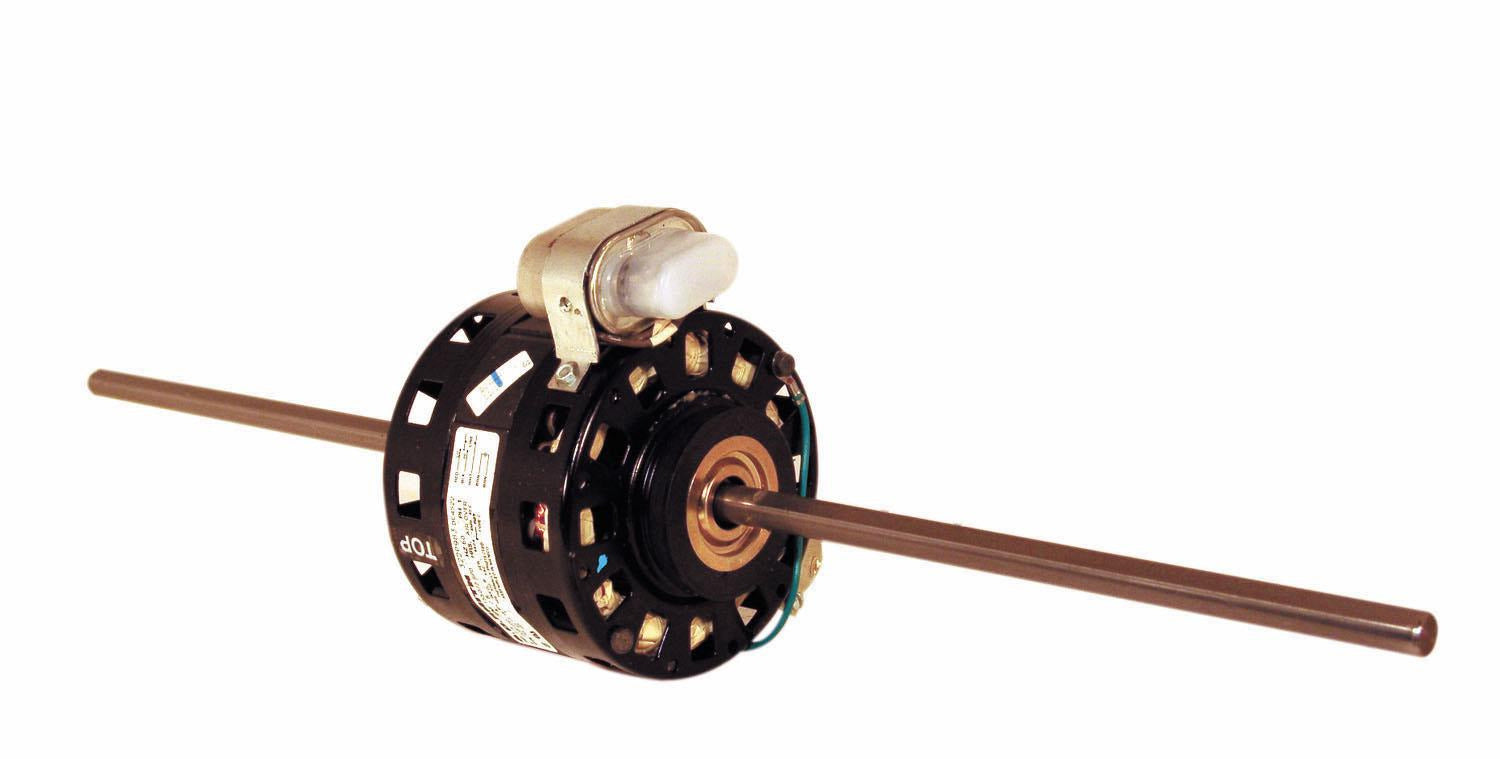

Century DCA4522 OEM Replacement Motor 1/5 HP 1550 RPM 208-230V

Product Description

The Century DCA4522 motor is an OEM replacement motor for various HVAC systems. With a power of 1/5 HP and a speed of 1550 RPM, this motor operates efficiently on a voltage range of 208-230V. It is designed for single-phase applications and features a permanent split capacitor. This motor is versatile and suitable for use in room air conditioners and other compatible systems.

• 1/5 HP at 1550 RPM
• 208-230V single-phase
• Permanent split capacitor design

Product Highlights

This motor is built to meet OEM specifications, ensuring reliable performance in various applications. It features a robust rolled steel body and operates with high efficiency, reducing energy consumption. Ideal for HVAC technicians looking for a dependable replacement motor.

Product Information

Standard Information

• Brand: Century
• Model Number: DCA4522

Technical Specifications

• Power: 1/5 HP
• RPM: 1550
• Voltage: 208-230V
• Amperage: 1.9
• Frame: 42Y
• Phase: Single
• Enclosure: Open Air Over (OAO)
• Rotation: CCW Lead End
• Bearings: Sleeve
• Mounting Type: Resilient Ring
• Insulation Class: B
• Max Ambient Temperature: 40 degrees C
• Overall Length: 17 inches
• Shaft Diameter: 0.5 inches
• Shaft Length: 6.625 inches
