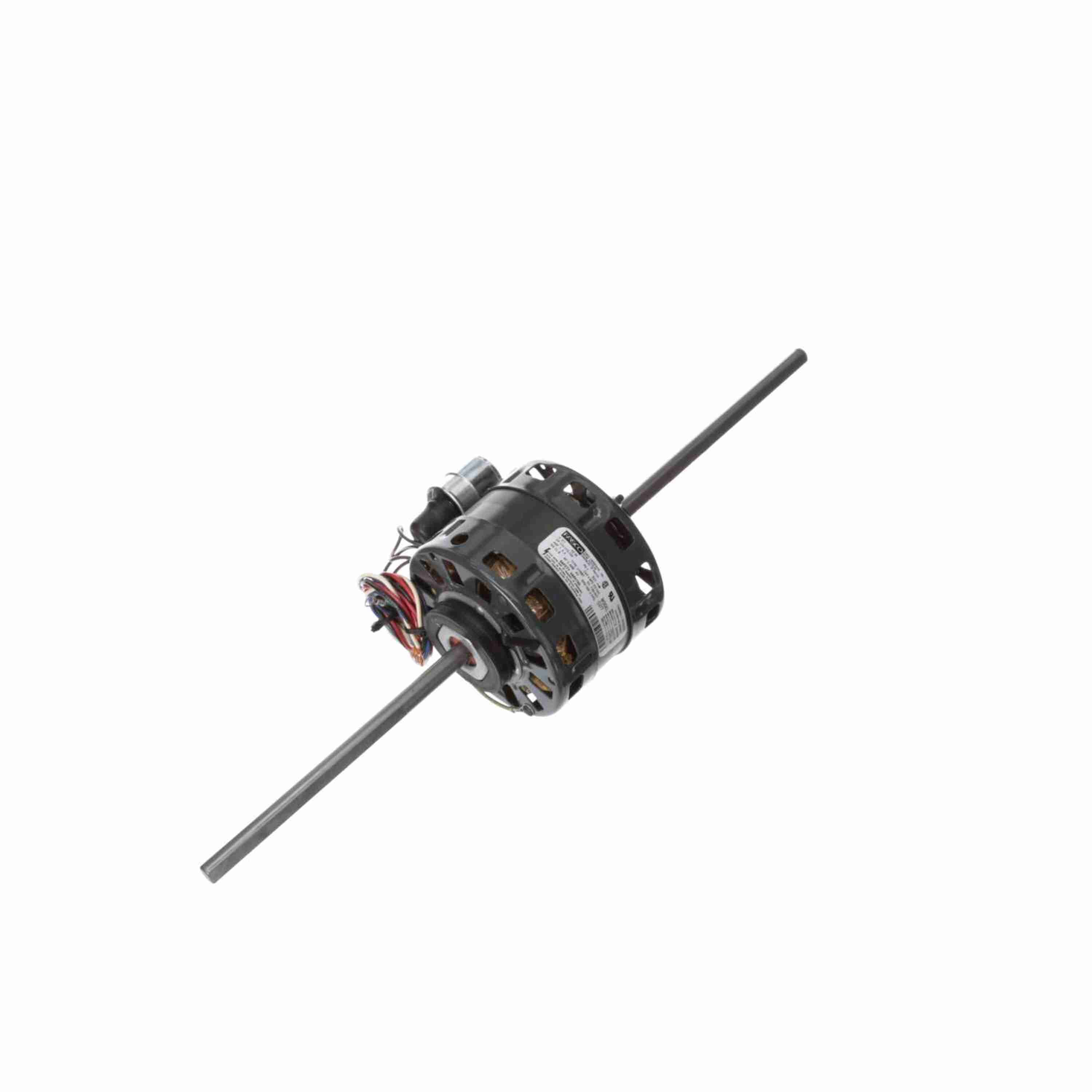

Century Motors DC4522A Fan Coil & Air Conditioner Motor 1/5, 1/10 HP 208-230 V

Product Description

The Century Motors DC4522A is a fan coil and air conditioner motor. It operates at 208-230 volts and is designed for dual wheel blowers. This motor includes thermal protection and an open air over design. It features class B insulation suitable for ambient temperatures up to forty degrees Celsius. The motor is equipped with ball bearings and a half-inch diameter double shaft with double flats.

• Permanent Split Capacitor (PSC) motor; requires five microfarads at 370 volts.
• Class B insulation rated for forty degrees Celsius.
• Half-inch diameter double shaft with double flats for optimal performance.

Product Highlights

This motor is ideal for tasks requiring reliable cooling and heating solutions in various HVAC systems.

Product Information

Standard Information

• Phase: 1
• Output HP: 1/5, 1/10 HP

Technical Specifications

• Voltage: 208-230 V
• Speed: 1550 rpm
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 degrees Celsius
• Frequency: 60 Hz
• Current: 2.6 A, 1.2 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Yes
• CE: No
• Number of Speeds: 2
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 4
• Rotation: Counterclockwise Lead End
• Mounting: Resilient Rings
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 0.500 inches
• Frame Length: 3.83 inches
