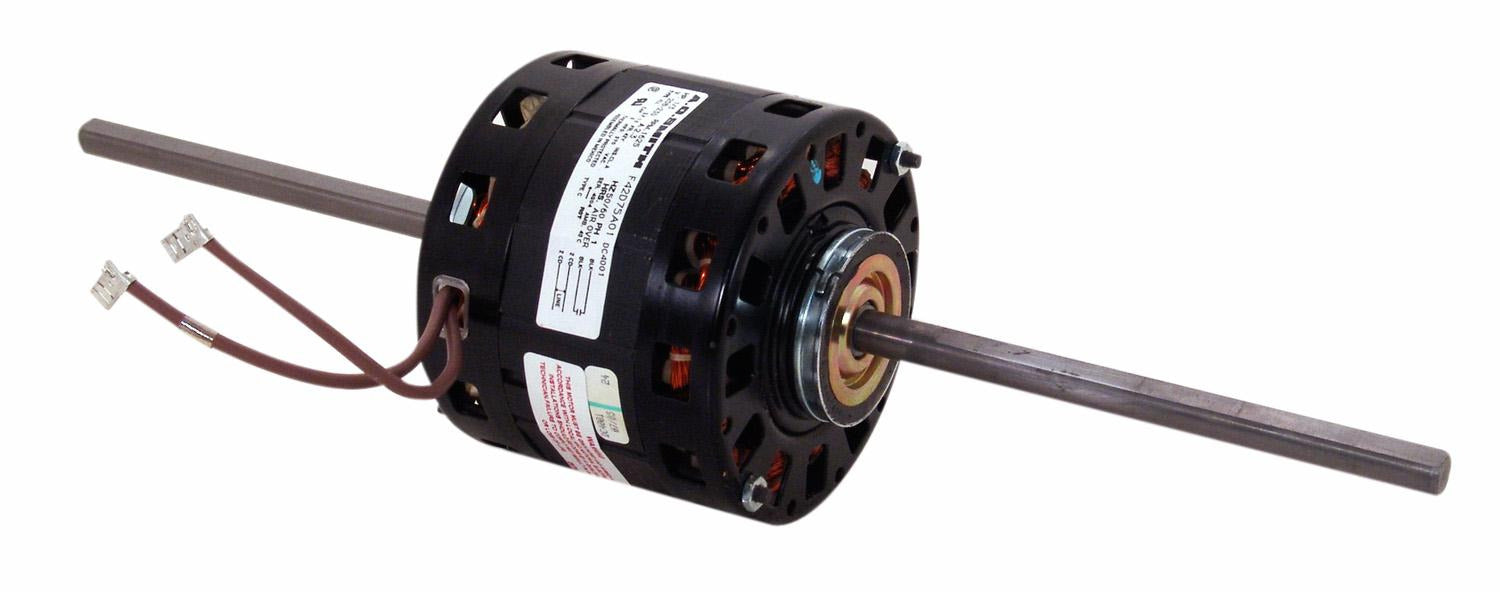

Century DC4001 Fan Coil with 5.0-Inch Frame Diameter 1/3-HP 1625-RPM 208-230-Volt 2.3-Amp Sleeve Bearing

Product Description

The Century DC4001 is a fan coil motor designed for HVAC applications. This motor features a 5.0-inch frame diameter and operates at 1/3 horsepower at 1625 RPM. It runs on 208-230V and has a 2.3-amp rating, making it suitable for various fan coil systems.

• 5.0-Inch Frame Diameter
• 1/3-HP
• 1625-RPM

Product Highlights

The Century DC4001 is designed for reliable performance in fan coil applications. Its double shaft design ensures versatility and installation flexibility. The motor is built with durable materials to withstand demanding environments.

Product Information

Standard Information

• Brand: Century
• MPN: DC4001

Technical Specifications

• Frame Diameter: 5.0 inches
• Horsepower: 1/3 HP
• Speed: 1625 RPM
• Voltage: 208-230V
• Amperage: 2.3 A
• Bearing Type: Sleeve
• Orientation: Horizontal
• Shaft Dimension: 1/2 x 7-3/16 inches
• Motor Length: 4-1/8 inches
• Phase: Single
• Enclosure: Open
• Rotation: CCWLE
• Material: Rolled Steel
• Insulation Class: A
• Service Factor: 1
• Mounting: Resilient Ring
• Ambient Temperature: 40°C
• Duty: Air Over
• Speeds: 1
• Poles: 4
• Weight: 12.3 lbs
