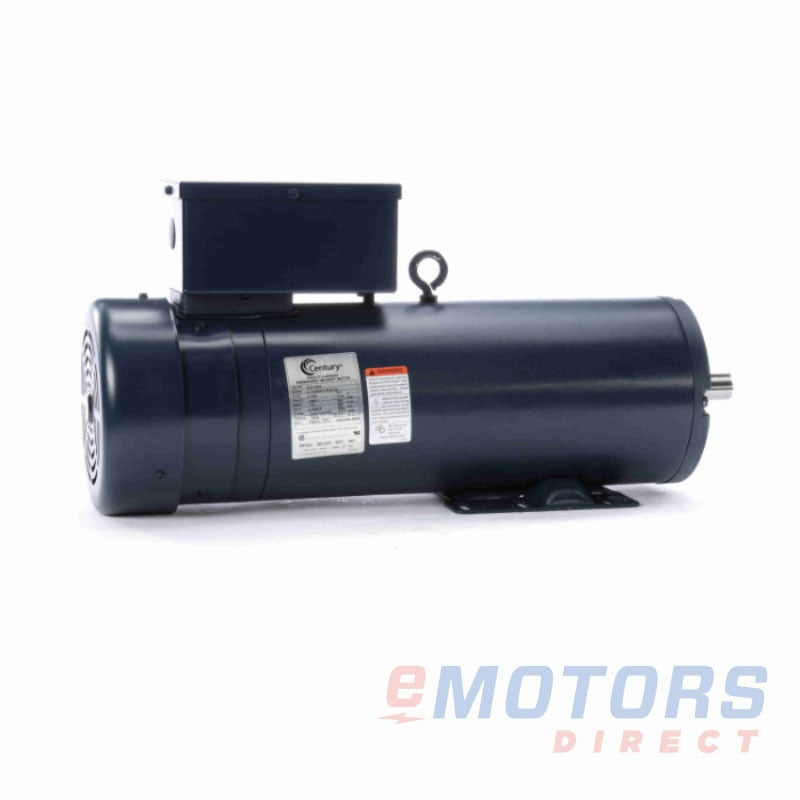

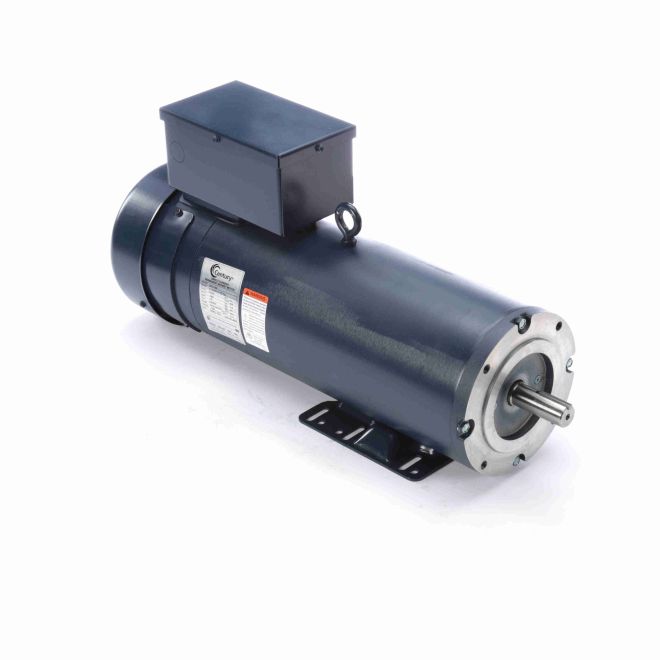

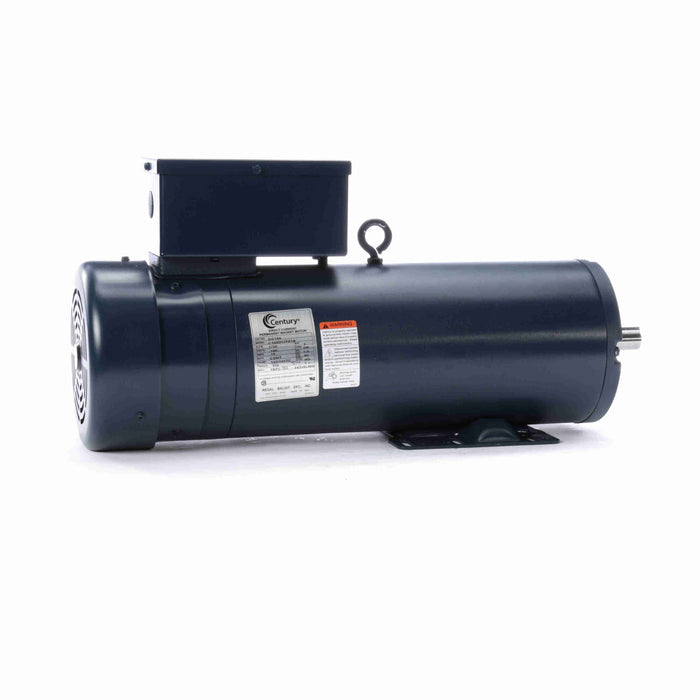

Century Motors DC144 DC General Purpose Motor 3 HP

Product Description

The Century Motors DC144 is a three horsepower DC motor ideal for various applications. It has a frame size of 145TC and operates at one thousand seven hundred fifty RPM using a one hundred eighty volt DC power supply. This motor's construction includes rolled steel, ensuring durability, and it comes equipped with ball bearings. The design allows for continuous duty operation with reversible rotation.

• Rated for continuous duty operation.
• Features a TEFC (Totally Enclosed Fan Cooled) enclosure.
• Offers reversible rotation for flexible use.

Product Highlights

This motor is suitable for environments requiring reliable performance and efficiency.

Product Information

Standard Information

• Brand: Century
• Manufacturer Part Number: DC144

Technical Specifications

• Rated Motor Output Power: 3 HP
• Output Power: 2.25 kW
• Rated Motor Speed: 1750 RPM
• Input Voltage: 180 VDC
• Rated Motor Current: 15 A
• Phase: DC
• Frame: 145TC
• Enclosure: TEFC
• Mounting Type: C-Face / Rigid
• Weight: 107 lb
• Shaft Diameter: 0.875 in
• Shaft Length: 2 in
• Shaft Extension: 2.06 in
• Agency Approvals: CSA & UL
• Service Factor: 1
• Electrical Type: DC Permanent Magnet
• Starting Method: Across The Line
• Number of Speeds: 1
