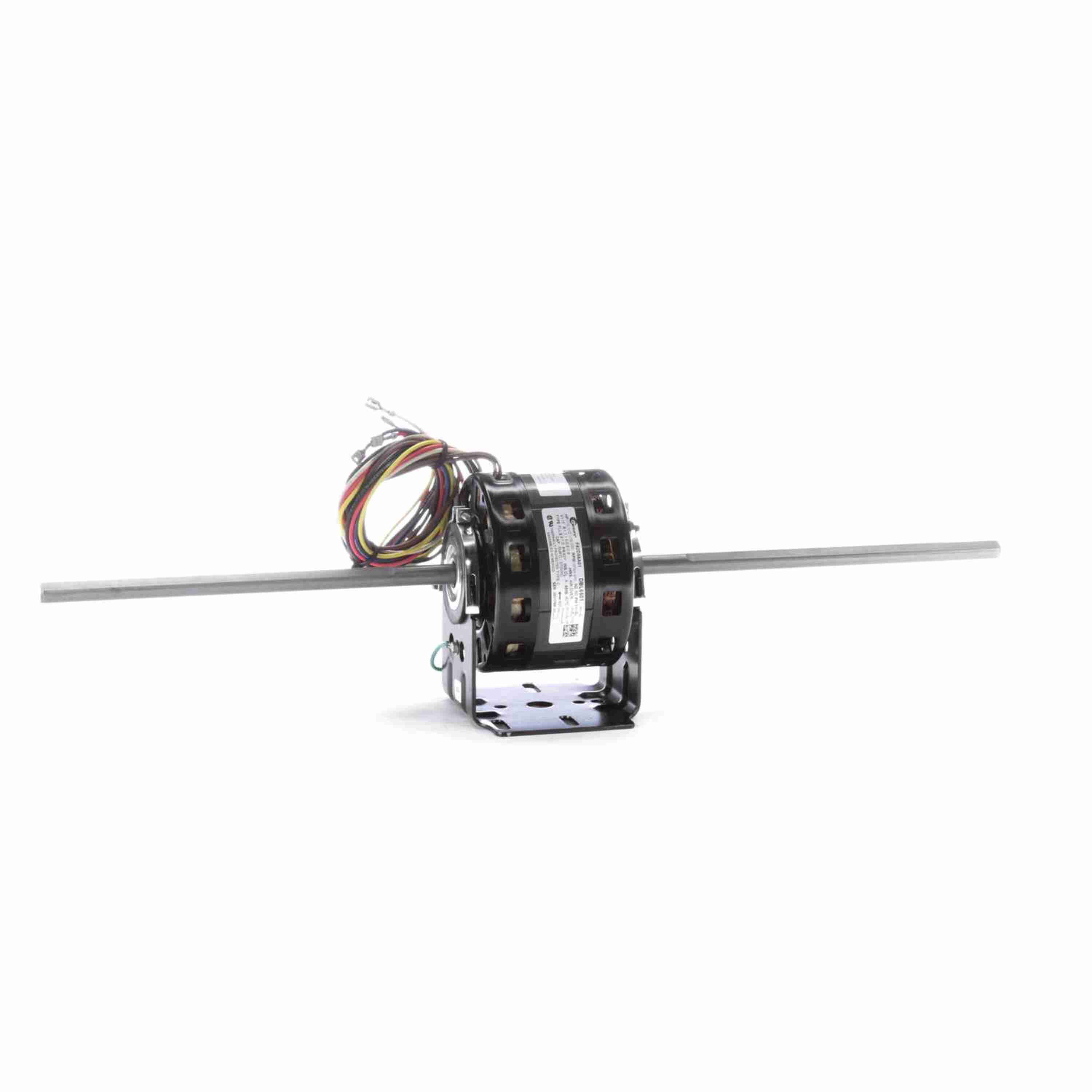

Century Motors DBL6501A Fan Coil Motor 115V 1/10-1/20 HP

Product Description

The Century Motors DBL6501A is a reliable fan coil motor suitable for dual wheel blower applications. This motor functions at one hundred fifteen volts and sixty hertz, running at a speed of one thousand seventy-five RPM with four selectable speeds. It includes an open enclosure, Class A or B insulation, and automatic thermal protection.

• Designed for fan coil and dual wheel blower applications
• Includes a 1/2 diameter double shaft with double flats
• Requires a 5 Mfd-370 Volts capacitor (not supplied)

Product Highlights

This motor provides consistent performance in HVAC systems and is built for durability, making it suitable for various heating and cooling needs.

Product Information

Standard Information

• Brand: Century Motors
• MPN: DBL6501A

Technical Specifications

• Phase: 1
• Output HP: 1/10, 1/12, 1/15, 1/20 Hp
• Output KW: 0.07 kW
• Input Voltage: 115 V
• Frequency: 60 Hz
• Speed: 1075 RPM
• Number of Speeds: 4
• Current: 2.1, 1.54, 1.25, 1.05 A
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Counterclockwise Lead End
• Mounting: Resilient Base
• Drive End Bearing: Ball
• Shaft Type: Flat
• Frame Length: 3.58 in
• Shaft Diameter: 0.500 in
• Overall Length: 24.00 in
