Product Description

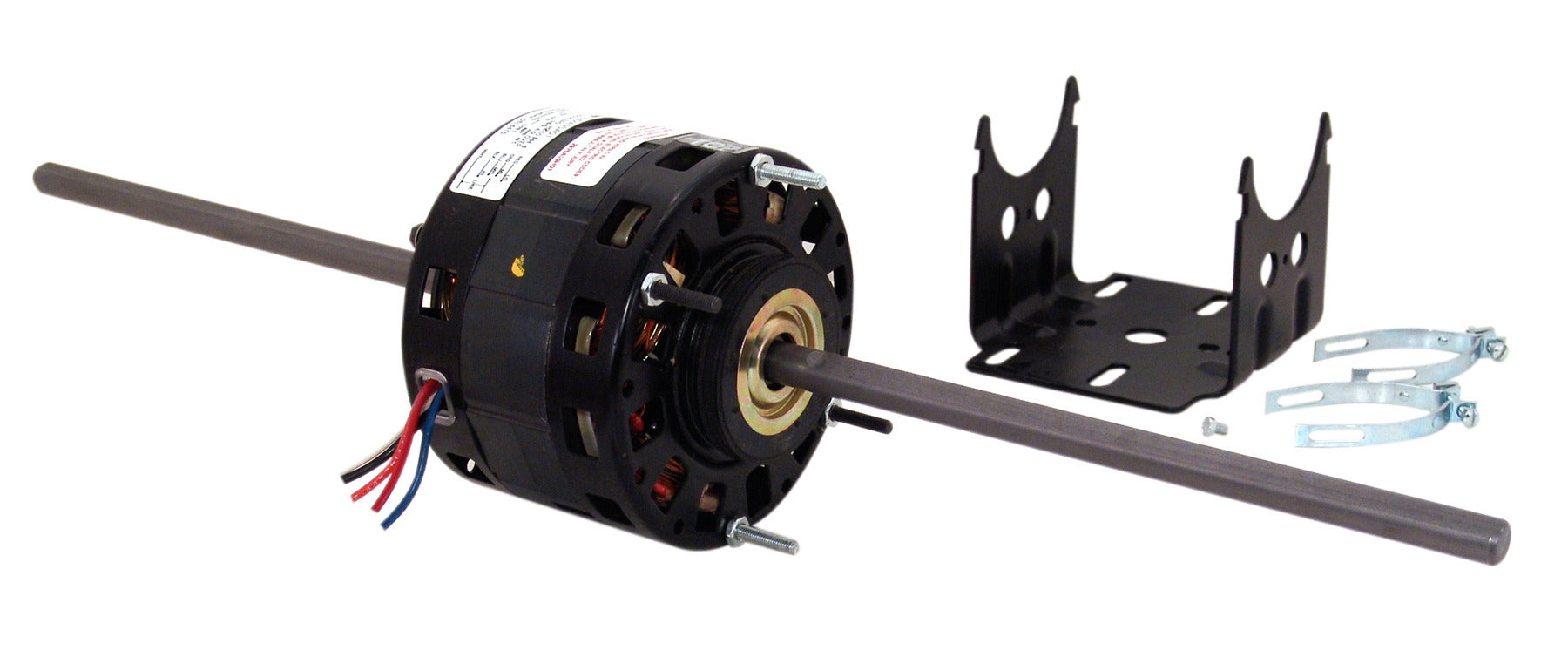

The Regal Rexnord Century Motors DBL4411 is a versatile motor designed for various industrial and commercial applications. With a power rating of 1/10HP and a voltage of 115V, this motor can efficiently power small machines, pumps, and fans. It features a four-speed design with a speed of 1550RPM, allowing you to adapt the motor's speed to specific needs.
- 1/10HP power rating
- 115V voltage
- Four-speed design (1550RPM)
Product Highlights
This motor is built with a durable cast iron housing and a heavy-duty ball bearing system for long-lasting performance. Despite its robust construction, the DBL4411 is compact and lightweight, making it easy to install and maintain. As a product from Regal Rexnord Century Motors, it is known for its high quality and reliability.
Product Information
Standard Information
-
Brand: Regal Rexnord - Century Motors
-
Item Number: DBL4411
Technical Specifications
-
Electrical Type: Shaded Pole
-
Horsepower: 1/10HP
-
RPM: 1550
-
Frame: 42Y
-
Enclosure: OAO (Open Air-Over)
-
Phase: Single
-
Voltage: 115V
-
Shaft Rotation: CCWLE (Counter Clockwise Lead End)
-
Material: Rolled Steel
-
Bearings: Sleeve/Sleeve
-
Mounting: Resilient Ring/Extended Studs
-
Amperage: 3.5
-
Shaft Diameter: 0.375 inches
-
Weight: 11.09 lbs
-
Dimensions: 23.05 inches (Length) x 7.15 inches (Width) x 7.45 inches (Height)
-
Certifications: CSA Certified, UL Recognized
-
Application: Suitable for room air conditioners, evaporative coolers, remote fan coils, and other shaft-mounted fan and blower applications
