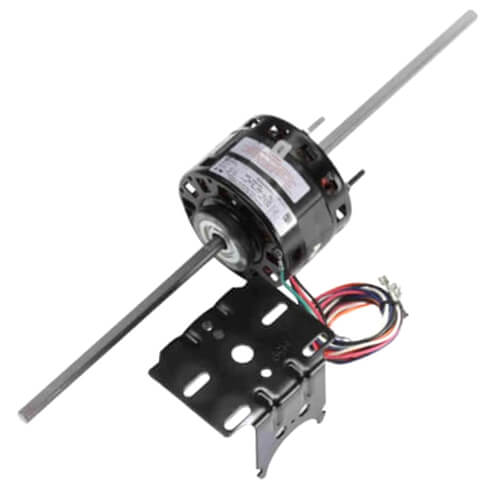

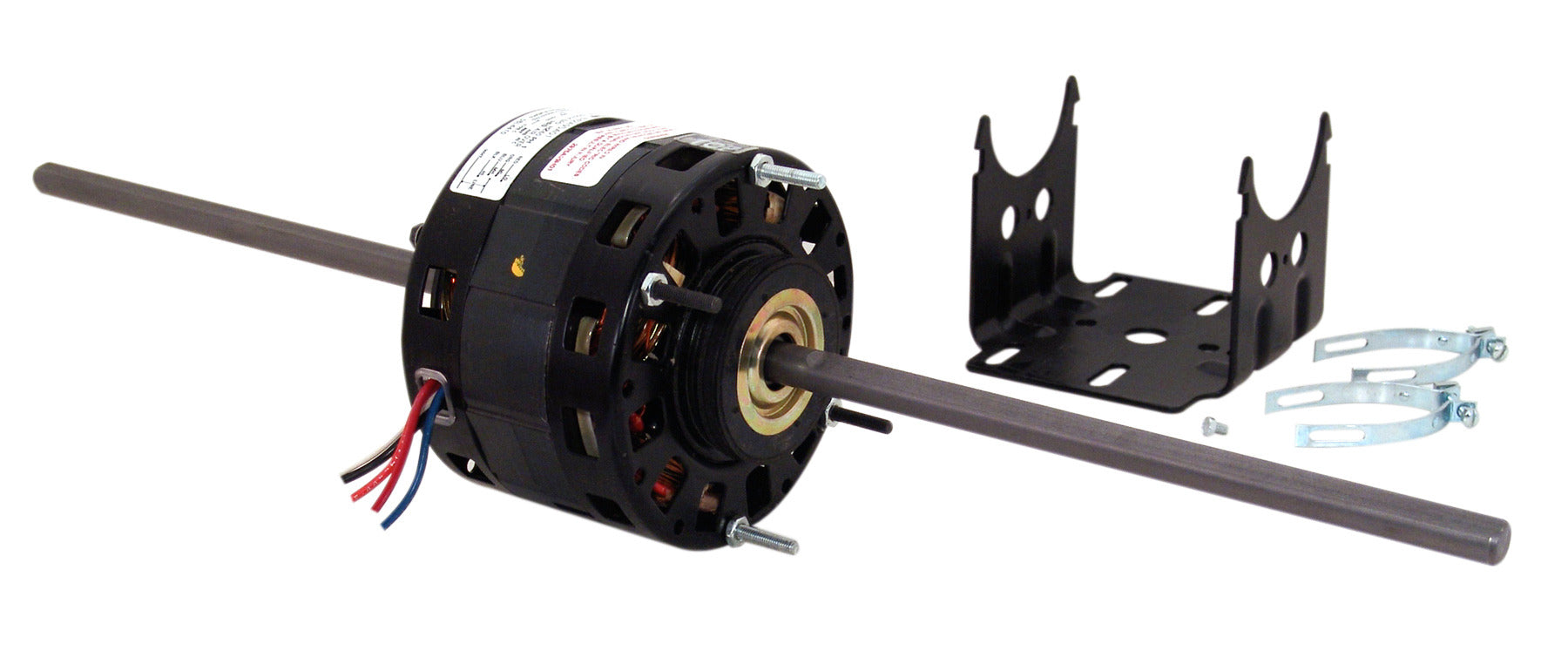

Century DBL4410 Fan Coil Air Conditioner Motor 1/10 HP 115v 1550 RPM

Product Description

The Century DBL4410 Fan Coil and Air Conditioner Motor is designed for use in HVAC systems. This motor operates at 1/10 HP and runs on 115 volts, making it suitable for various fan coil and air conditioner applications.

• Shaded Pole Motor
• 1/10 HP
• 1550 RPM

Product Highlights

This Century motor is perfect for room air conditioners, evaporative coolers, and other HVAC systems. The motor features a shaded pole design and operates at 1550 RPM, ensuring efficient performance.

Product Information

Standard Information

• Brand: Century
• MPN: DBL4410

Technical Specifications

• HP: 1/10
• Voltage: 115V
• RPM: 1550
• Frame: 42Y
• Amperage: 3.5
• Bearings: Sleeve
• Phase: Single
• Insulation Class: A
• Overload Protection: Auto
• Mounting Type: Resilient Ring / Extended Studs
• Mounting Position: Horizontal
• Shaft Diameter: 0.500 inches
• Material: Rolled Steel
• Enclosure: Open Air-Over (OAO)
• Rotation: CCWLE
• Number of Speeds: 4
• Max Ambient Temperature: 40 degrees C
• Application: Room Air Conditioners, Evaporative Coolers, Remote Fan Coils
• Country of Origin: Mexico
