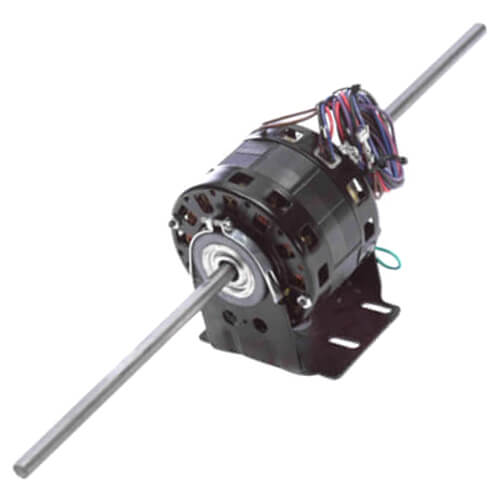

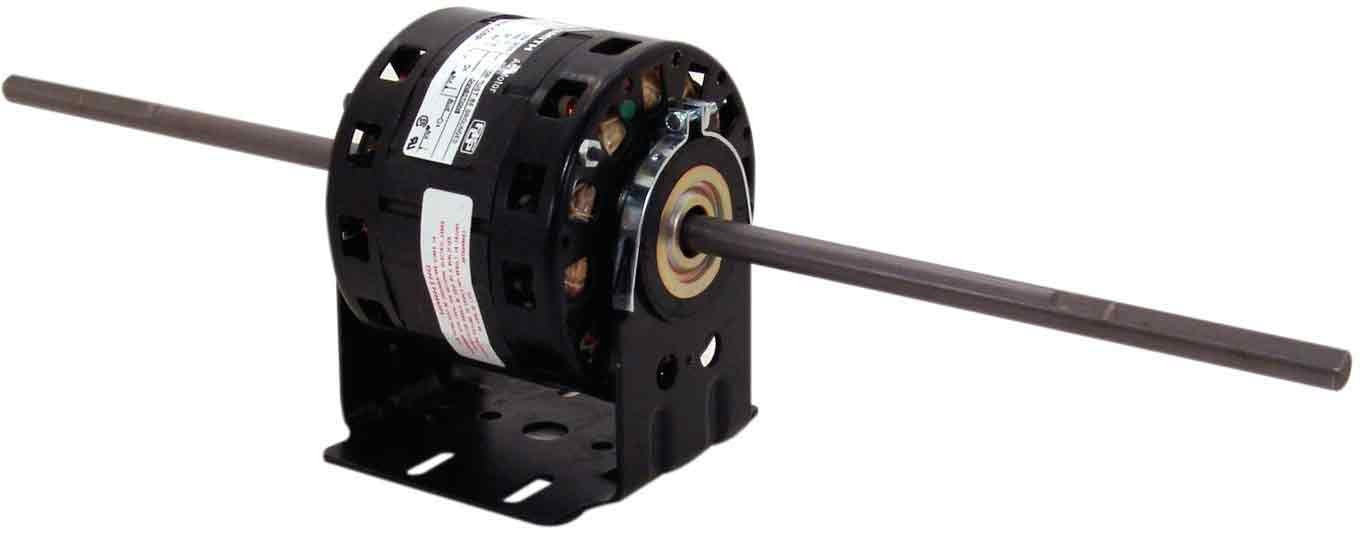

Century DB4505 5.0-Inch Frame Diameter 1/5 HP 1500 RPM 230-Volt Fan Coil

Product Description

The Century DB4505 5.0-inch fan coil offers a robust 1/5 HP motor with a speed of 1500 RPM, designed for efficient air circulation. It operates at 230 volts and draws 1.5 amps, featuring a single-phase, permanent split capacitor motor.

• Permanent split capacitor
• Automatic overload protection
• Sleeve bearing construction

Product Highlights

Century DB4505 is ideal for HVAC systems, fan coils, and air conditioner motors, providing reliable operation with its sleeve bearing and automatic overload protection.

Product Information

Standard Information

• Brand: Century
• MPN: DB4505

Technical Specifications

• Frame Diameter: 5.0 inches
• Horsepower: 1/5 HP
• Speed: 1500 RPM
• Voltage: 230 volts
• Amperage: 1.5 amps
• Orientation: Horizontal
• Mounting Type: Resilient base
• Insulation Class: A
• Sleeve Bearing: Yes
• Overload Protection: Automatic
• Rotation: CCWLE
• Poles: 4
• Phase: Single
• Enclosure: Open Air Over
• Max Ambient Temperature: 104°F
• Shaft Dimensions: 9-5/16 x 1/2 x 9-5/16 inches
