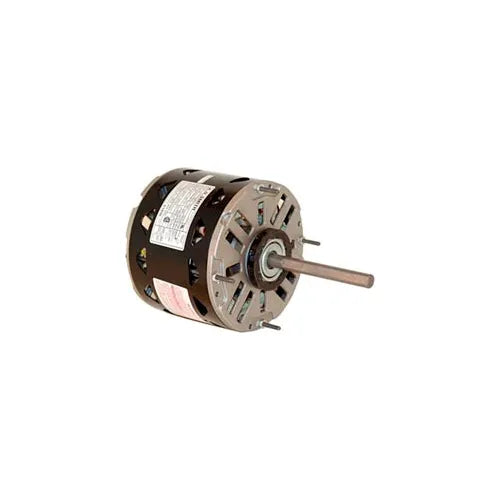

Century Motors D0002 Blower Motor 1/4 HP 1075 RPM 2 Speed

Product Description

The Century Motors D0002 blower motor is a 1/4 HP, 2-speed motor designed for indoor use. This standard efficiency blower motor operates at 208-230V, 1-Phase, and 60 Hz, with a rated speed of 1075 RPM. It features open/drip proof enclosure and resilient mounting.

• Designed for indoor use.
• Features 2 speeds and operates at 1075 RPM.
• Thermally protected with class B insulation and 40°C ambient temperature.

Product Highlights

The Century Motors D0002 is suitable for fan coils and dual wheel blower applications. It has a 5.6" diameter, a 1/2" diameter shaft with flat, and 25" leads.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: D0002

Technical Specifications

• Shaft Length: 1-7/8 in
• Shaft Diameter: 0.5 in
• Bearing Type: Sleeve
• Horsepower: 1/4 HP
• Number of Speeds: 2
• Hertz: 60 Hz
• Rotation: Reversible
• Motor RPM 60 Hertz: 1075 rpm
• Enclosure Type: Open Air Over
• Mounting Location: Resilient
• Voltage: 208-230 V
• Phase: 1
• Full Load Amps: 1.8 FLA
• Manufacturers Part Number: D0002
• Rated RPM: 1075
• Service Factor: 1.0
• RPM Range: 1001-1100 rpm
• Brand: Century
• Product Type: PSC (Permanent Split Capacitor)
• Amps: 1.8
• Mounting: Band/Ring/Stud
• Motor Diameter: 5-5/8"
• Thermal Protection: Automatic
• Maximum Ambient Temperature: 40° C
• Insulation Class: B
• Duty Cycle: Continuous
• Capacitor: 5MFD @ 370VAC Required
• Output KW: 0.19 kW
• Frequency: 60 Hz
• Current: 1.8 A
• Duty: Air Over
• UL: Recognized
• CSA: Y
• CE: N
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Motor Orientation: Horizontal
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 9.11 in
• Frame Length: 3.50 in
• Shaft Extension: 4.5 in
