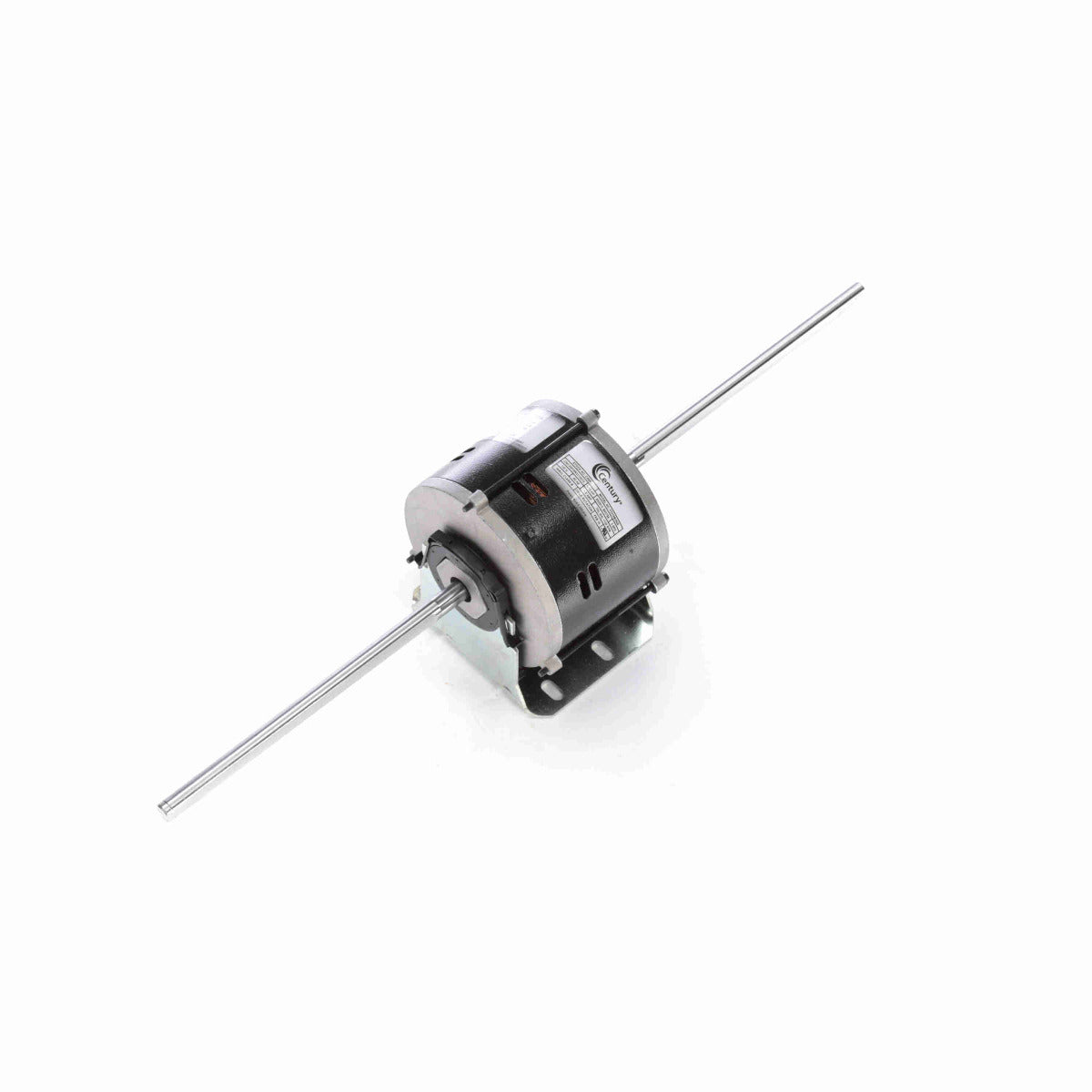

CENTURY MOTORS CS89 Fan Coil Replacement Motor

Product Description

The Century Motors CS89 is a one-tenth horsepower fan coil replacement motor suitable for air conditioning systems. This motor operates at one hundred twenty volts and offers three operational speeds of one thousand one hundred, nine hundred, and seven hundred RPM. The motor features a forty-two frame design with an open air over enclosure and is built for clockwise lead end rotation. It is an electronically commutated motor (ECM) that includes ball bearings and a resilient base for easy mounting.

• Three speed settings for flexible operation
• Robust open air over design
• Compatible with various fan coil and air conditioning applications

Product Highlights

The CS89 provides reliable performance for HVAC systems, ensuring effective air circulation.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: CS89

Technical Specifications

• Horse Power: 1/10 Hp
• Output KW: 0.07 kW
• Input Voltage: 120 V
• Speed: 1100, 900, 700 RPM
• Number of Speeds: 3
• Frequency: 60 Hz
• Current: 1.6 A
• Phase: 1
• Frame: 42
• Enclosure: Open Air Over
• Rotation: Clockwise Lead End
• Mounting Type: Resilient Base
• Shaft Diameter: 0.500 in
• Shaft Type: Flat
• Insulation Class: B
• Ambient Temperature: 40 °C
• Service Factor: 1
• Thermal Protection: Automatic
• Duty: Continuous
• Starting Method: Across The Line
• Poles: 6
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Steel
• Frame Length: 3.80 in
• Shaft Extension: 9.3 x 1/2 x 9.3 in
• Electrical Type: Electronically Commutated Motor
• Certifications: UL Recognized, CSA Y, CE N
