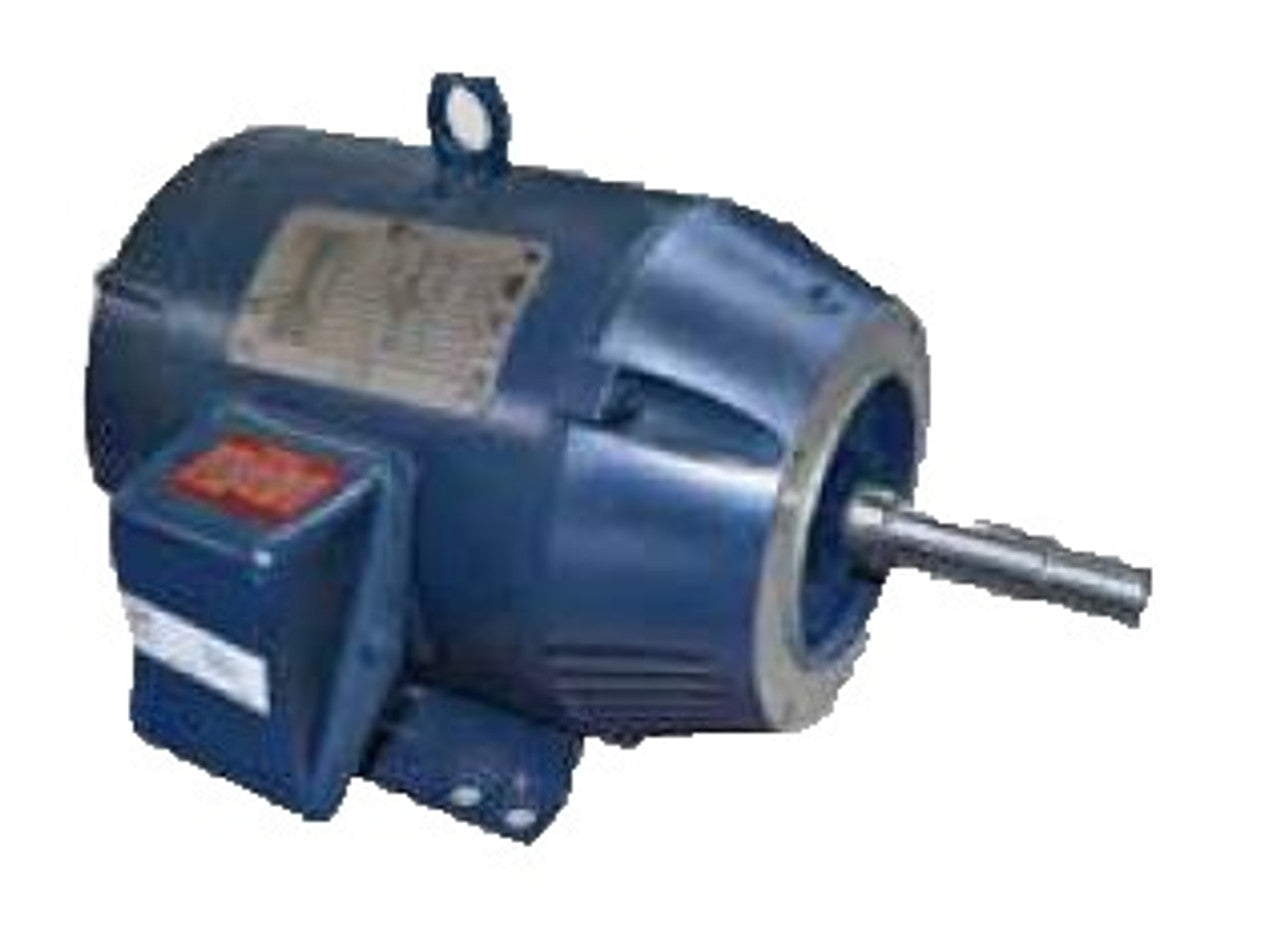

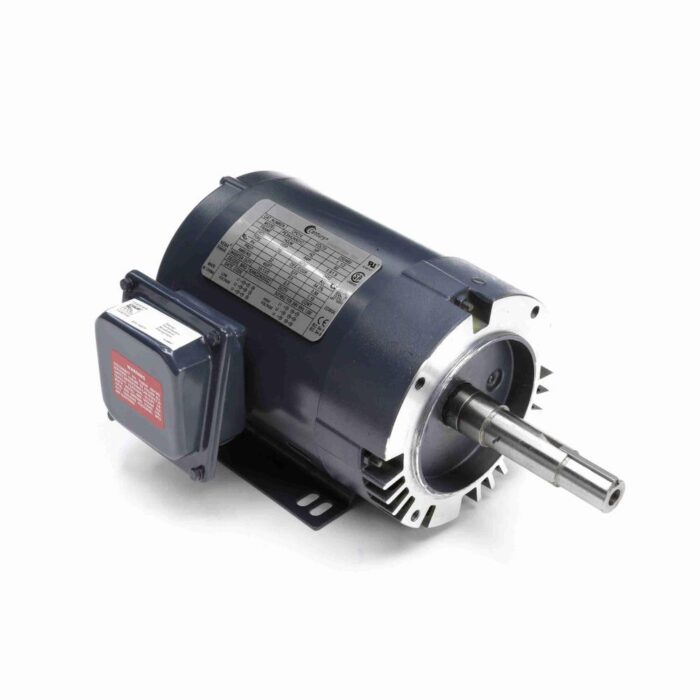

CENTURY MOTORS CPO14 Close Coupled Pump Motor

Product Description

The CENTURY MOTORS CPO14 is a close-coupled pump motor built for various applications. This motor is suitable for inverter duty and meets efficiency standards for reliable performance.

• Designed for close-coupled pump applications.
• Rated for inverter duty with a rigid base.
• UL approved with rolled steel construction.

Product Highlights

The CPO14 features a Class F insulation system and a robust design, making it an excellent choice for tasks requiring consistent performance.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: CPO14

Technical Specifications

• Horsepower: 1.5 hp
• Output: 1.5 HP
• RPM: 3600
• Voltage: 208-230/460 V
• Phase Type: Single Phase
• Frame Size: 143JM
• Enclosure: ODP (Open Drip Proof)
• Service Factor: 1.15
• Ambient Temperature Rating: 40°C
• Material: Rolled Steel
• Efficiency: 84.0% NEMA Nominal Efficiency
• Rotation: Reversible
• Mounting Type: C-face with rigid base
• Full Load Amps: 4.2-3.8/1.9 A
• Bearings: Ball / Ball
• Shaft dimensions (dia x len): 7/8 x 4.26
• Electrical Type: POLYPHASE
• Starting Method: Across The Line
• Inverter Duty: 10:1 VT
• Speed Ratio: 4:1 for constant torque, 6:1 for variable torque
• Weight: 1 lbs
• C Dimension: 13.8
