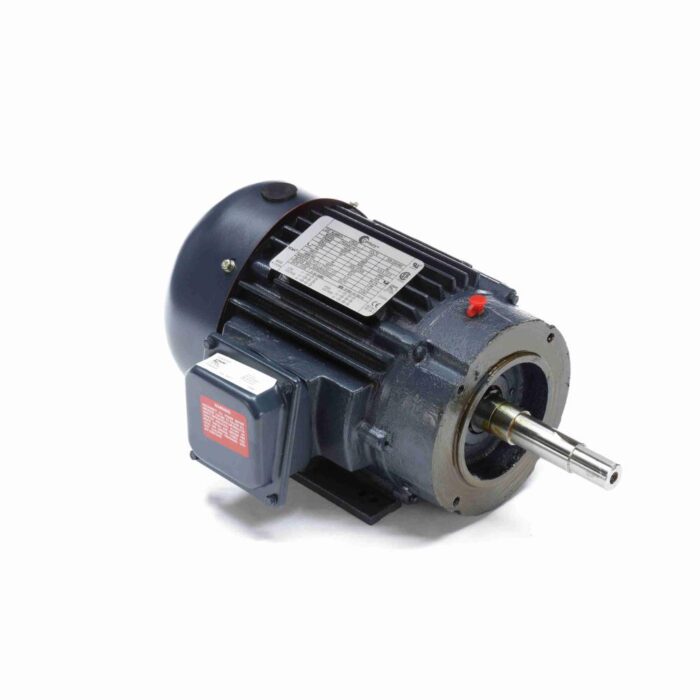

CENTURY MOTORS CPE20 Close Coupled Pump Motor

Product Description

The CENTURY MOTORS CPE20 is a close-coupled pump motor suitable for various pump applications. This three-phase motor features a TEFC (Totally Enclosed Fan Cooled) enclosure made from durable cast iron. Designed to ensure stable mounting with its rigid base, the CPE20 is optimized for horizontal mounting and allows for reversible rotation.

• Designed for close-coupled pump applications.
• Features a TEFC enclosure for durability.
• Suitable for horizontal mounting with reversible rotation capability.

Product Highlights

This pump motor is ideal for trade professionals looking for reliability in demanding environments.

Product Information

Standard Information

• Brand: Century Motors
• MPN: CPE20

Technical Specifications

• Horsepower: 2 HP
• RPM: 3600
• Input Voltage: 208-230/460 V
• Frequency: 50/60 Hz
• Phase: 3
• Frame Size: 145JM
• Enclosure Type: TEFC
• Enclosure Material: Cast Iron
• Mounting Type: C-Face/Rigid
• Shaft Diameter: 1-5/32 inches, 1-7/8 inches Keyed
• Rotation: Reversible
• Service Factor: 1.15
• Bearings: Ball
• Maximum Ambient Temperature: 40°C
• Insulation Class: F
• Duty Cycle: Continuous
• Full Load Amps: 5.4-4.9/2.45 A
• Shaft Dimensions (diameter x length): 7/8 x 4.26 inches
• Electrical Type: Polyphase
• Starting Method: Across The Line
• Efficiency: 84.0% NEMA nominal
• C Dimension: 16.75 inches
• Inverter Duty: 2:1 CT/10:1 VT
