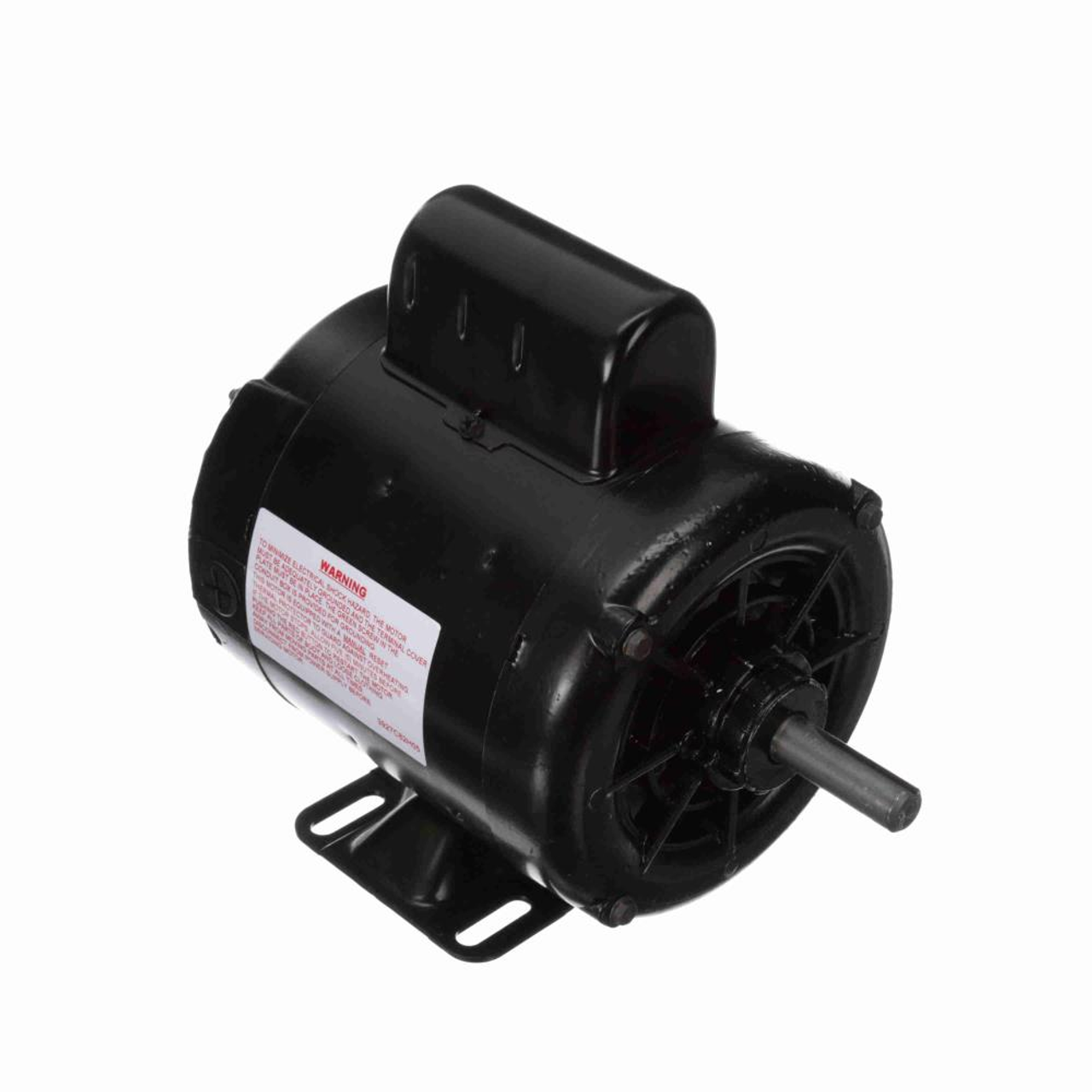

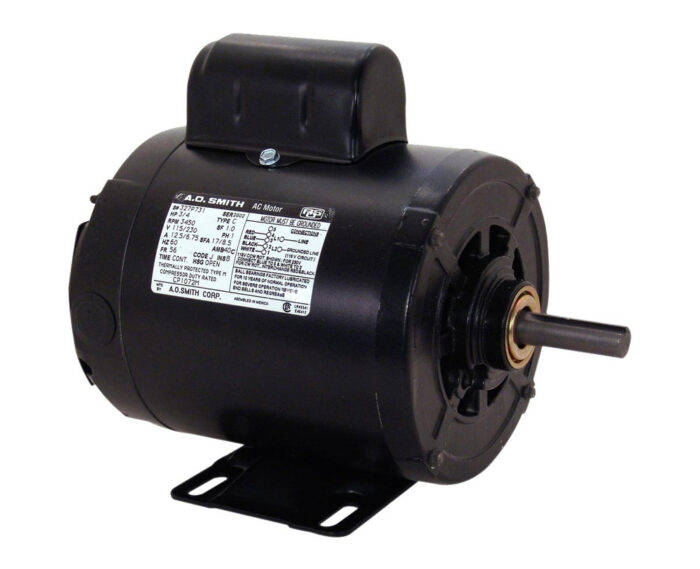

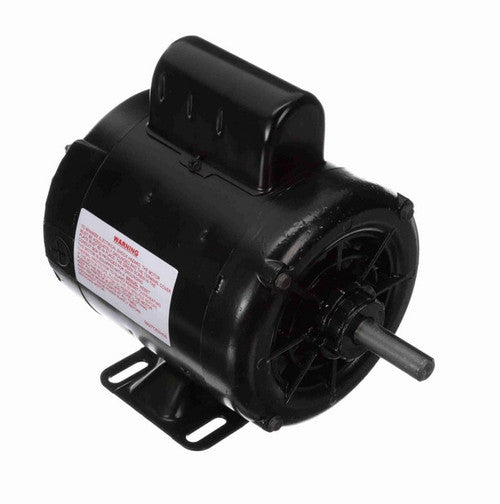

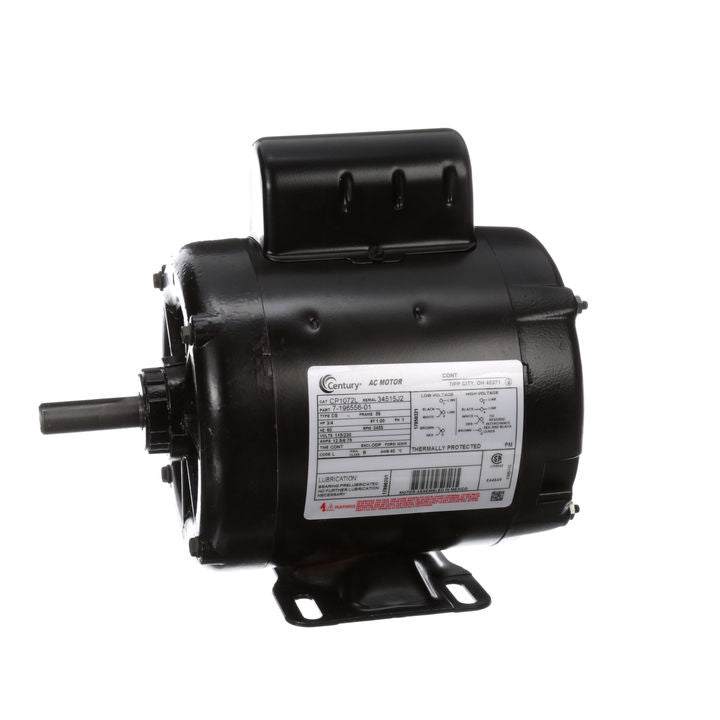

CENTURY MOTORS CP1072L Electric Motor 3/4 hp

Product Description

The CENTURY MOTORS CP1072L is an electric motor suitable for air compressors and pressure washers. This motor features a capacitor start and operates at 115 or 230 Volts. The NEMA 56 frame design is robust and built for performance. It includes a manual thermal protector for safety and operates at a speed of 3450 to 3600 RPM.

• Single phase design
• Reversible rotation
• Open drip proof enclosure

Product Highlights

This motor is equipped with ball bearings for enhanced reliability and has Class B insulation for optimal heat resistance.

Product Information

Standard Information

• Brand: Century
• MPN: CP1072L

Technical Specifications

• Horsepower: 3/4 hp
• Power: 0.56 kW
• Speed: 3600 RPM
• Voltage: 115/230 V
• Full Load Amps: 12.5/6.75 amps
• Frequency: 60 Hz
• Phase: 1
• Frame Size: 56
• Enclosure: Open Drip Proof
• Shaft Size: 1 7/8 x 5/8 Diameter
• Rotation: Reversible
• Service Factor: 1.0
• Thermal Protection: Manual
• Insulation Class: B
• Ambient Temperature: 40 C
• Duty: Continuous
• Motor Type: AC Motor
• Application: Air compressors found in pressure washer units
• Base: Rigid Base
• Bearings: Ball Bearings
• Frame Material: Rolled Steel
• Weight: 24.00 lb
• Number of Speeds: 1
• Pole: 2
