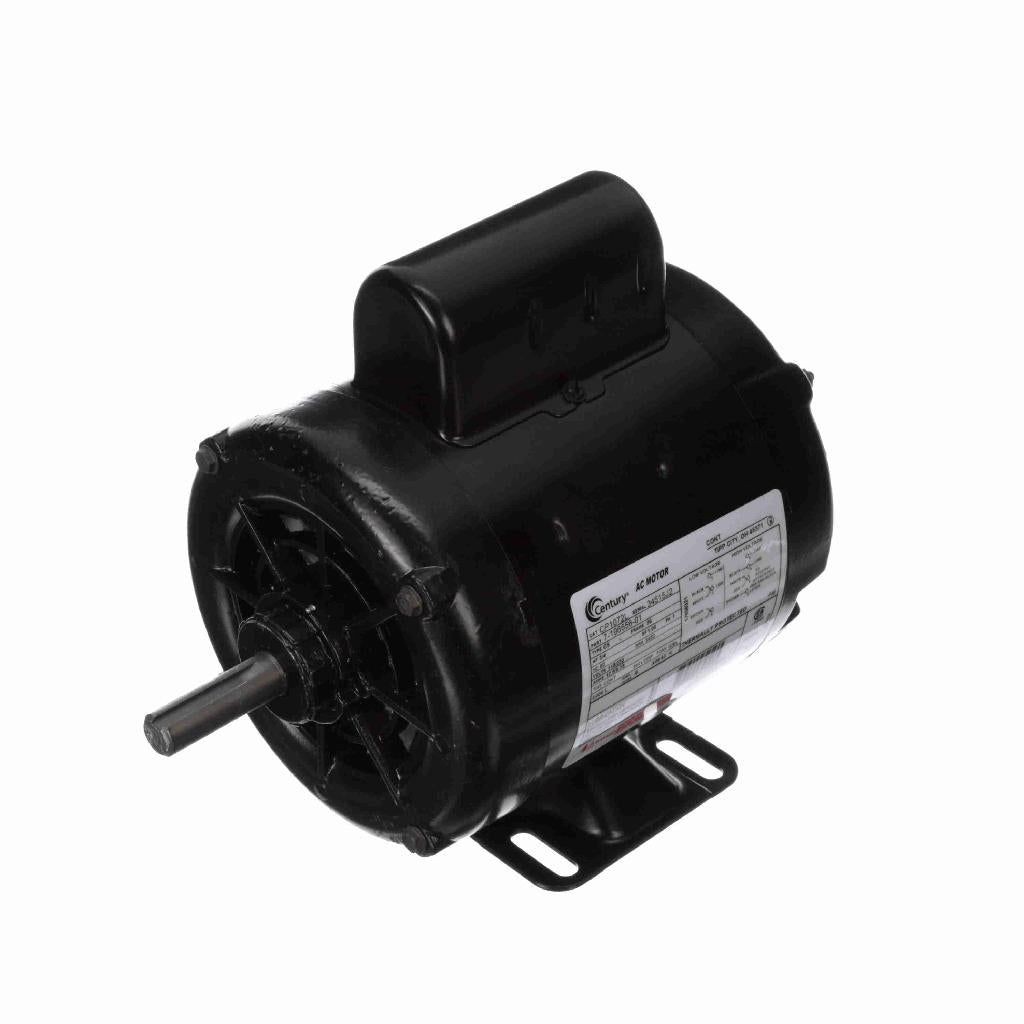

Century Motors CP1072L Air Compressor Motor, 3/4 HP, 1 Ph, 60 Hz, 115/230 V, 3600 RPM, 56 Frame, ODP

Specifications:
UL recognized component listing and CSA certification ensures the product is safe for use.
High starting torque on start-up, to achieve a higher starting load required in air compressor applications.
Capacitor start or capacitor run for low-amp, high-efficiency, as noted.
Heavy-duty construction ensures motor durability.

Specifications:
Output HP:3/4 Hp
Output KW:0.56 k
W
Frequency:60 Hz
Voltage:115/230 V
Current:12.5/6.75 A
Speed:3450 rpm
Service Factor:1
Phase:1
Duty:Continuous
Insulation Class:B
Frame:56
Enclosure:Open Drip Proof
Thermal Protection:Thermally Protected
Ambient Temperature:40 C
UL:Recognized
CSA:Y
CE:N
Number of Speeds:1
Electrical Capacitor Start, Induction Run, Single Or Dual Voltage
Starting Method:Across The Line
Poles:2
Rotation:Reversible
Mounting:Rigid Base
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Keyed
Overall Length:10.57 in
Frame Length:4.63 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
