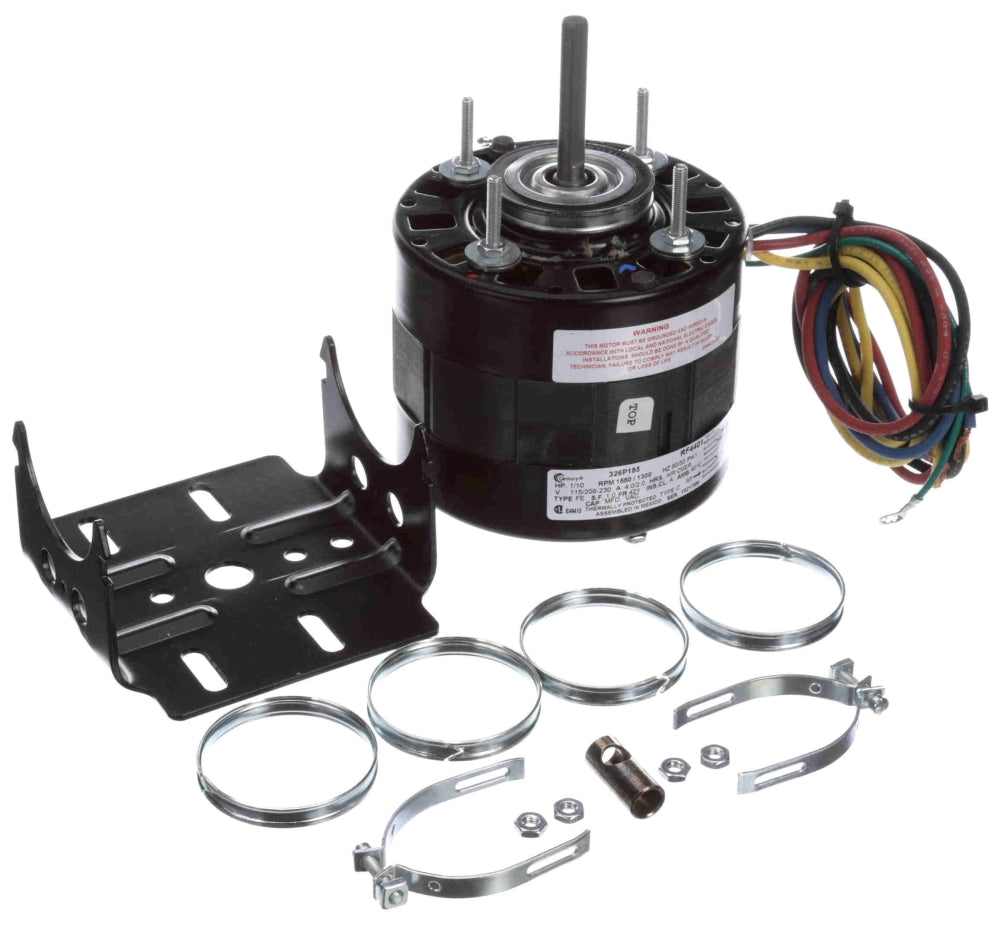

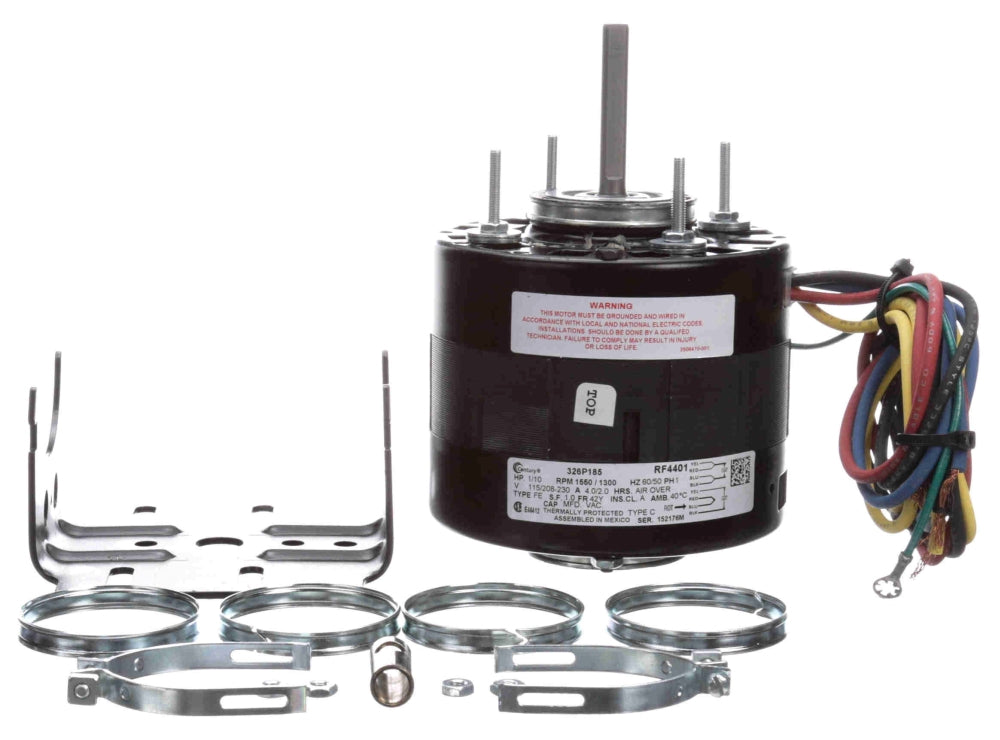

Regal Beloit Corporation RF4401 Refrigeration Motor 1/10 HP 115/208 to 230 VAC

Product Description

The Regal Beloit Corporation RF4401 is a refrigeration motor with a power rating of one-tenth horsepower. It operates on a voltage range of one hundred fifteen to two hundred thirty volts, accommodating both single-phase and three-phase systems. This motor is designed to meet various industrial needs, such as refrigeration and unit heaters.

• 1/10 HP power rating
• Voltage range: 115/208 to 230 VAC
• Speed rating: 1550 RPM

Product Highlights

The RF4401 motor offers reliable performance and is suitable for applications that include refrigeration and space heating. It features an open air-over enclosure and is reversible for flexible installation options.

Product Information

Standard Information

• Brand: Century Motors
• MPN: RF4401

Technical Specifications

• Power Rating: 1/10 HP
• Voltage Rating: 115/208 to 230 Volt AC
• Frequency Rating: 50/60 Hertz
• Motor FLA: 4/2 Amp
• Speed Rating: 1550 RPM
• Frame Size: 42Y
• Insulation Class: A
• Weight: 10 lbs
• Mounting Type: Resilient Ring, Extended Stud
• Rotation Type: Counter Clockwise Shaft End
• Bearing Type: Sleeve (Drive End/Opposite Drive End)
• Ambient Temperature Rating: 40 Deg C
• Includes: 29 Inch Lead
