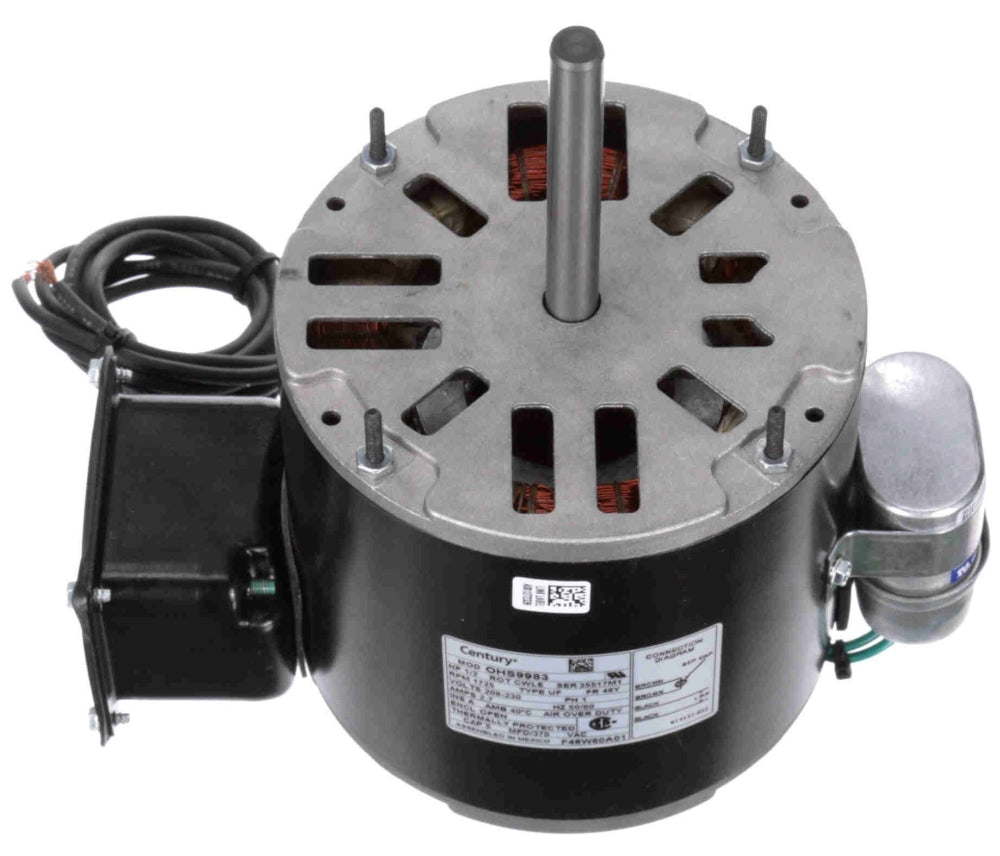

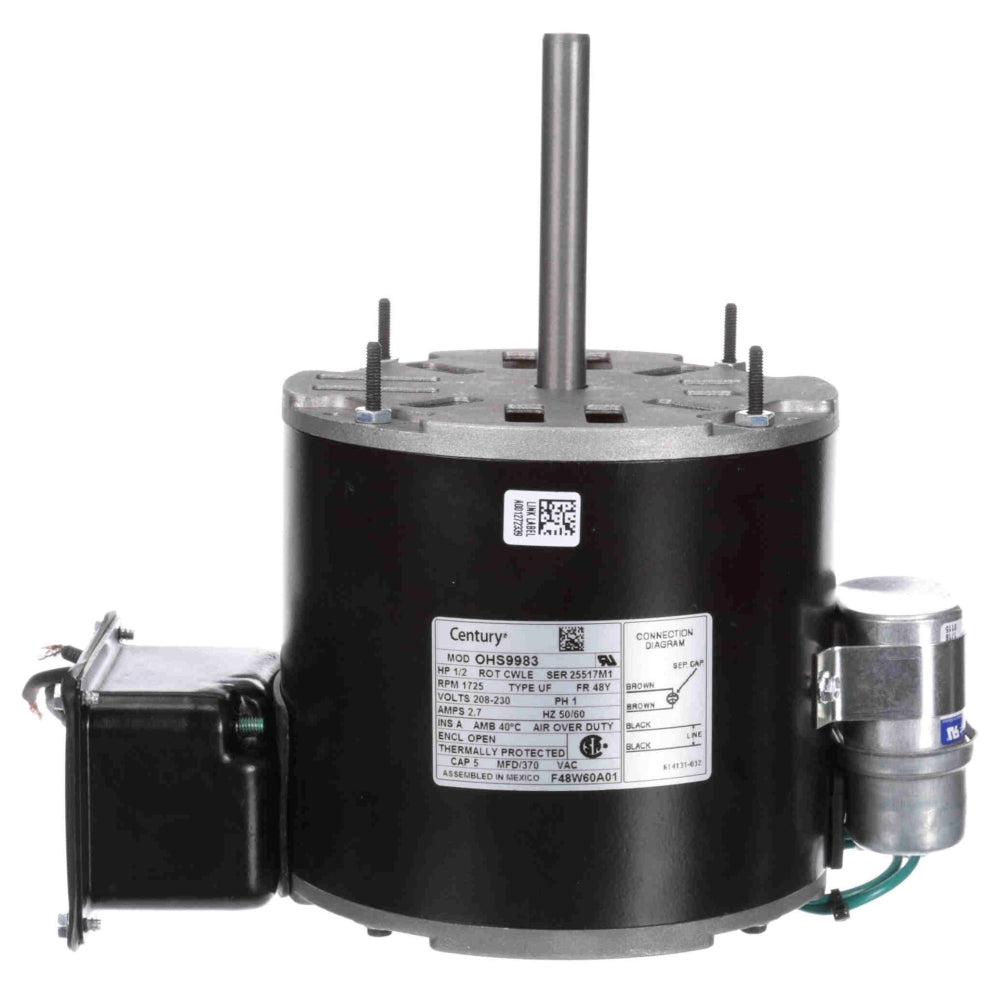

Century Motors OHS9983 1/2 HP 208-230VAC 50/60Hz Motor

Product Description

The Century Motors OHS9983 is a highly functional HVAC/R motor designed for durability and efficiency. This motor operates at a power rating of one-half horsepower and is compatible with 208 to 230 Volt AC. Its specifications include a speed rating of one thousand seven hundred twenty-five RPM and a design that accommodates a variety of industrial applications. This motor is ideal for ventilation systems, refrigeration, and air conditioning applications.

• Power Rating: 1/2 HP
• Voltage Compatibility: 208 to 230 VAC
• Frame Size: NEMA 48Y

Product Highlights

The motor features a permanent split capacitor for efficient operation and is thermally protected for enhanced reliability. The extended stud mount allows for easy installation in various systems. Designed for horizontal orientation, the motor is built with a rolled steel frame and provides robust performance across various environments.

Product Information

Standard Information

• Brand: Century Motors
• MPN: OHS9983

Technical Specifications

• Power Rating: 1/2 HP
• Voltage Rating: 208 to 230 Volt AC
• Frequency Rating: 50/60 Hertz
• Motor FLA: 2.7 Amps
• Frame Size: NEMA 48Y
• Insulation Class: A
• Mounting Type: Extended Stud
• Speed Rating: 1725 RPM
