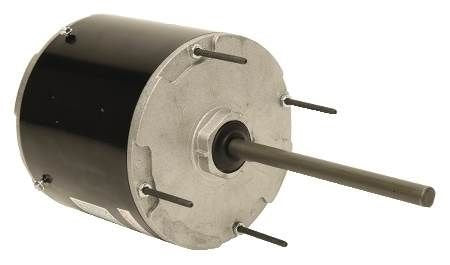

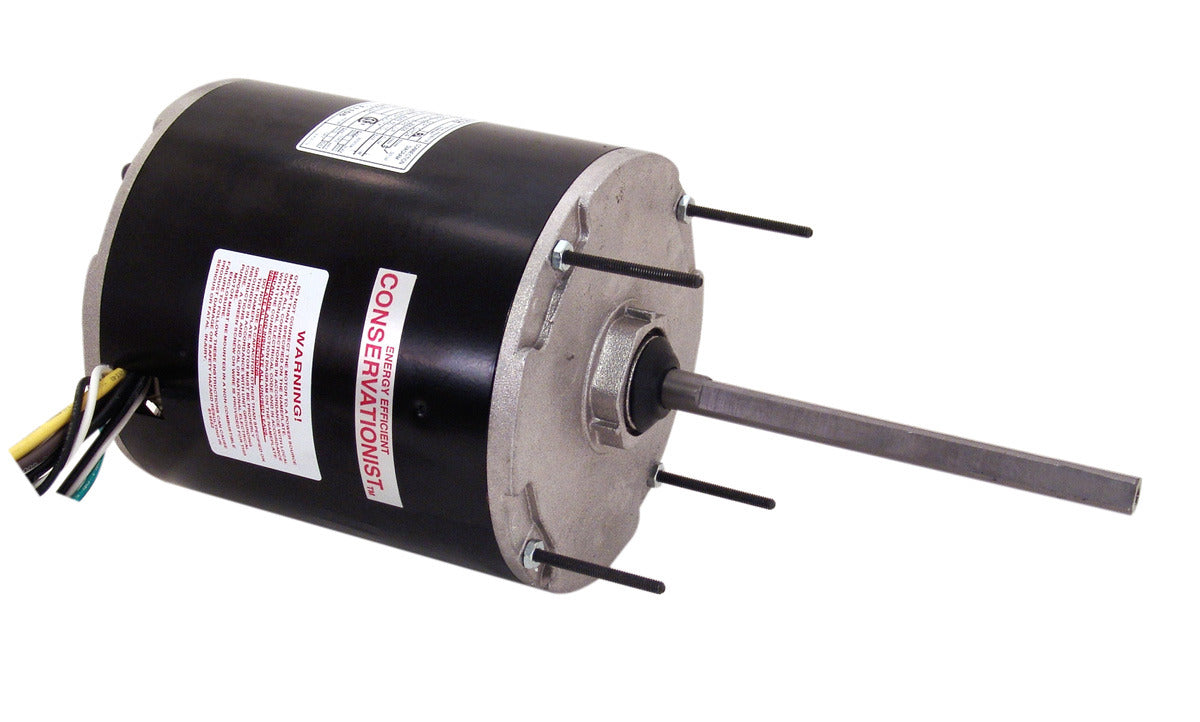

Century F1106 Condenser Fan Motor 1HP 1075RPM 208-230V

Product Description

The Century F1106 Condenser Fan Motor is a versatile and efficient motor designed for HVAC, refrigeration, and heat pump applications. Built by Century Motors, this motor offers dependable performance with a 1 horsepower output, operating on 208-230V. The motor's rotational speed is 1075 RPM, making it suitable for various industrial uses.

• Permanent Split Capacitor (PSC) motor
• Rated at 1 horsepower
• Operates at 1075 RPM

Product Highlights

This motor features a reversible rotation, allowing for flexible installation in any orientation. The unit is designed for open drip-proof (ODP) environments and includes an automatic protector for added safety.

Product Information

Standard Information

• Brand: Century Motors
• MPN: F1106

Technical Specifications

• Type: Permanent Split Capacitor (PSC)
• Application: Condenser, Heat Pump, Refrigeration
• Enclosure: Open Drip Proof (ODP)
• Diameter: 5-5/8 inches
• Horsepower: 1 HP
• Volts: 208-230V
• Amperage: 5.4A
• RPM: 1075
• Phase: Single
• Speed: 1
• Frame: 48Y
• Mounting: Extended Studs
• Rotation: Reversible
• Material: Rolled Steel
• Bearings: Ball/Ball
• Insulation Class: B
