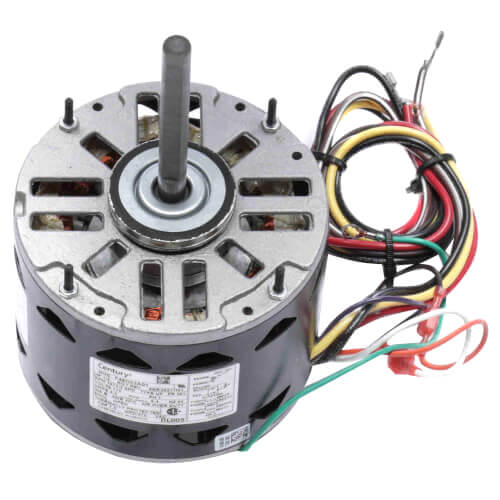

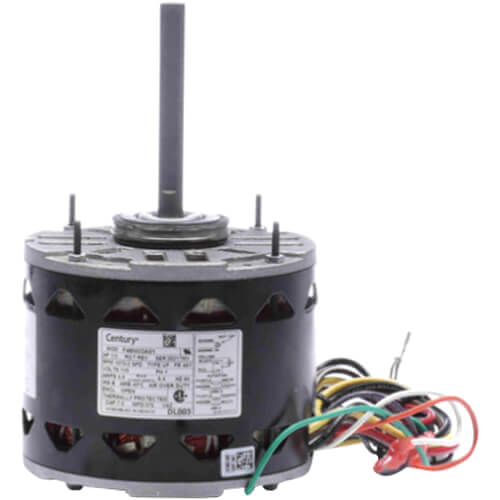

Century DL003 5-5/8 3-Speed Standard Efficiency Indoor Blower Motor 115V 1075 RPM 1/3 HP

Product Description

The Century DL003 5-5/8 3-Speed Standard Efficiency Indoor Blower Motor offers reliable performance for HVAC systems. Designed for indoor use, this motor operates at 115 volts and delivers up to 1075 RPM, making it suitable for a variety of air handling applications.

• 115 volts, 1075 RPM
• Three-speed motor operation
• 1/3 HP power rating

Product Highlights

This blower motor from Century features class B insulation and an automatic protector for enhanced reliability. The open construction and sleeve bearing ensure durability and efficient performance. Ideal for HVAC professionals, the motor includes a permanent split capacitor and can operate continuously in an air-over environment.

Product Information

Standard Information

• Brand: Century
• MPN: DL003
• Product Name: 5-5/8 3-Speed Standard Efficiency Indoor Blower Motor (115V, 1075 RPM, 1/3 HP)

Technical Specifications

• Voltage: 115V
• Amperage: 4.9 rated, 6.4 max
• Horse Power: 1/3 HP
• Speed: 1075 RPM
• Type: Permanent Split Capacitor
• Frame: 48Y
• Mount: Resilient Rings
• Phase: 1
• Poles: 6
• Insulation Class: B
• Enclosure Type: Open
• Bearings: Sleeve
• Overload Protection: Automatic
• Max Ambient Temperature: 104°F
• Motor Orientation: Horizontal
• Resilient Ring Diameter: 2.25 inches
• Ring-to-Ring Dimension: 4.67 inches
• Shaft Dimensions: 0.5 x 4.5 inches
