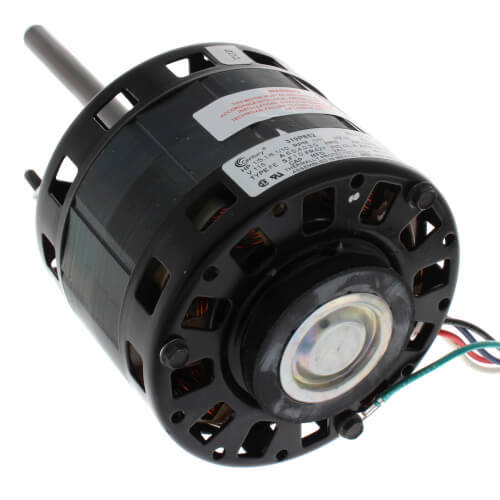

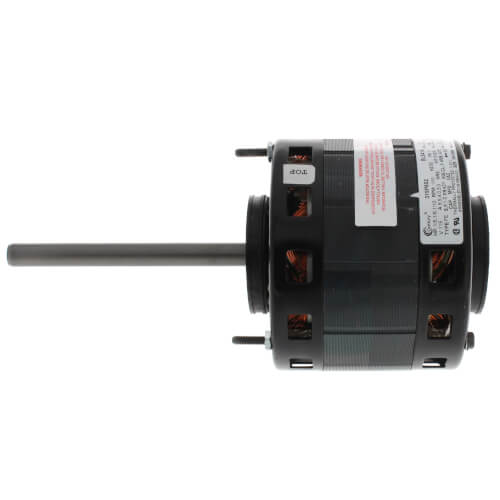

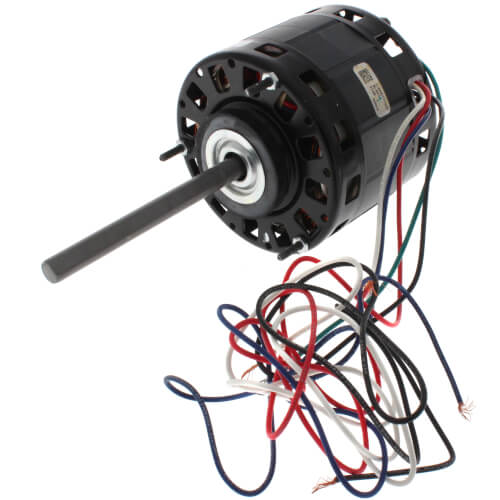

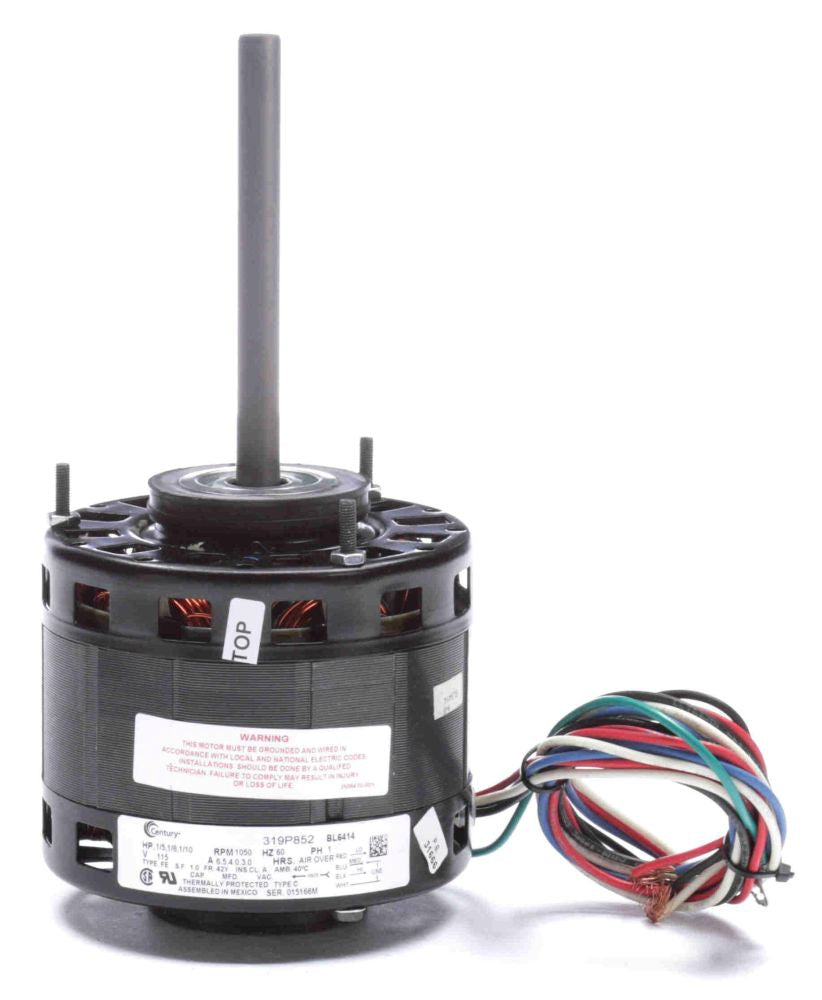

Century BL6414 1/5-1/8-1/10HP 115V 1050RPM Fan And Blower Motor

Product Description

The Century BL6414 1/5-1/8-1/10HP Fan and Blower Motor is designed for various HVAC applications. This motor operates at 115V with a speed of 1050 RPM, making it ideal for furnace blowers, attic ventilators, and air handlers.

• Voltage: 115V AC
• Three-speed
• Shaded pole type

Product Highlights

This multi-functional motor features automatic thermal protection and a resilient ring mount for easy installation. It is designed with a NEMA 42Y frame made of durable rolled steel.

Product Information

Standard Information

• Brand: Century Motors
• MPN: BL6414

Technical Specifications

• Horsepower: 1/5, 1/8, 1/10 HP
• Voltage: 115V AC
• Frequency: 60 Hertz
• Amperage: 6.5A, 4A, 3A
• Rotation: Counterclockwise Lead End (CCWLE)
• Shaft Type: Flat
• Frame Material: Rolled Steel
• Mounting: Resilient Ring
• Weight: 11 pounds
• Insulation Class: A
• NEMA Frame Size: 42Y
• Bearings: Sleeve (Drive End/Opposite Drive End)
• Number of Poles: 6
• Service Factor: 1
• Ambient Temperature Rating: 40°C
• Speed: 1050 RPM
• Enclosure Type: Open Air-Over
