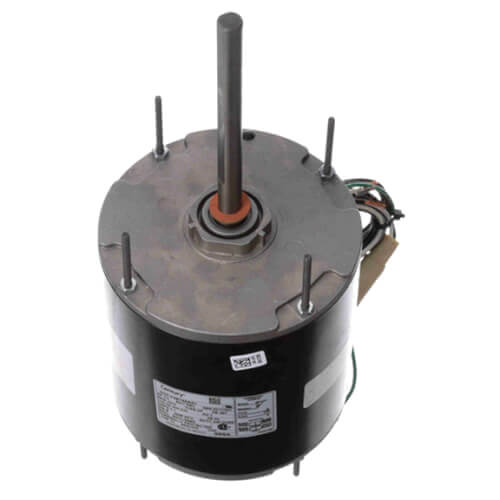

Century Motors 668A Condenser Fan Motor 3/4 HP 208-230V 1075 RPM

Product Description

The Century Motors 668A is a robust outdoor condenser fan motor, well-suited for various HVAC applications, including condensers, heat pumps, and refrigeration units. This motor is engineered to offer reliable performance and durability.

• Permanent split capacitor motor with a 3/4 horsepower rating, operating at 208-230 volts.
• Efficient 1075 RPM speed with single-phase operation and reversible rotation.
• Rugged ball bearings and totally enclosed motor ensure long service life even in harsh environments.

Product Highlights

This motor features a versatile all-angle mount capability and is designed with a 48Y frame, accommodating a wide range of installation settings.

Product Information

Standard Information

• Frame Type: 48Y
• Phase: Single

Technical Specifications

• Voltage: 208-230V
• Power: 3/4 HP
• Speed: 1075 RPM
• Capacitor: 15 uF at 370 V
• Mount Type: Stud/Belly Band/ThruBolt
• Insulation Class: Class B
• Protection: Automatic
• Service Factor: 1.0
