Product Description

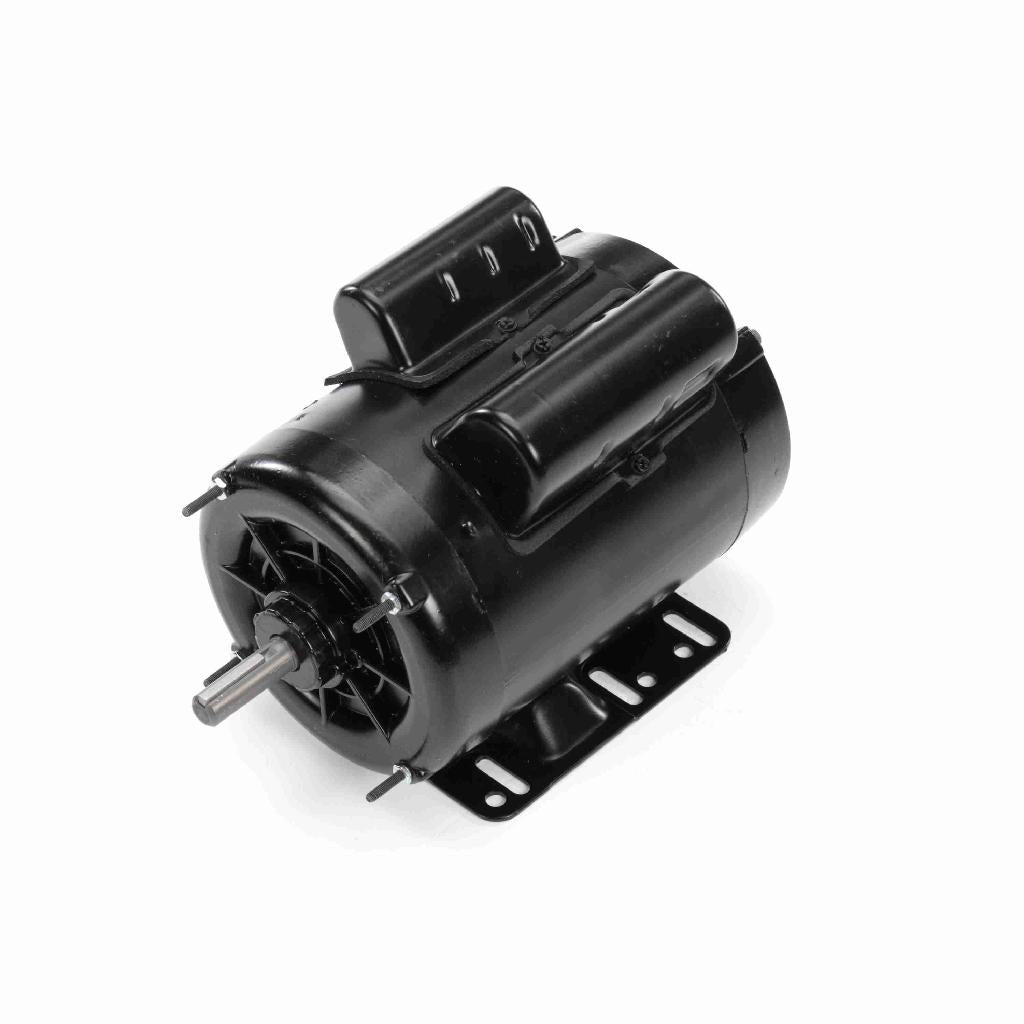

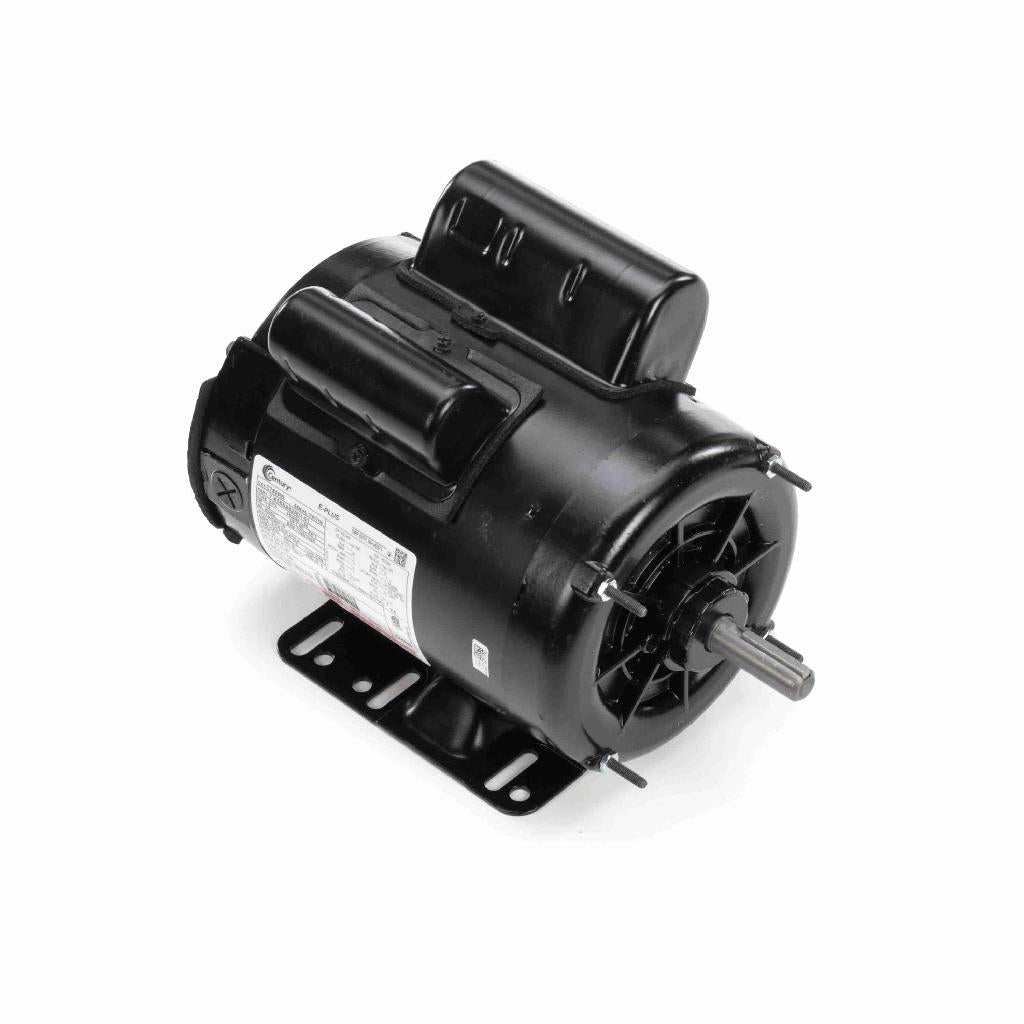

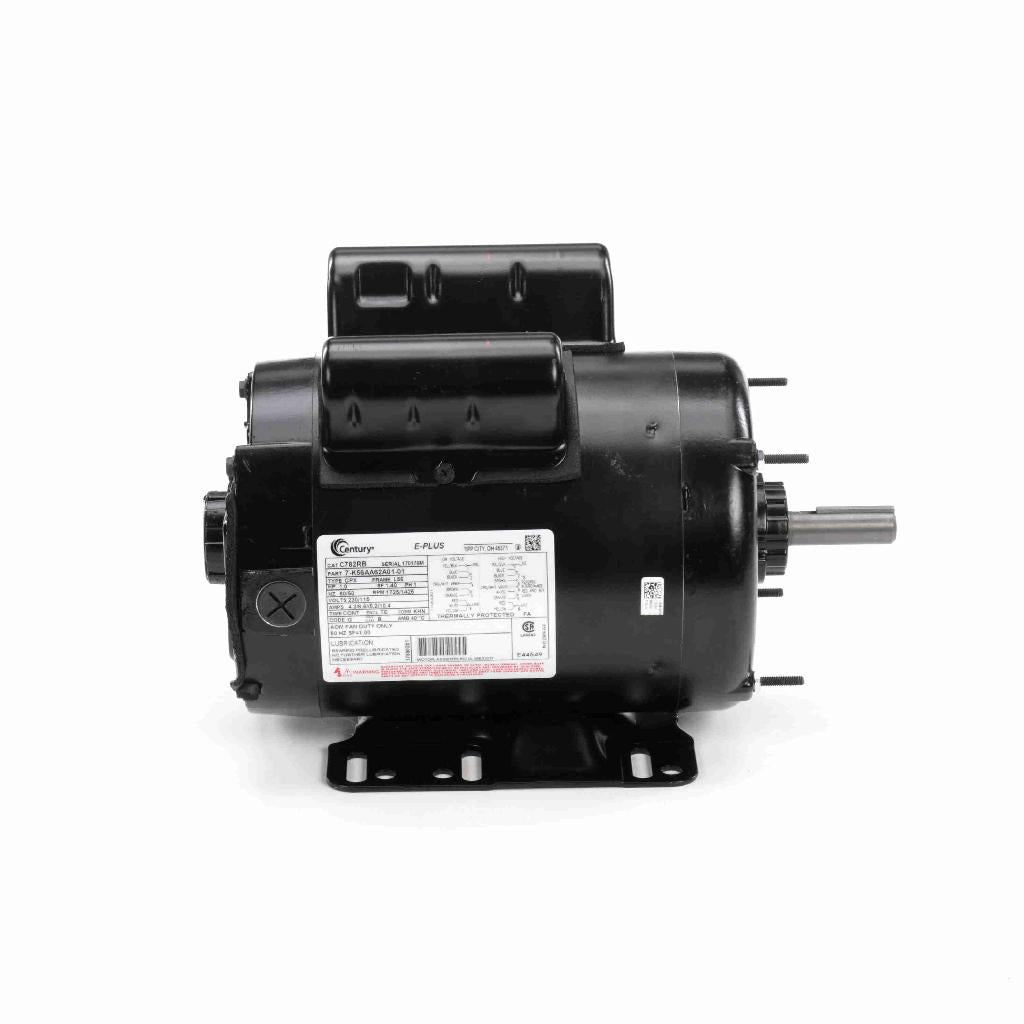

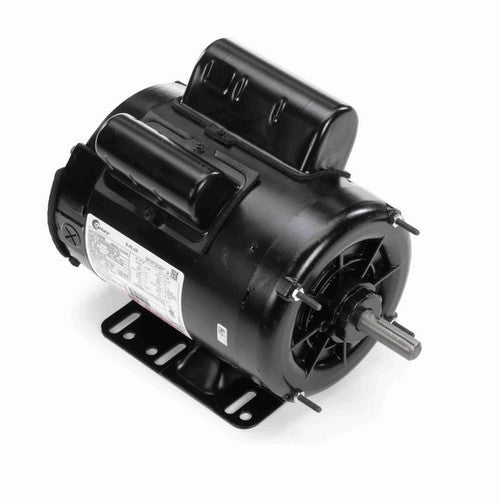

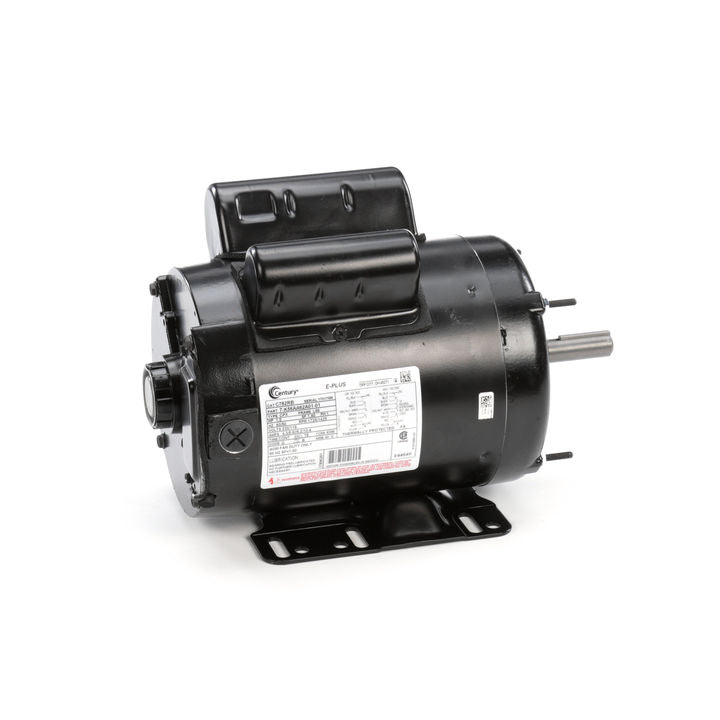

The Century Motors C782RB motor is designed for belt drive fans. This 1 HP motor features a removable base and operates at 230/115V. It has automatic reset thermal protection and double-shielded bearings to extend service life. Suitable for belted loads and farm buildings.
- UL recognized component listing and CSA certification ensures product safety.
- Double-shielded bearings extend the service life of the motor.
- Automatic reset thermal protector protects against overload.
Product Highlights
The C782RB motor is ideal for applications requiring a reliable and efficient motor. It is designed for continuous duty and has a reversible rotation.
Product Information
Standard Information
-
Brand: CENTURY MOTORS
-
Manufacturer Part Number: C782RB
-
Country of Origin: Mexico
Technical Specifications
-
MPN: C782RB
-
Brand: CENTURY MOTORS
-
Phase: 1
-
Output HP: 1.0 Hp
-
Output KW: 0.75 kW
-
Voltage: 230/115 V
-
Speed: 1725/1425 rpm
-
Service Factor: 1.4
-
Enclosure: Totally Enclosed Non Ventilated
-
Thermal Protection: Thermally Protected
-
Ambient Temperature: 40 °C
-
Frequency: 60/50 Hz
-
Current: 4.3/8.6/5.2/10.4 A
-
Duty: Continuous
-
Insulation Class: B
-
UL: Recognized
-
CSA: Y
-
CE: N
-
Number of Speeds: 1
-
Electrical Type: Capacitor Start, Capacitor Run, Low Starting Torque, Single Or Dual Voltage
-
Starting Method: Across The Line
-
Poles: 4
-
Rotation: Reversible Clockwise
-
Mounting: Removable Base
-
Drive End Bearing: Ball
-
Opp Drive End Bearing: Ball
-
Frame Material: Rolled Steel
-
Shaft Type: Keyed
-
Overall Length: 12.19 in
-
Frame Length: 6.25 in
-
Shaft Diameter: 0.625 in
-
Shaft Extension: 1.94 in
-
UPC: 786674057068
-
Packaged Length: 17.00 IN
-
Packaged Width: 11.00 IN
-
Packaged Height: 11.00 IN
-
HTC: 8501.40.6040
