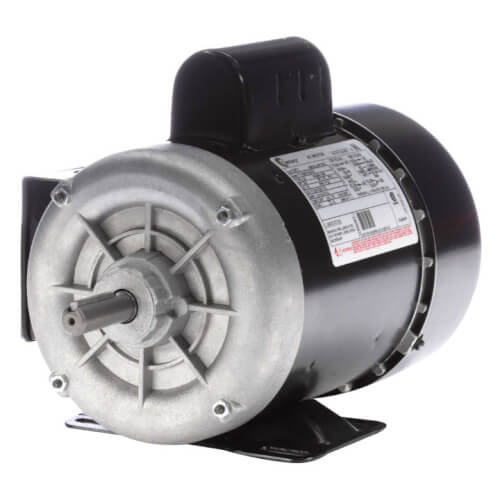

Century C671 3/4 HP 208-230/115v General Purpose Motor 1 PH 1800 RPM 56 Frame TEFC

Product Description

The Century C671 is a three-quarter horsepower general-purpose motor designed for a variety of HVAC applications. It operates at 208-230/115 volts and runs at 1800 RPM. This motor features a 56 frame size and a totally enclosed fan-cooled (TEFC) design for durability and efficiency.

• Continuous duty operation with single-phase design
• Compatibility with 208-230/115V supply voltage
• Equipped with thermal overload protection

Product Highlights

This motor is ideal for HVAC systems, pumps, and fans.

Product Information

Standard Information

• Brand: Century
• MPN: C671

Technical Specifications

• Horse Power: 3/4
• RPM: 1800
• Duty Cycle: Continuous
• Type: Single or Dual Voltage, Capacitor Start, Induction Run
• Frame: 56
• Voltage: 208-230/115V
• Amperage: 5.2, 10.4, 5.4
• Bearings: Ball
• Rotation: RCCW
• Enclosure Type: Totally Enclosed Fan-Cooled (TEFC)
• Max Ambient Temperature: 104°F
• Overload Protection: Thermally
• Shipping Dimensions: 12 inches x 12 inches x 15 inches
• Weight: 31.24 lbs
