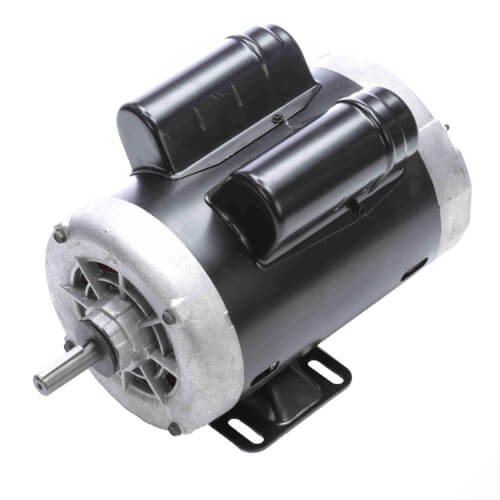

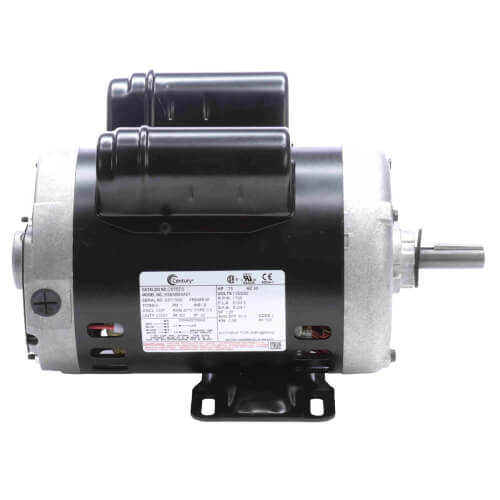

Century C655ES 75 HP 115/230v General Purpose Motor 1 PH 1800 RPM 56 Frame ODP

Product Description

The Century C655ES is a .75 HP General Purpose Motor designed for various HVAC applications. This motor operates on 115/230 volts and features a single-phase induction run. The open drip proof (ODP) design allows for effective cooling through an airflow system.

• .75 HP power
• 1800 RPM speed
• 56 Frame size

Product Highlights

This Century general purpose motor is compatible with multiple HVAC installations, offering a balance of power and efficiency. Suitable for continuous duty with ball bearings for smooth operation.

Product Information

Standard Information

• Brand: Century
• MPN: C655ES

Technical Specifications

• Horse Power: 3/4
• Voltage: 115/230V
• Phase: 1
• RPM: 1800
• Frame: 56
• Type: Capacitor Start, Induction Run
• Duty: Continuous
• Mount: Rigid Base
• Poles: 4
• Speeds: 1
• Bearings: Ball
• Rotation: CCWLE
• Enclosure Type: Open Drip Proof
• Insulation Class: B
• Diameter: 6-1/2 inches
• Max Ambient Temp: 104°F
• Amperage: 6, 3.3
• Overload Protection: None
• Hertz: 60
