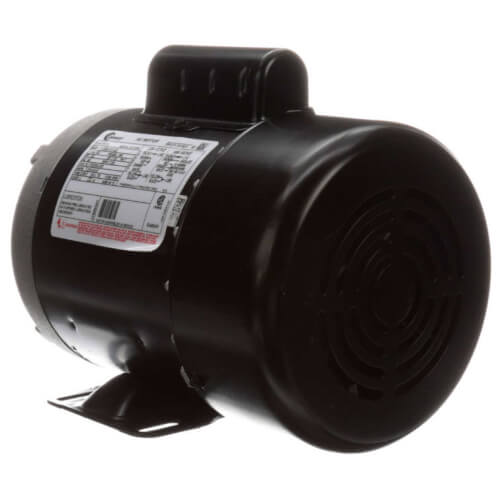

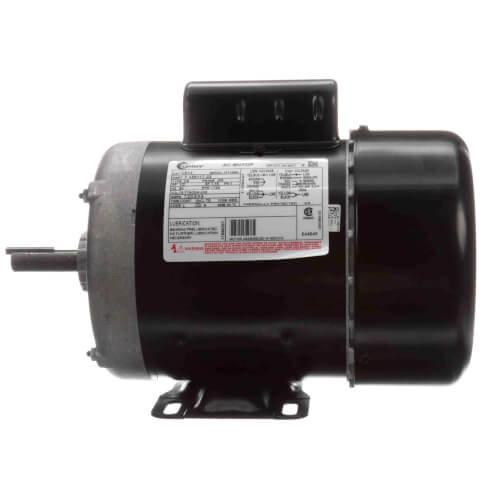

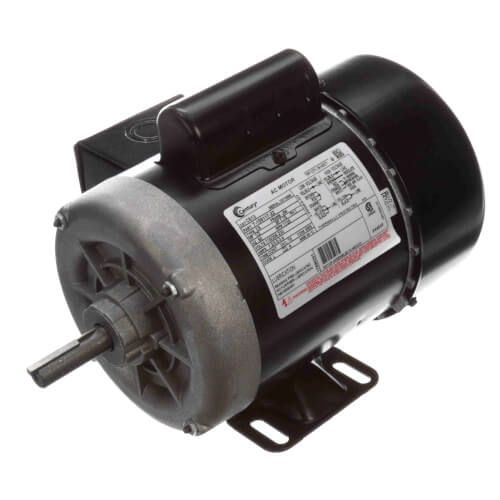

Century C613 1/2 HP 115/208-230v General Purpose Motor 1 PH 1800 RPM 56 Frame TEFC

Product Description

The Century C613 1/2 HP General Purpose Motor is designed for a wide range of HVAC applications. This single-phase motor runs at 1800 RPM with a 56 frame size and features a Totally Enclosed Fan-Cooled (TEFC) enclosure to protect against dust and moisture. It operates at multiple voltages including 115V, 208V, and 230V, making it versatile for various operations.

• 1/2 horsepower output
• Operates on 115/208-230 volts
• Suitable for continuous duty

Product Highlights

This motor is ideal for HVAC systems requiring a reliable and efficient single-phase motor. It features a capacitor start and induction run, ensuring smooth operation. With a ball bearing system and thermal overload protection, this motor is built to last.

Product Information

Standard Information

• Brand: Century
• MPN: C613

Technical Specifications

• RPM: 1725
• Duty: Continuous
• Type: Capacitor Start, Induction Run
• Frame: 56
• Hertz: 60
• Mount: Rigid Base
• Phase: 1
• Poles: 4
• Speeds: 1
• Voltage: 115/208-230v
• Amperage: 3.5, 3.6, 7.2
• Bearings: Ball
• Rotation: RCCW
• Horse Power: 1/2
• Enclosure Type: TEFC
• Insulation Class: A
• Overload Protection: Thermally
• Max Ambient Temp (°F): 104
• Diameter (Inches): 6-1/2
