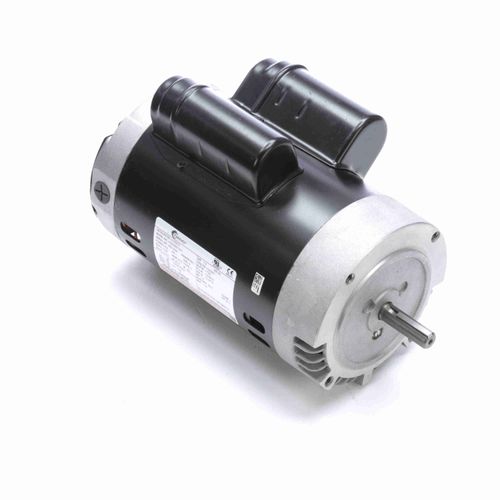

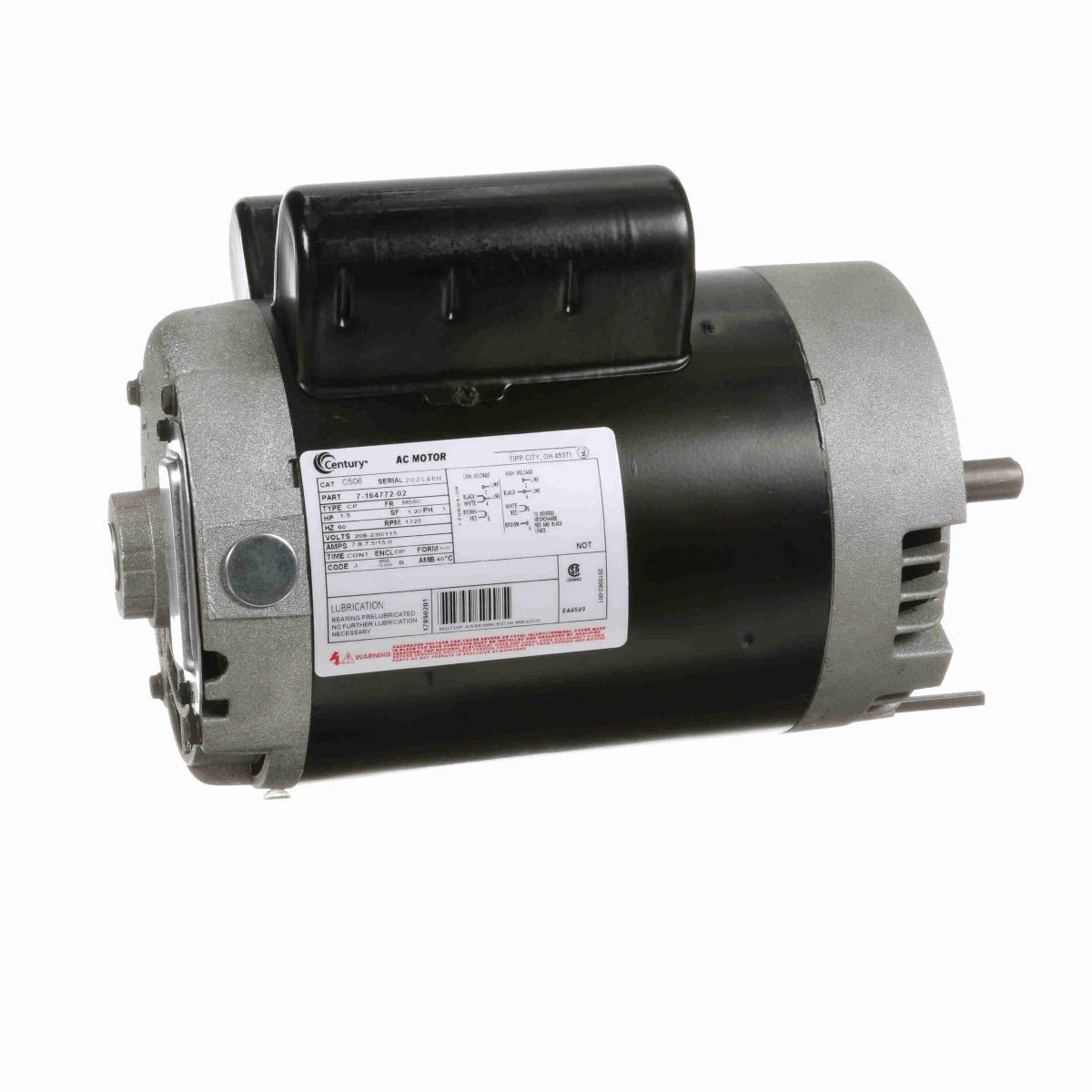

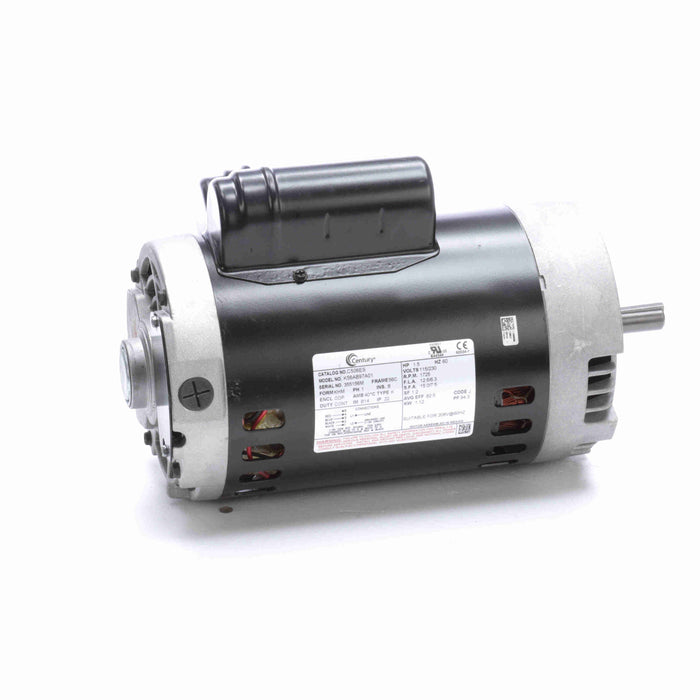

CENTURY MOTORS C506ES General Purpose Motor 1 1/2 HP

Product Description

The CENTURY MOTORS C506ES is a general-purpose motor with a power rating of one and a half horsepower. It operates at 115/230 volts and features a single-phase design.

• Capacitor start and capacitor run make it efficient.
• Constructed from durable rolled steel.
• Open drip proof enclosure protects the motor.

Product Highlights

This motor is suitable for various applications and is designed for reliability.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: C506ES

Technical Specifications

• Electrical Type: Capacitor Start Capacitor Run
• HP: 1 1/2
• RPM: 1725
• Frame: 56C
• Diameter: 6.5 inches
• Enclosure: Open Drip Proof
• Phase: 1
• Voltage: 115/230
• Rotation: Counterclockwise Lead End
• Material: Rolled Steel
• Bearings Type: Ball
• Mounting: Round
• Amperage: 12.6/6.3
• Shaft Type: Keyed
• Shaft Extension: 2.070 inches
• Shaft Diameter: 0.625 inches
• Output HP: 1.5 HP
• Efficiency: 82.5%
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• Service Factor: 1.2
• Overall Length: 13.69 inches
• Packaged Length: 16.00 inches
• Packaged Width: 8.00 inches
• Packaged Height: 10.00 inches
