Product Description

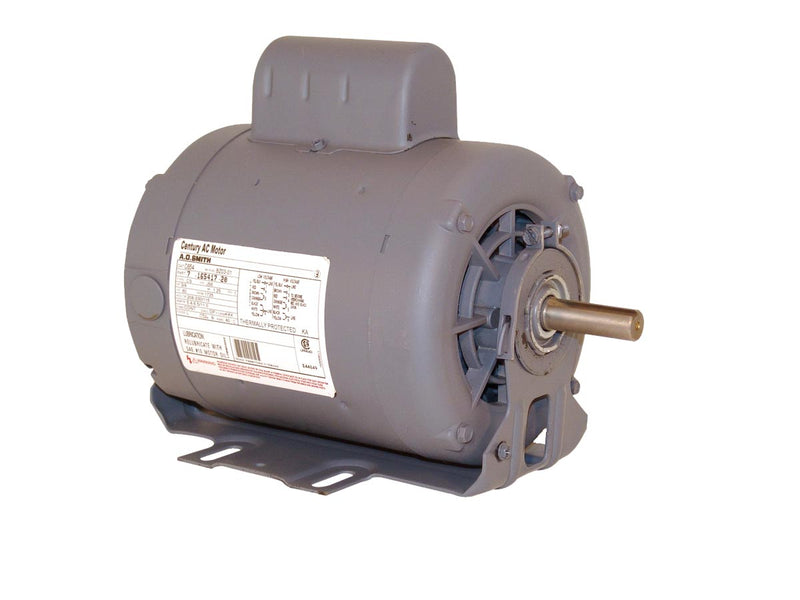

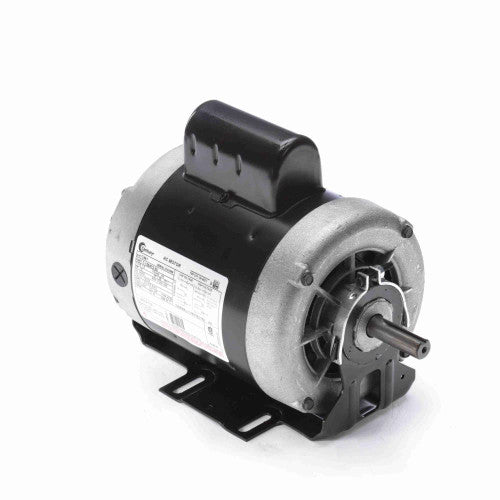

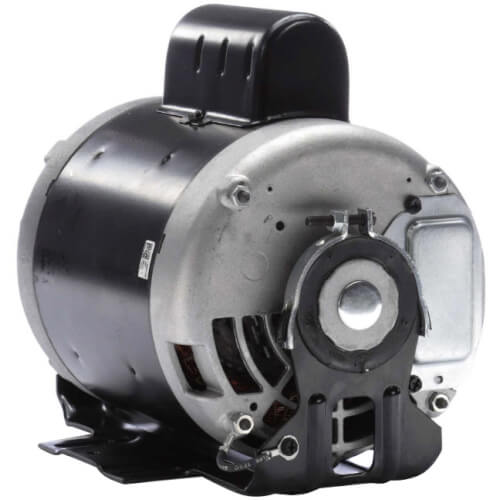

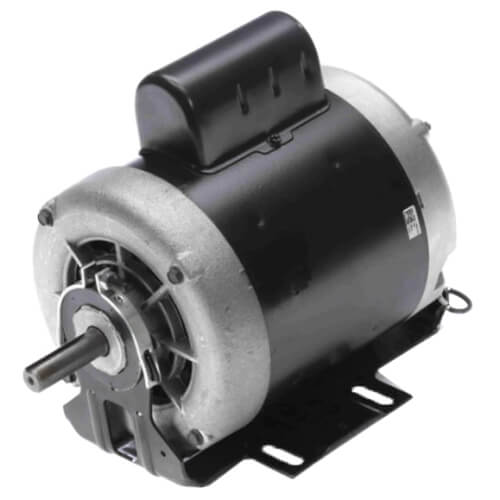

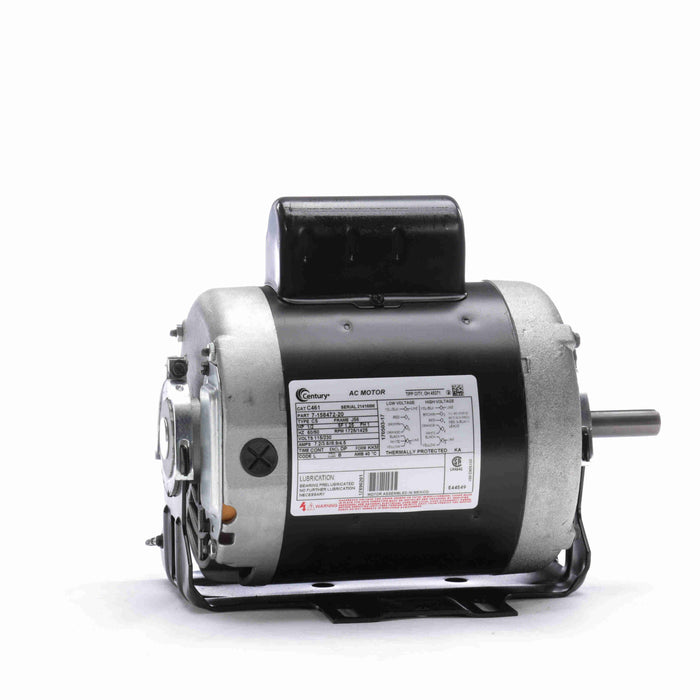

The CENTURY MOTORS C461 is designed for applications including compressors, pumps, conveyors, milking machines, blowers, and fans. It delivers 1/2 HP and operates at 1725 RPM with voltage options of 115/230V. This motor features robust construction and advanced specifications for reliability and efficiency.
- High starting torque
- Open construction
- Easy rotation change
Product Highlights
This motor is suitable for continuous duty applications and has a 1-year manufacturer warranty.
Product Information
Standard Information
-
Brand: CENTURY MOTORS
-
Manufacturer Part Number: C461
Technical Specifications
-
Motor: Capacitor Start
-
Horse Power: 1/2 hp
-
Voltage: 115/230 Volts
-
Duty: Continuous Duty
-
Mount: Cushion Base
-
RPM: 1725
-
Poles: 4
-
Rotation: Reversible
-
Phase: 1
-
Hertz: 60
-
Enclosure Type: Drip Proof
-
Frame: 56
-
Speeds: 1
-
Amperage: 7.2/3.6-8.9/4.5
-
Insulation Class: B
-
Overload Protection: Automatic
-
Service Factor: 1.25
-
Bearings: Ball Bearings
-
Frequency: 60/50hz
-
Base: Resilient Cradle Base
-
Shaft Size: 5/8" x 1 7/8"
-
Shaft Height: 3.5"
-
Enclosure: DP
-
Mounting Method: Cushion
-
Shaft Diameter: 5/8" Keyed
-
Product Type: Capacitor Start
-
Hz: 50/60
-
Mounting: Cradle
-
Motor Diameter: 6-1/2"
-
Shaft Length: 1-7/8"
-
Thermal Protection: Automatic
-
Maximum Ambient Temperature: 40
C
-
Duty Cycle: Continuous
-
Capacitor: Included
-
Model: C461
-
Load Amps: 7.2/3.6
-
Material: Rolled steel
-
Nameplate RPM: 1725
-
CW/CCW: Rotation
-
Shaft Type: Key
-
Shaft Number: 1
-
"C" Dim: 11.1
-
Protection: Auto
-
Cooling: Ambient
