Century Motors C445ES General Purpose Motor, 1 HP, 1725 RPM REPLACEMENT G256B

Product Description

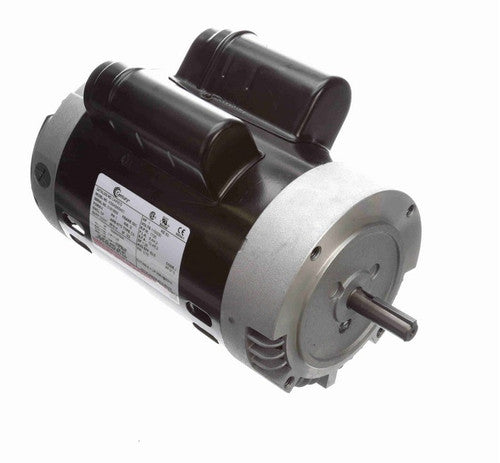

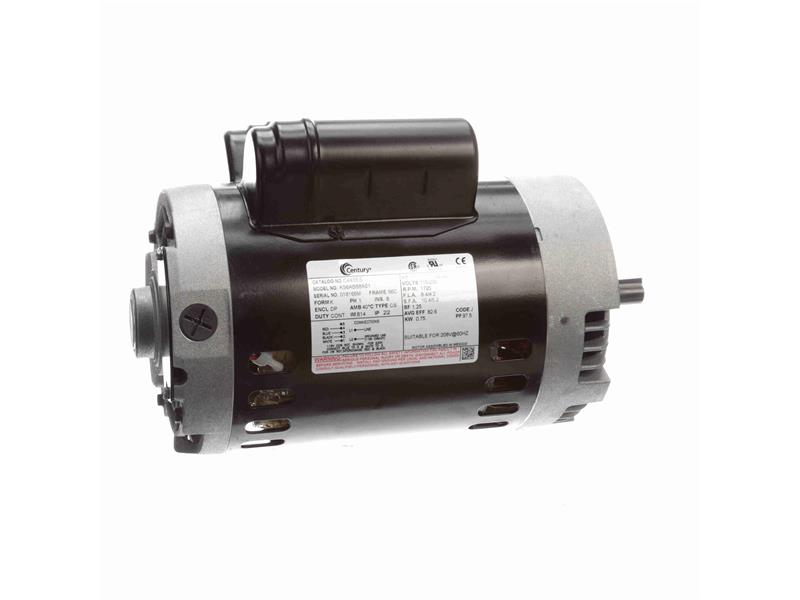

The CENTURY MOTORS C445ES is a general purpose motor with capacitor start. This motor delivers 1 HP and operates at 1725 RPM with a voltage of 115/230V. It features an open dripproof enclosure and a 56C frame. Suitable for various applications requiring a single phase electric motor with a C-face mount.

• Operates at 115/208-230V
• Delivers 1 HP at 1725 RPM
• Features a reversible rotation

Product Highlights

This general purpose motor is designed for durability with rolled steel construction and includes ball bearings for extended life. UL recognized and CSA certified.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: C445ES
• Country of Origin: Mexico

Technical Specifications

• Product Type: Motor
• Frame: 56C
• Horse Power: 1 hp
• Voltage: 115/230 V
• Bearings: Ball
• Rotation: Reversible
• Insulation Class: B
• RPM: 1725 rpm
• Enclosure Type: Open Drip Proof
• Phase: 1
• Output HP: 1 Hp
• Output KW: 0.75 kW
• Service Factor: 1.25
• Thermal Protection: No Protection
• Efficiency: 82.6 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 8.4/4.2 A
• Duty: Continuous
• UL: Recognized
• CSA: Y
• Number of Speeds: 1
• Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage
• Starting Method: Across The Line
• Poles: 4
• Mounting: Round
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 13.08 in
• Frame Length: 7.25 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 2.06 in
• Packaged Length: 15.38 IN
• Packaged Width: 10.31 IN
• Packaged Height: 9.81 IN
• Motor Type: Capacitor Start - Induction Run
• NEMA Frame: 56C Rolled Steel frame
• Base: Rigid Base
• Hertz: 60 Hz
