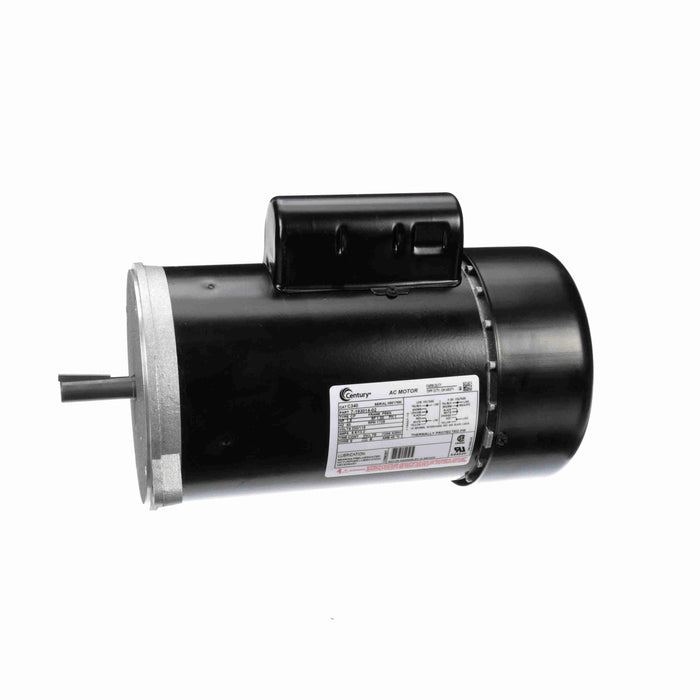

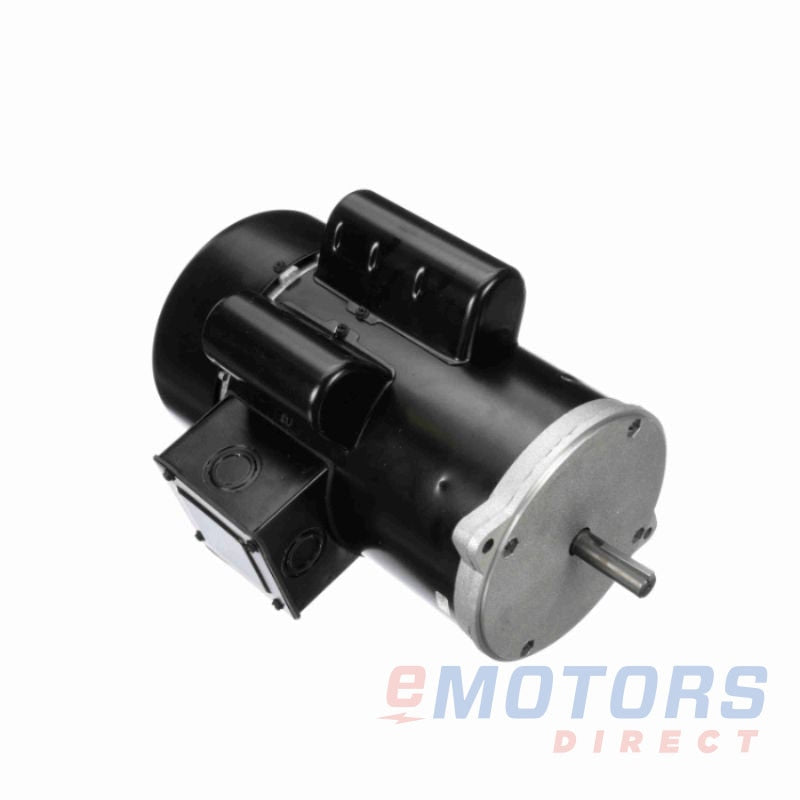

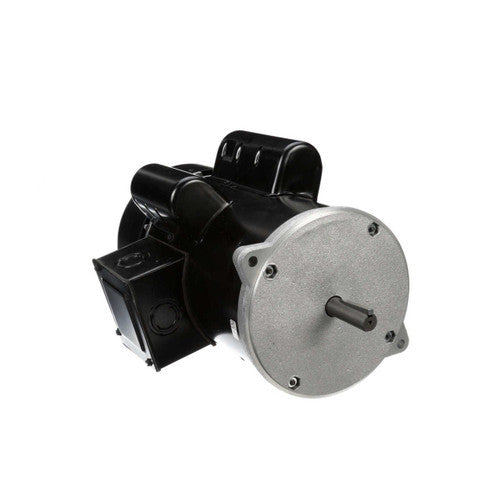

CENTURY MOTORS C340 1.5 HP Single-Phase Motor

Product Description

The CENTURY MOTORS C340 is a single-phase auger drive motor. It features a capacitor start and capacitor run design, suitable for direct drive poultry and swine feeding systems. This motor includes a torque switch and governor, which makes it ideal for continuous duty applications. The motor is reversible and comes with thermal protection. Equipped with ball bearings and Class B insulation, it ensures reliable operation under various conditions.

• Rated for 1.5 HP at either 1725 or 1800 RPM
• Operates on 115V or 230V at 60 Hz
• TEFC (Totally Enclosed Fan Cooled) enclosure for better efficiency

Product Highlights

The C340 motor is engineered for durable performance in demanding environments.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: C340

Technical Specifications

• Rated Motor Output Power: 1.5 HP
• Output Power (kW): 1.125 kW
• Rated Motor Speed: 1725 RPM
• Input Voltage: 115/230 V
• Rated Motor Current: 13.2/6.6 AMP
• Phase: 1
• Number of Poles: 4
• Frequency: 60 Hz
• Frame Size: P56N
• Enclosure Type: TEFC
• Weight: 45 lb
• Shaft Diameter: 0.625 in
• Shaft Length: 2.10 in
